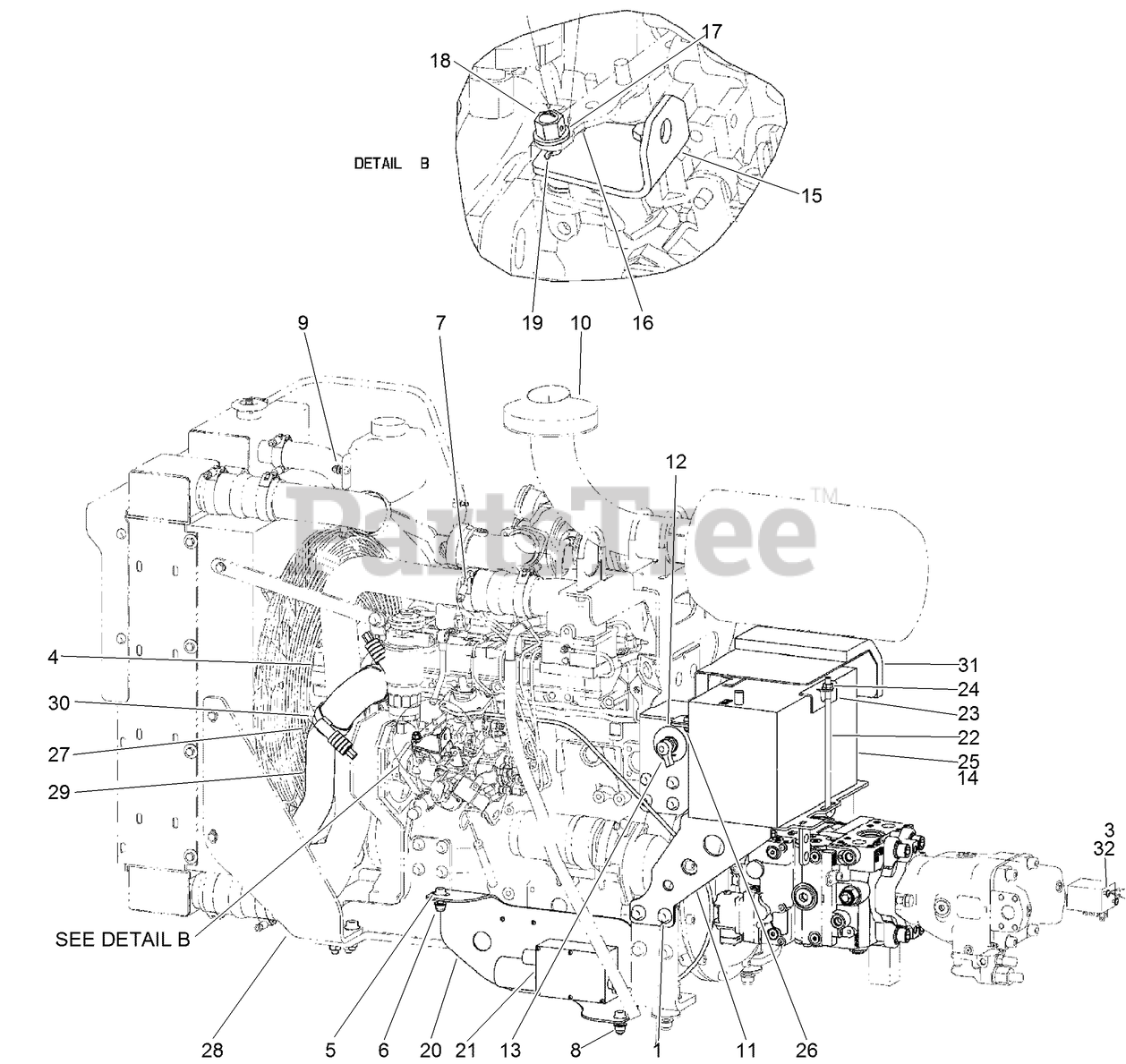

DD 2024 - Toro EarthPro Directional Drill (2007) ENGINE THROTTLE AND BATTERY ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490151 AND LATER Parts Diagram

EarthPro Directional Drill

ENGINE THROTTLE AND BATTERY ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490151 AND LATER Parts Diagram

  • Title

Toro AU114239

ENGINE GROUP ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0

2

Toro AU100877

SCREW-HH

Note: Not illustrated

$18.99

$

Usually ships in 3-6 days

0

3

Toro AU470-11012

SCREW - PHd Sltd # 10-24 x 0.75 CST ZND

$2.49

$

Usually ships in 3-6 days

0

4

Toro AU100330

SCREW-FLANGE, METRIC

$

$

Currently unavailable

5

$3.49

$

In Stock, Qty 7

0

$

$

Not available

7

Toro AU829-1310

NUT - M10, Class 10, PHC

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

9

Toro AU119672

HOSE - Upper Radiator

$

$

Currently unavailable

10

Toro AU121439

TUBE-EXHAUST (W/ SEAL PLATE)

$

$

Currently unavailable

11

Toro AU119455

ASSEMBLY - Battery Mount
(Superseded to AU119455-03)

$

$

Not available

12

Toro AU8EP02902

FACEPLATE-BATTERY, ON/OFF

$

$

Currently unavailable

13

Toro AU8EP02901

SWITCH-BATTERY (1000 AMP)

$

$

Currently unavailable

14

Toro AU125609

BATTERY (purchase locally)

Note: Obtain locally.

$

$

Currently unavailable

15

Toro AU12GB3042

BRACKET - Throttle
(Superseded to AU12GB3042-03)

$

$

Not available

16

Toro AU86977726

BOLT - Thd to Hd M6 x 12 GR8 ZND

$

$

Not available

17

Toro AU495-11028

WASHER-FLAT

$

$

Not available

18

Toro AU8EE30101-1

NUT - Cable Retaining
(Superseded to 125-4534)

$

$

Not available

19

Toro AU432-416

PIN - Cotter .062 x 1.00 in ZN
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

20

Toro AU114513

BRACKET - Throttle
(Superseded to AU114513-03)

$

$

Not available

21

Toro AU6EE30101

ACTUATOR-THROTTLE

$

$

Currently unavailable

22

Toro AUH436311

BOLT-HOLDDOWN, BATTERY

$41.99

$

Usually ships in 3-6 days

0

23

Toro AUD125079

ANGLE-HOLDDOWN, BATTERY

$32.99

$

Usually ships in 3-6 days

0

24

Toro AU231-5146

NUT-Serr Flg 3/8-16 UNC GR5 ZND
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

25

Toro AU121528

BATTERY - Cover

$

$

Currently unavailable

26

Toro AU100869

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

27

Toro AUP105529

ELBOW - Rubber, 2 Dia

$

$

Currently unavailable

28

Toro AU119806

HOSE-CONNECTING

$

$

Currently unavailable

29

Toro AU121901

TUBE - Lower Radiator

$

$

Currently unavailable

30

Toro AU110569

CLAMP-TORQUE, CONSTANT

$28.99

$

Usually ships in 3-6 days

0

31

Toro AU122242

SHIELD-HEAT

$

$

Currently unavailable

32

Toro AU495-31020

WASHER - 0.203 x 0.469 x 0.049 in CST ZND
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0
