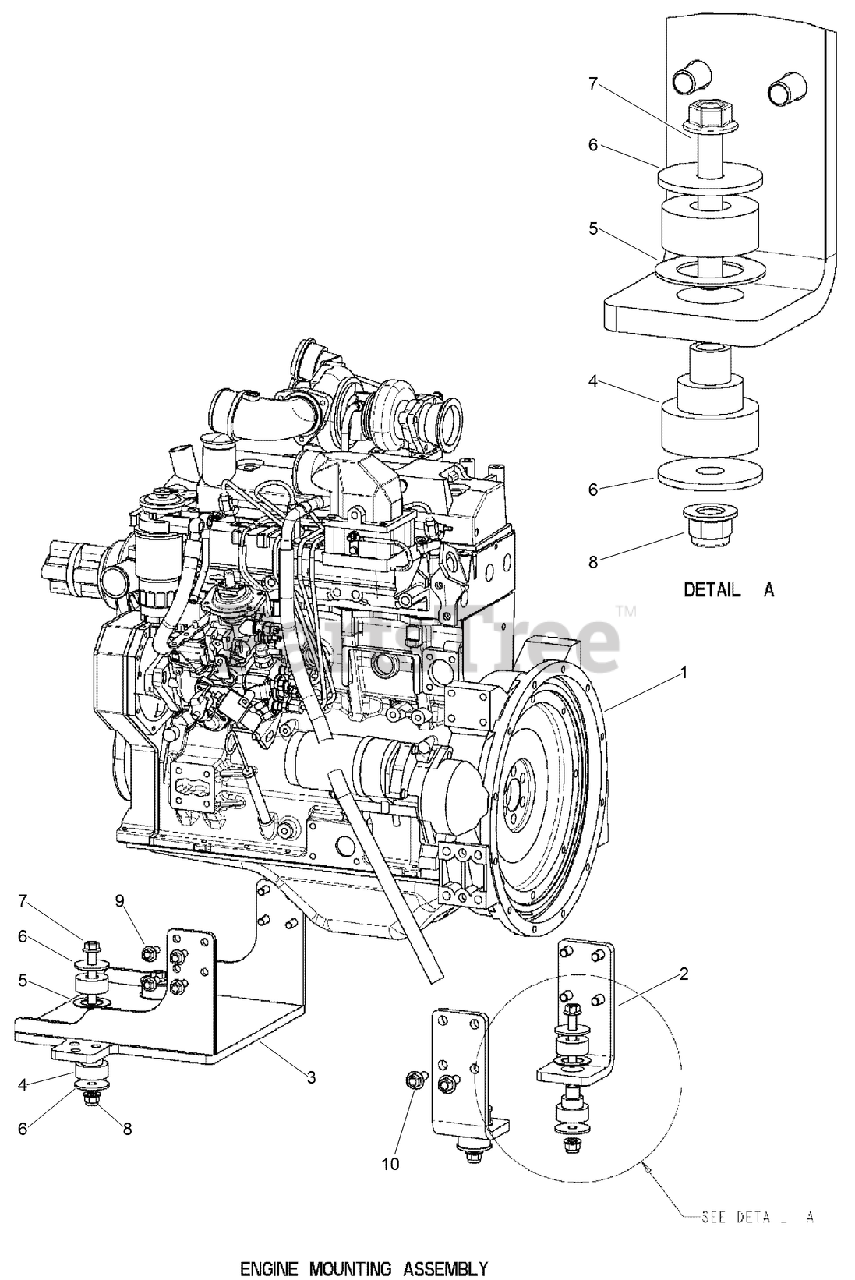

DD 2024 - Toro EarthPro Directional Drill (2007) ENGINE MOUNTING ONLY MACHINES WITH SERIAL NUMBERS DD202490145, DD202490146, DD202490148 THRU DD202490150 Parts Diagram

EarthPro Directional Drill

ENGINE MOUNTING ONLY MACHINES WITH SERIAL NUMBERS DD202490145, DD202490146, DD202490148 THRU DD202490150 Parts Diagram

  • Title

Toro AU114239

ENGINE GROUP ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU114349

ENGINE - Cummings D783007CX03 B3.3, 85 HP Tier 3

$

$

Currently unavailable

2

Toro AU12GB3114

MOUNT - Engine, Rear
(Superseded to AU12GB3114-03)

$

$

Not available

3

Toro AU114801

ASSEMBLY - Engine/Radiator Mount
(Superseded to AU114801-03)

$

$

Not available

4

Toro AU8NG28121

ISOLATOR-MOUNTING, UNIVERSAL

$

$

Currently unavailable

5

Toro AU113262

SPACER-ISOLATOR

$

$

Currently unavailable

6

Toro AU496-81018

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

7

Toro AU100353

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

8

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

9

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

10

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0
