DD 2024 - Toro EarthPro Directional Drill (2007) ENGINE BATTERY ASSEMBLY MACHINE SERIAL MUBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

EarthPro Directional Drill

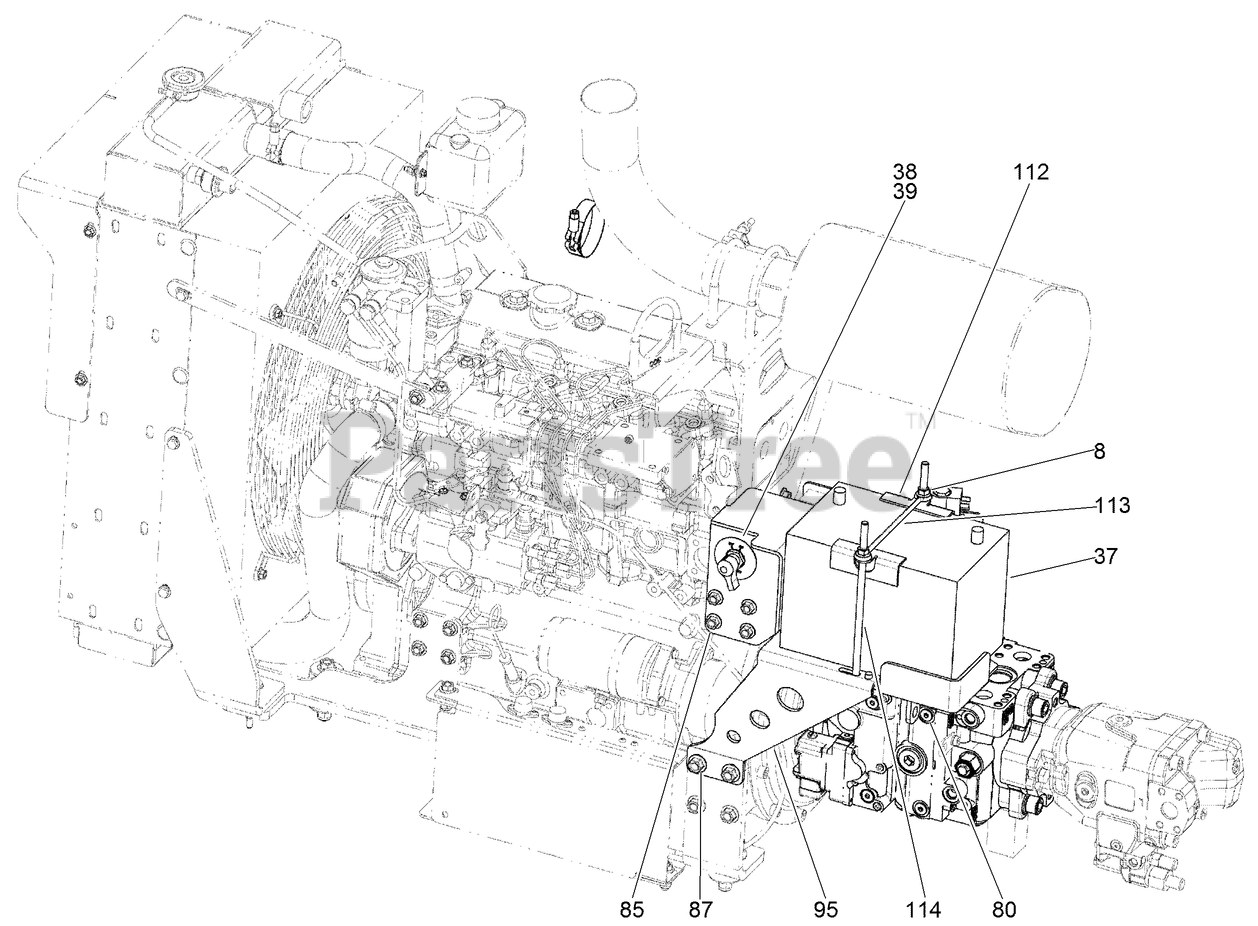

ENGINE BATTERY ASSEMBLY MACHINE SERIAL MUBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

  • Title

Toro AU20GB3000

ASSEMBLY - Engine

Note: Not illustrated

$

$

Currently unavailable

8

Toro AU231-5146

NUT-Serr Flg 3/8-16 UNC GR5 ZND
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

37

Toro AU8EP01105

BATTERY - 12VDC (obtain from local dealer)

$

$

Currently unavailable

38

Toro AU8EP02901

SWITCH-BATTERY (1000 AMP)

$

$

Currently unavailable

39

Toro AU8EP02902

FACEPLATE-BATTERY, ON/OFF

$

$

Currently unavailable

80

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

85

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

87

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0

95

Toro AU110454

ASSEMBLY - Battery Mount

$

$

Currently unavailable

112

Toro AUD125079

ANGLE-HOLDDOWN, BATTERY

$32.99

$

Usually ships in 3-6 days

0

113

Toro AUD135073

BRACKET-HOLDDOWN, BATTERY

$60.99

$

Usually ships in 3-6 days

0

114

Toro AUH436311

BOLT-HOLDDOWN, BATTERY

$41.99

$

Usually ships in 3-6 days

0
