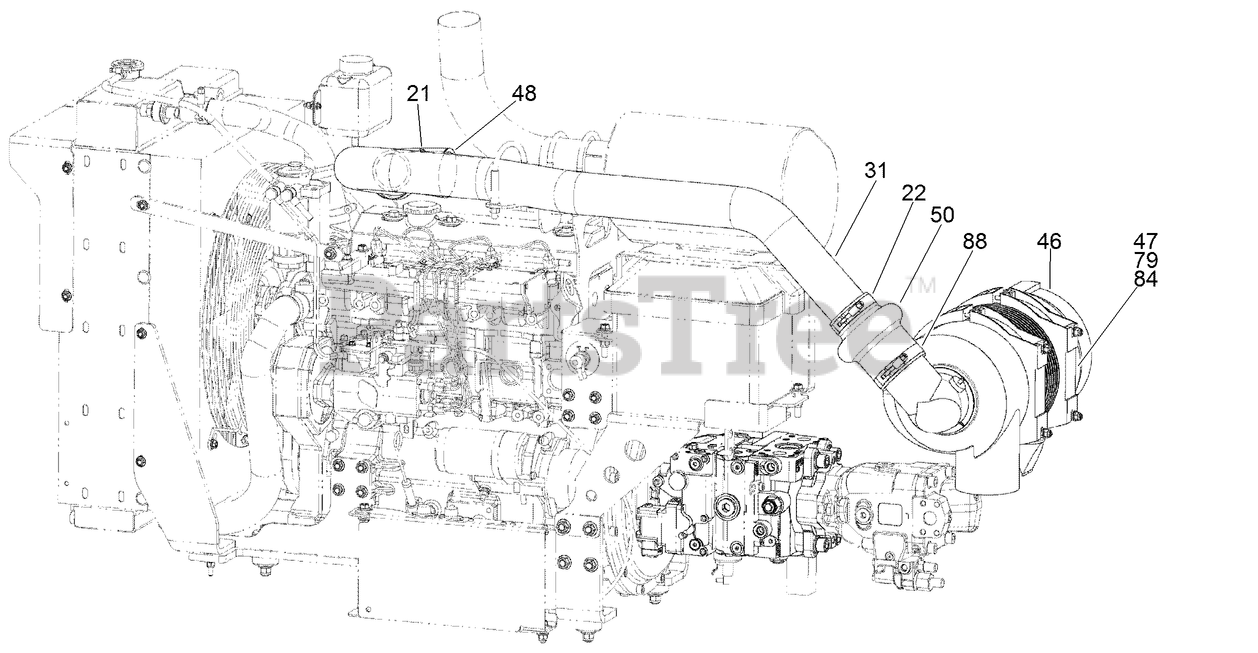

DD 2024 - Toro EarthPro Directional Drill (2007) ENGINE AIR CLEANER ASSEMBLY MACHINE SERIAL NUMBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

EarthPro Directional Drill

ENGINE AIR CLEANER ASSEMBLY MACHINE SERIAL NUMBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

  • Title

Toro AU20GB3000

ASSEMBLY - Engine

Note: Not illustrated

$

$

Currently unavailable

21

Toro AU21001237

CLAMP - Constant Torque

$

$

Not available

22

Toro AU21001371

CLAMP - TBolt, Spring Load Min 3.38 Max 3.69

$

$

Not available

31

Toro AU20GB3020

TUBE - Air Intake

$

$

Currently unavailable

46

Toro AU8NG10018-03

ASM-Air Cleaner

$

$

Currently unavailable

47

Toro AU8NG10018-07

MOUNT-Air Cleaner
(Superseded to 112-7340)

$109.99

$

Usually ships in 3-6 days

0

48

Toro AU8NG10019-05

RUBBER HOSE REDUCER

$

$

Currently unavailable

50

Toro AU8NG10019-09

REDUCER-HOSE

$

$

Currently unavailable

79

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

84

Toro AU100874

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

88

Toro AU101639

CLAMP - TBolt, Min 95.3 Max 103.2

$

$

Currently unavailable
