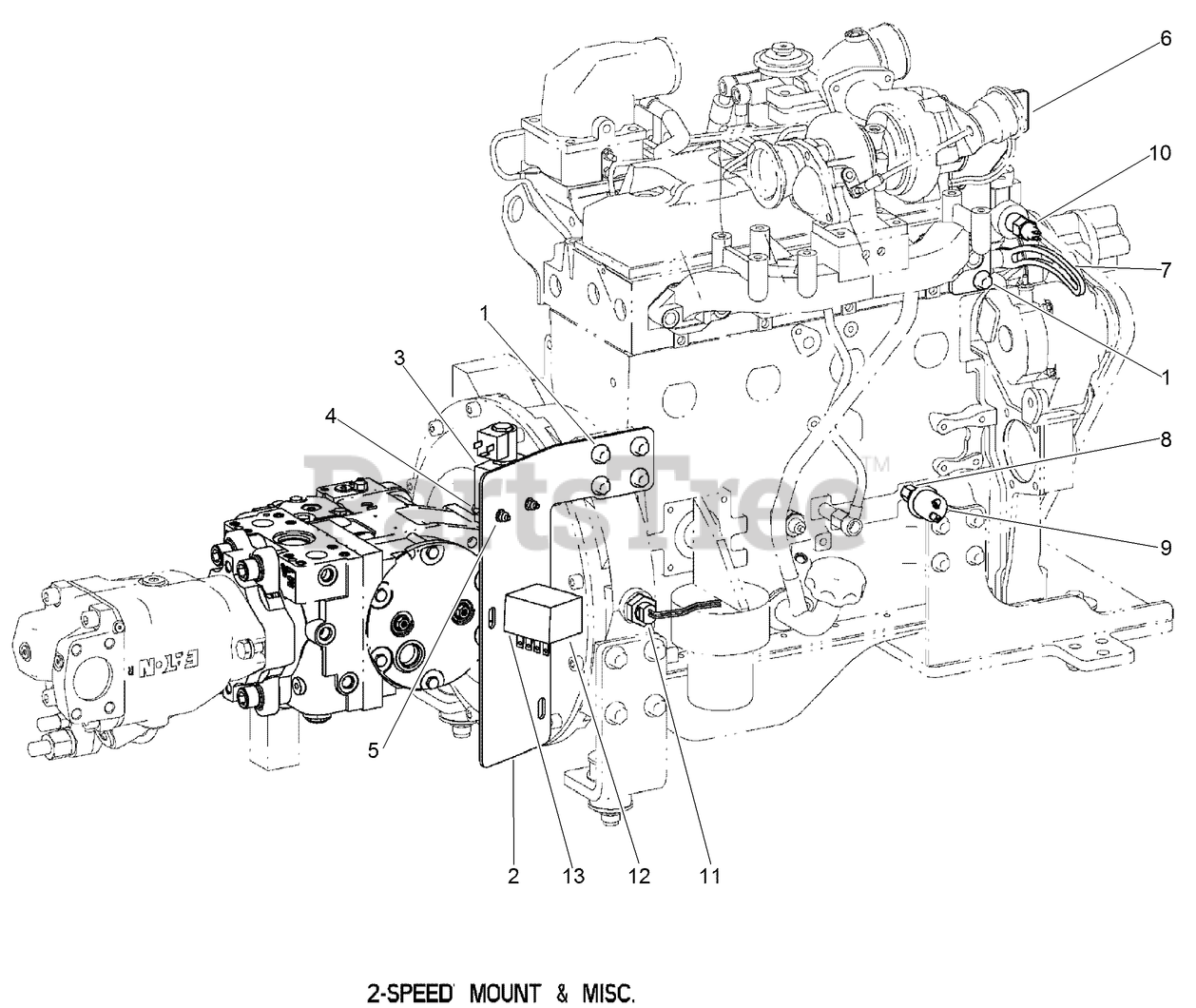

DD 2024 - Toro EarthPro Directional Drill (2007) ENGINE 2-SPEED AND MISC ASSEMBLIES ONLY MACHINES WTIH SERIAL NUMBERS DD202490145, DD202490106, DD2002490148 THRU DD202490150 Parts Diagram

EarthPro Directional Drill

ENGINE 2-SPEED AND MISC ASSEMBLIES ONLY MACHINES WTIH SERIAL NUMBERS DD202490145, DD202490106, DD2002490148 THRU DD202490150 Parts Diagram

  • Title

Toro AU114239

ENGINE GROUP ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

2

Toro AU12GB3061

MOUNT - Cold Start

$

$

Currently unavailable

3

Toro AU8HV80118

VALVE - Dir, Cart, 3W2P, SOL, 12VDC

$

$

Currently unavailable

4

Toro AU100314

SCREW, METRIC FLANGE w/BODY - M6 x 45

$2.49

$

Usually ships in 3-6 days

0

5

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

6

Toro AU110823

PLATE-HOIST POINT

$

$

Currently unavailable

7

Toro AU8NG10019-51

BRACKET-Alternator

$

$

Currently unavailable

8

Toro AU8PB80202

ADAPTER - Pipe

$

$

Currently unavailable

9

Toro AU8NG10019-28

SENSOR-PRESSURE, OIL

$

$

Currently unavailable

10

Toro AU8NG10019-29

SENSOR-COOLANT

$

$

Currently unavailable

11

Toro AU8NG10019-30

SENSOR-RPM, MAG PICKUP

$

$

Currently unavailable

12

Toro AU8NG10019-35

RELAY-CONTROL, ENGINE

$

$

Currently unavailable

13

Toro AU440-1108

SCREW - PHd Type 1 #10 - 24 x .500 CST ZND

$0.99

$

Usually ships in 3-6 days

0
