DD 2024 - Toro EarthPro Directional Drill (2007) ENGINE 2-SPEED AND MISC ASSEMBLIES ONLY MACHINES WITH SERIAL NUMBERS DD202490151 Parts Diagram

EarthPro Directional Drill

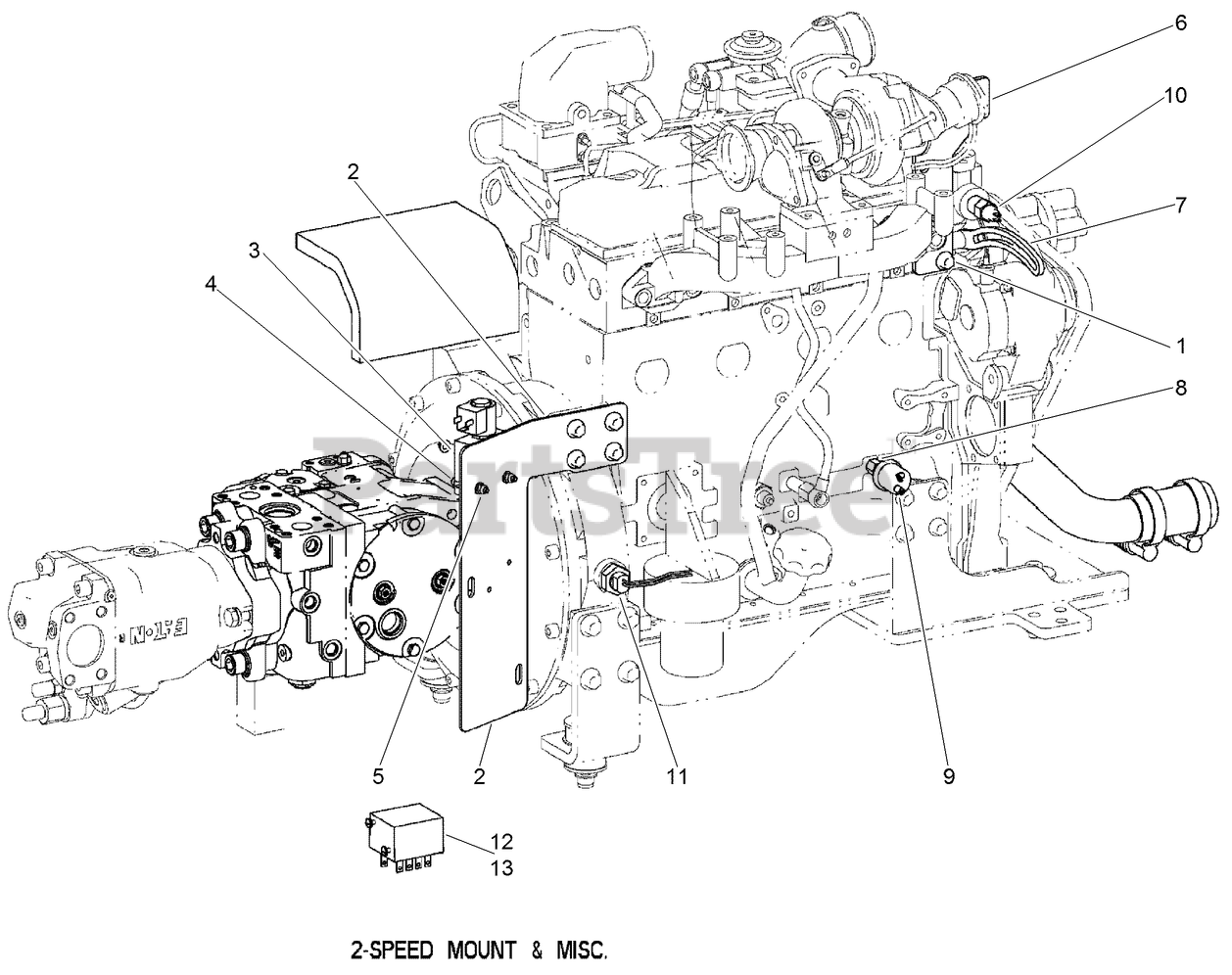

ENGINE 2-SPEED AND MISC ASSEMBLIES ONLY MACHINES WITH SERIAL NUMBERS DD202490151 Parts Diagram

  • Title

Toro AU114239

ENGINE GROUP ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

2

Toro AU12GB3061

MOUNT - Cold Start

$

$

Currently unavailable

3

Toro AU8HV80118

VALVE - Dir, Cart, 3W2P, SOL, 12VDC

$

$

Currently unavailable

4

Toro AU100314

SCREW, METRIC FLANGE w/BODY - M6 x 45

$2.49

$

Usually ships in 3-6 days

0

5

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

6

Toro AU110823

PLATE-HOIST POINT

$

$

Currently unavailable

7

Toro AU8NG10019-51

BRACKET-Alternator

$

$

Currently unavailable

8

Toro AU8PB80202

ADAPTER - Pipe

$

$

Currently unavailable

9

Toro AU8NG10019-28

SENSOR-PRESSURE, OIL

$

$

Currently unavailable

10

Toro AU8NG10019-29

SENSOR-COOLANT

$

$

Currently unavailable

11

Toro AU8NG10019-30

SENSOR-RPM, MAG PICKUP

$

$

Currently unavailable

12

Toro AU8NG10019-35

RELAY-CONTROL, ENGINE

$

$

Currently unavailable

13

Toro AU470-11012

SCREW - PHd Sltd # 10-24 x 0.75 CST ZND

$2.49

$

Usually ships in 3-6 days

0

14

Toro AUP105529

ELBOW - Rubber, 2 Dia

Note: Not illustrated

$

$

Currently unavailable

15

Toro AU119806

HOSE-CONNECTING

Note: Not illustrated

$

$

Currently unavailable

16

Toro AU121901

TUBE - Lower Radiator

Note: Not illustrated

$

$

Currently unavailable

17

Toro AU110569

CLAMP-TORQUE, CONSTANT

Note: Not illustrated

$28.99

$

Usually ships in 3-6 days

0

18

Toro AU122242

SHIELD-HEAT

Note: Not illustrated

$

$

Currently unavailable

19

Toro AU495-31020

WASHER - 0.203 x 0.469 x 0.049 in CST ZND
(Superseded to 3256-14)

Note: Not illustrated

$0.99

$

In Stock, Qty 20+

0
