DD 2024 - Toro EarthPro Directional Drill (2007) ELECTRICAL GROUP MACHINES WITH SERIAL NUMBERS DD202490150 AND LATER Parts Diagram

EarthPro Directional Drill

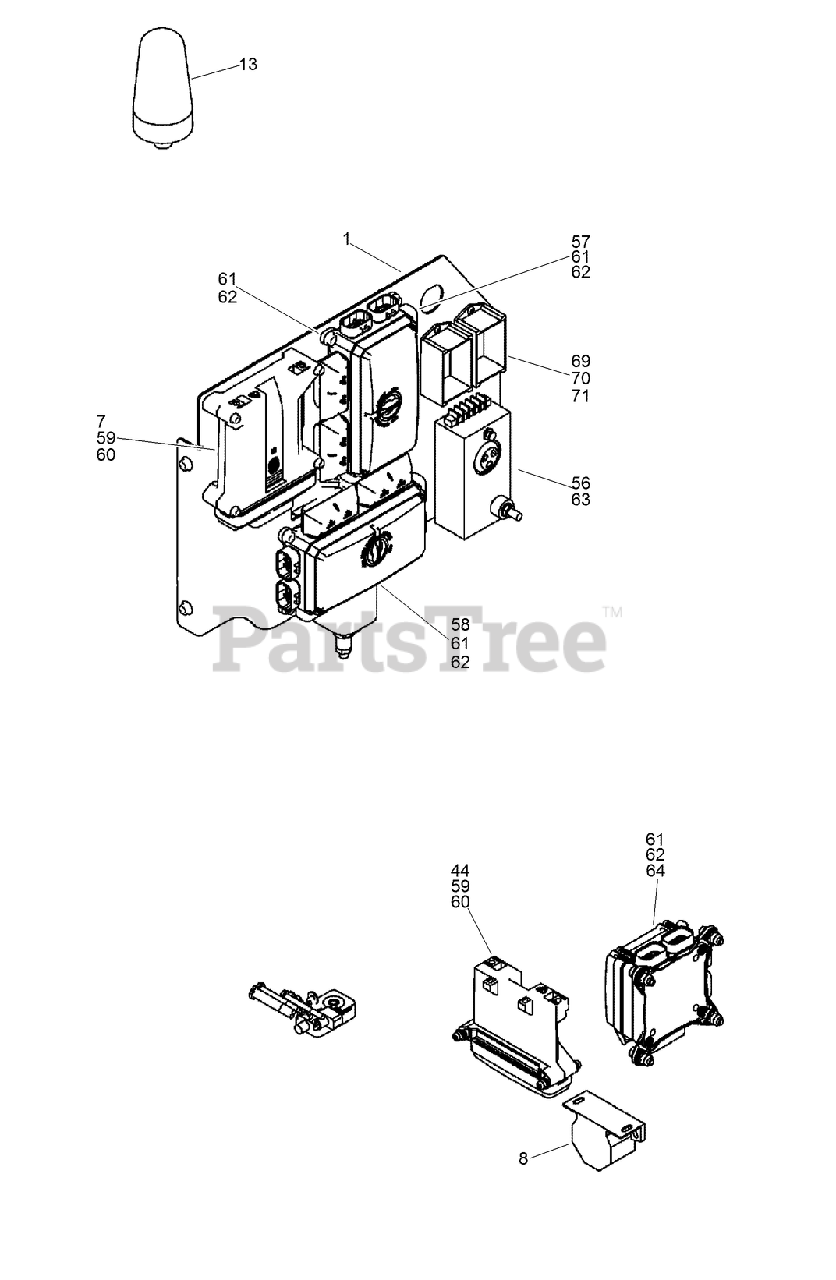

ELECTRICAL GROUP MACHINES WITH SERIAL NUMBERS DD202490150 AND LATER Parts Diagram

  • Title

Toro AU114274

ASSEMBLY - Electrical Group

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU114340

PLATE - Mounting, Electrical

$

$

Currently unavailable

2

Toro AU114997

SCHEMATIC - Electrical

Note: Not illustrated

$

$

Currently unavailable

3

Toro AU32GB9810

PENDANT - Travel
(Superseded to 125-1629)

Note: Not illustrated

$

$

Not available

4

Toro AU32GB9820

CONTROL - Life Jacket

Note: Not illustrated

$

$

Currently unavailable

5

Toro AU114978

HARNESS - Main

Note: Not illustrated

$

$

Currently unavailable

6

Toro AU114972

HARNESS - Seat Electrical

Note: Not illustrated

$

$

Currently unavailable

7

Toro AU114998

CONTROLLER - Programmed Module B (Electrical Box Area)

$

$

Currently unavailable

8

Toro AU8EP29105

ALARM-BACKUP

$

$

Currently unavailable

10

Toro AU114808

DISPLAY - Programmed

Note: Not illustrated

$

$

Currently unavailable

11

Toro AU109242

ASSEMBLY - Ground Stake

Note: Not illustrated

$

$

Not available

12

Toro AU8EE27104

TESTER-ZAPALERT

Note: Not illustrated

$

$

Currently unavailable

9

Toro AU8EP47613

JOYSTICK-CARRIAGE

Note: Not illustrated

$

$

Currently unavailable

13

Toro AU6EE27201-01

ASSEMBLY - Strobe, Small
(Superseded to 125-4528)

$

$

Not available

14

Toro AU8EP46103

BUTTON-PUSH, RED MUSHROOM

Note: Not illustrated

$

$

Currently unavailable

15

Toro AU8EO61005

SWITCH - Pushbutton, Ether
(Superseded to AU30-1608-1005)

Note: Not illustrated

$

$

Not available

16

Toro AU8EP78221

TRANSDUCER - 5300 PSI, 7/16 - 20 SAE
(Superseded to 127-0895)

Note: Not illustrated

$1191.99

$

Usually ships in 3-6 days

0

17

Toro AU8EP78222

TRANSDUCER - 3300 PSI, 7/16 - 20 SAE
(Superseded to 127-0894)

Note: Not illustrated

$1191.99

$

Usually ships in 3-6 days

0

18

Toro AU6EP02720

ASSEMBLY - Flood Light, 12 VDC, Oval

Note: Not illustrated

$

$

Currently unavailable

19

Toro AU8MS31444

SCREW - Machine, Slotted Pan Head

Note: Not illustrated

$

$

Currently unavailable

20

Toro AU8FW31003

WASHER - Flat, #8, 303 Stainless

Note: Not illustrated

$

$

Currently unavailable

21

Toro AU8LW60095

WASHER - Lock, Split Type, #8

Note: Not illustrated

$

$

Currently unavailable

22

Toro AU8HN32003

NUT - Hex #8 - 32, 303 Stainless

Note: Not illustrated

$

$

Currently unavailable

23

Toro AU8EO21403

LENS-DOME, FLUTED GREEN (TYPE T2)

Note: Not illustrated

$

$

Currently unavailable

24

Toro AU8EO21406

LENS-DOME, FLUTED AMBER (TYPE T2)

Note: Not illustrated

$

$

Currently unavailable

25

Toro AU8EO21402

LENS-DOME, FLUTED RED (TYPE T-2)

Note: Not illustrated

$

$

Currently unavailable

26

Toro AU8EO21401

TYPE T-2 SOCKET ASM

Note: Not illustrated

$

$

Currently unavailable

27

Toro AU8EO91101

BULB-TYPE T-2, 12VOLT

Note: Not illustrated

$

$

Currently unavailable

28

Toro AU8EP02206

TERMINAL - Battery, Straight, Pos, 1/0

Note: Not illustrated

$

$

Currently unavailable

29

Toro AU8EP02207

TERMINAL - Battery, Straight, Neg, 1/0

Note: Not illustrated

$

$

Currently unavailable

30

Toro AU8ET20005

LUG - 1/0, Crimp, Copper, 13/32 Hole

Note: Not illustrated

$

$

Currently unavailable

31

Toro AU8ET65001

DISCONNECT

Note: Not illustrated

$

$

Currently unavailable

32

Toro AU8ET35401

TERM RING - Nylon

Note: Not illustrated

$

$

Currently unavailable

33

Toro AU8ET35701

TERM RING - Nylon

Note: Not illustrated

$

$

Currently unavailable

34

Toro AU8EP65159

SWITCH-PROXIMITY

Note: Not illustrated

$

$

Currently unavailable

35

Toro AU8ET20009

LUG - 1/0, Crimp, Copper, 1/2 Hole

Note: Not illustrated

$

$

Currently unavailable

36

Toro AU8ET64003

DISCONNECT - 16-14 Nylon Blue

Note: Not illustrated

$

$

Currently unavailable

37

Toro AU8ET64104

DISCONNECT - Female

Note: Not illustrated

$

$

Currently unavailable

38

Toro AU8ET44201

TERM FORK - Nylon

Note: Not illustrated

$

$

Currently unavailable

39

Toro AU8ET69001

TERM-Y ADAPTER

Note: Not illustrated

$

$

Currently unavailable

40

Toro AU8ET55003

BUTTSPLICE

Note: Not illustrated

$

$

Currently unavailable

41

Toro AU8EP78223

TRANSDUCER - 3300 PSI, 9/16 - 18 SAE
(Superseded to 127-0893)

Note: Not illustrated

$2234.99

$

Usually ships in 3-6 days

0

42

Toro AU8EO72001

SWITCH-TOOGLE, SPST, ON-OFF (SEALED)

Note: Not illustrated

$

$

Currently unavailable

43

Toro AU8NG10019-25

SWITCH - Ignition, Keyed

Note: Not illustrated

$

$

Currently unavailable

44

Toro AU114809

CONTROLLER - Programmed

$

$

Currently unavailable

Toro AU114996

PROGRAM - Controller

Note: Not illustrated

$

$

Currently unavailable

Toro AU21000986

CONTROLLER - MC24

Note: Not illustrated

$

$

Currently unavailable

45

Toro AU495-11028

WASHER-FLAT

Note: Not illustrated

$

$

Not available

46

Toro AU326-440

BOLT - Hex Hd .250 x 2.50 GR8 PHC

Note: Not illustrated

$

$

Currently unavailable

47

Toro AU425-104

NUT - Hex .250 - 20 GR5 ZND

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

49

Toro AU21001543

BOOT - Battery, Black

Note: Not illustrated

$

$

Currently unavailable

50

Toro AU21001544

BOOT - Battery, Red

Note: Not illustrated

$

$

Currently unavailable

51

Toro AU21001545

BOOT - RED (+) Alternator Terminal

Note: Not illustrated

$

$

Currently unavailable

52

Toro AU113665

SWITCH-ROCKER, 1 POLE (ON)OFF/ON(OFF)

Note: Not illustrated

$

$

Currently unavailable

53

Toro AU113662

SWITCH-ROCKER, 2 POLE (ON/OFF)

Note: Not illustrated

$

$

Currently unavailable

54

Toro AU113663

SWITCH - Rocker, On - Off - (On) 2 Pole

Note: Not illustrated

$

$

Currently unavailable

55

Toro AU113664

SWITCH-ROCKER, 2 POLE

Note: Not illustrated

$38.99

$

In Stock, only 1 left!

0

56

Toro AU8EE27103

RELAY

$

$

Currently unavailable

57

Toro AU113668

BOX-VEC, MAIN (B)

$

$

Currently unavailable

58

Toro AU113667

BOX-VEC, MAIN (A)

$

$

Currently unavailable

59

Toro AU100315

SCREW-FLANGE, METRIC

$1.99

$

Usually ships in 3-6 days

0

60

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

61

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

62

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

63

Toro AU129-770

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

64

Toro AU113669

BOX-VEC, MAIN (C)

Note: Not illustrated

$

$

Currently unavailable

65

Toro AU118280

SOLENOID - Relay, 12V, 85A

Note: Not illustrated

$

$

Currently unavailable

66

Toro AU120619

HOLDER - Fuse, Cap

Note: Not illustrated

$

$

Currently unavailable

67

Toro AU120618

HOLDER - Fuse, Base

Note: Not illustrated

$

$

Currently unavailable

68

Toro AU120617

FUSE - 100A Maxi

Note: Not illustrated

$

$

Currently unavailable

69

Toro AU115133

CONNECTOR-PACK, RESISTOR

$

$

Currently unavailable

70

Toro AU440-11010

SCREW - PHd Type 1 #10-24 x 5/8 CST ZND
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

71

Toro AU193-1004

NUT-#10-24 KEPS
(Superseded to 32149-7)

$0.99

$

In Stock, only 3 left!

0

72

Toro AU124072

ESLOK Update Kit (for Eaton machines)

Note: Not illustrated

$

$

Currently unavailable
