DD 2024 - Toro EarthPro Directional Drill (2007) ELECTRICAL COMPONETS SERIAL NUMBERS DD202490150 Parts Diagram

EarthPro Directional Drill

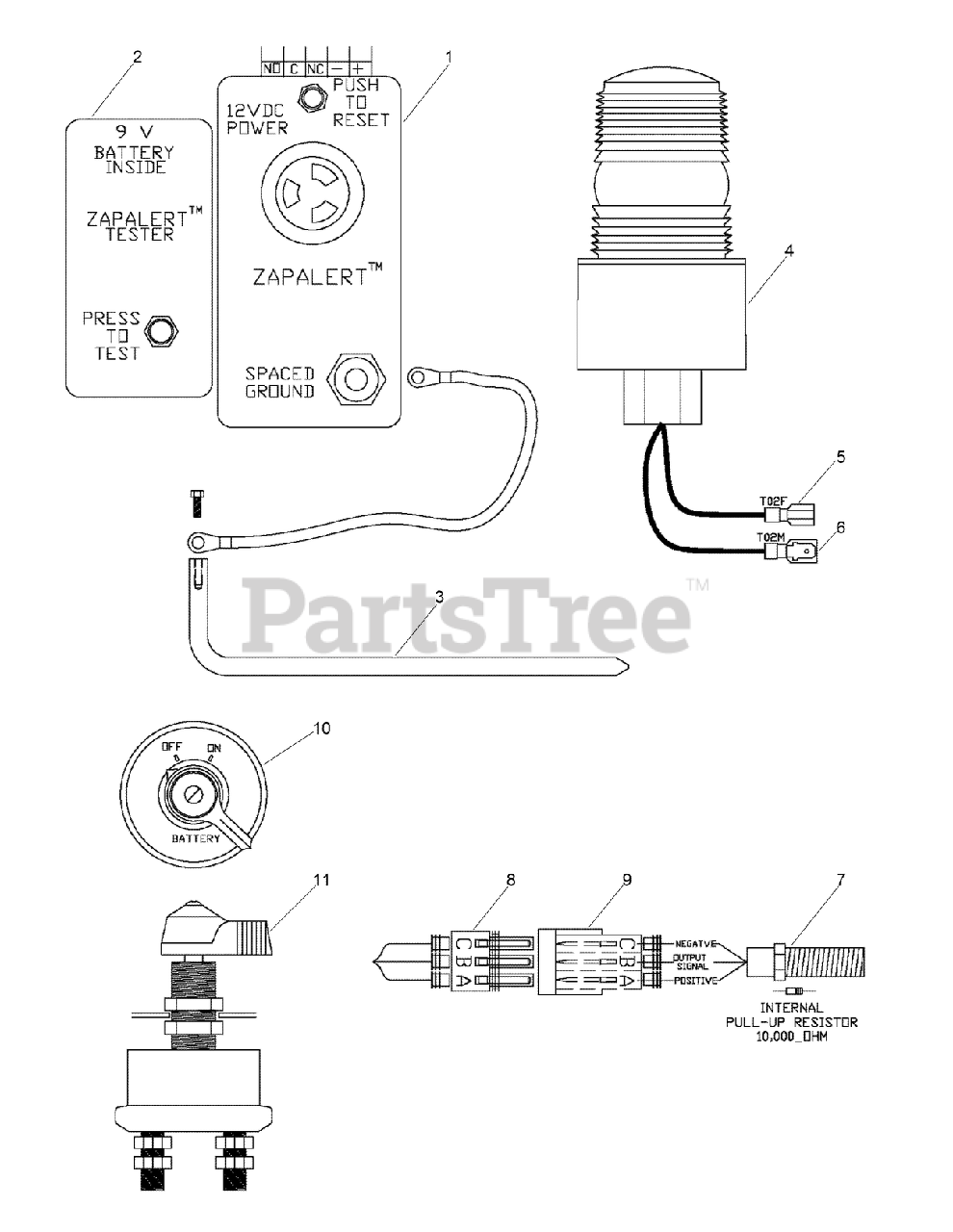

ELECTRICAL COMPONETS SERIAL NUMBERS DD202490150 Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro AU8EE27104

TESTER-ZAPALERT

$

$

Currently unavailable

3

Toro AU8EE27103-2

GROUND STAKE - Zap Alert
(Superseded to AU109242)

$

$

Not available

4

Toro AU6EE27201-01

ASSEMBLY - Strobe, Small
(Superseded to 125-4528)

$

$

Not available

5

Toro AU8ET64003

DISCONNECT - 16-14 Nylon Blue

$

$

Currently unavailable

6

Toro AU8ET64102

TERMINAL - Male Tab, 16-14 Nylon Blue

$

$

Currently unavailable

7

Toro AU8HM24049-02

SPEED PICKUP - for 8HM24053 Mud Pump
(Superseded to AU126292)

$

$

Not available

8

Toro AU6EC12115-01

CONNECTOR - 3 Socket

$

$

Currently unavailable

9

Toro AU6EC12114-01

CONNECTOR - 3 Pin, Weatherpack

$

$

Currently unavailable

10

Toro AU8EP02902

FACEPLATE-BATTERY, ON/OFF

$

$

Currently unavailable

11

Toro AU8EP02901

SWITCH-BATTERY (1000 AMP)

$

$

Currently unavailable
