DD 2024 - Toro EarthPro Directional Drill (2007) BACK BOX ELECTRICAL Parts Diagram

EarthPro Directional Drill

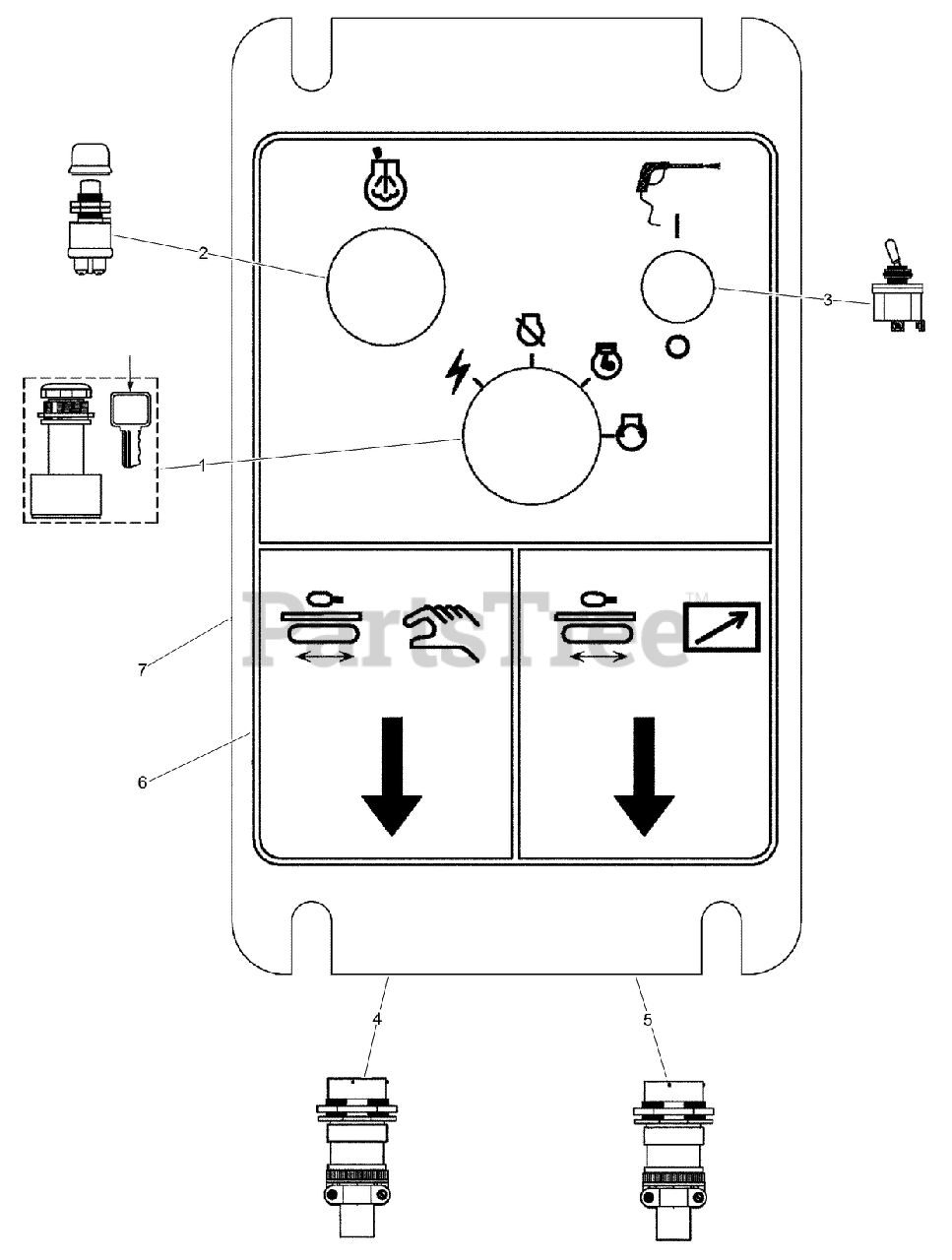

BACK BOX ELECTRICAL Parts Diagram

  • Title
1

Toro AU8NG10019-25

SWITCH - Ignition, Keyed

$

$

Currently unavailable

1A

Toro AU8NG10019-25-01

KEY - for Keyswitch (comes with keyswitch)

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU8EO61005

SWITCH - Pushbutton, Ether
(Superseded to AU30-1608-1005)

$

$

Not available

3

Toro AU8EO72001

SWITCH-TOOGLE, SPST, ON-OFF (SEALED)

$

$

Currently unavailable

4

Toro AU6EC63201

RECEPTACLE - Male, 18-14

$

$

Currently unavailable

5

Toro AU6EC63201

RECEPTACLE - Male, 18-14

$

$

Currently unavailable

6

Toro AU114687

OVERLAY - Rear Controls

$

$

Currently unavailable

7

Toro AU114684

PLATE - Rear Controls Panel
(Superseded to 127-0906)

$

$

Not available
