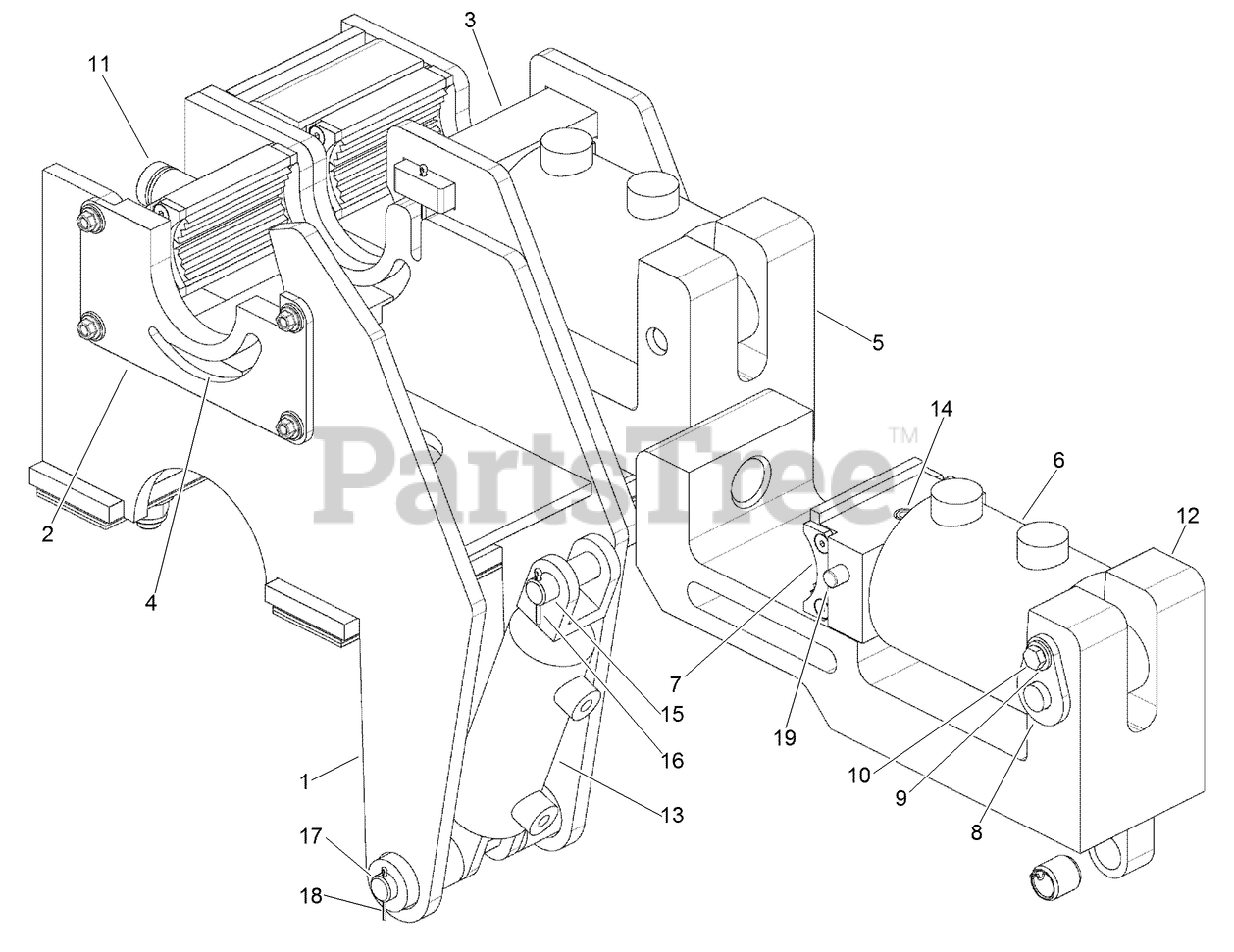

DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) WRENCH MACHINES WITH SERIAL NUMBERS DD202480125 AND AFTER Parts Diagram

EarthPro Directional Drill Tier 4i

WRENCH MACHINES WITH SERIAL NUMBERS DD202480125 AND AFTER Parts Diagram

  • Title

Toro AU110488

ASSEMBLY - Wrench

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU12GB6001

WELDMENT - Wrench, DD1215

$

$

Not available

2

Toro AU12GB6010

RETAINER - Pivot Key, Wrench
(Superseded to AU12GB6010-03)

$

$

Not available

3

Toro AU12GB6015

PIN - Retaining, Die Holder

$

$

Currently unavailable

4

Toro AU12GB6014

KEY-PIVOT, WRENCH

$

$

Currently unavailable

5

Toro AU111505

BASE - Fixed Clamp, Wrench

$

$

Currently unavailable

6

Toro AU8HC40175

CYLINDER - Hydraulic, 4 Bore x 1.75 Stroke

$

$

Currently unavailable

7

Toro AU12GB6020

MOVING DIE HOLDER ASM

$

$

Currently unavailable

8

Toro AU12GB6055

PIN-FLAGGED

$

$

Currently unavailable

9

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU12GB6025

FIXED DIE HOLDER ASM

$

$

Not available

12

Toro AU12GB6041

ROTATING CLAMP - Wrench

$

$

Currently unavailable

13

Toro AU8HC21004

HYD CYLINDER ASM

$

$

Currently unavailable

14

Toro AU12GB6056

PIN-SPRING

$

$

Currently unavailable

15

Toro AU109885

PIN-CLEVIS

$

$

Currently unavailable

16

Toro AU432-820

PIN-Cotter, 1/8 x 1-1/4 in ZN
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

17

Toro AU12GB6057

PIN-CYLINDER

$

$

Currently unavailable

18

Toro AU432-620

PIN - Cotter, .094 x 1.25 in ZN

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU8CT61601

PIN-DOWEL

$

$

Currently unavailable

20

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

Note: Not illustrated

$1.49

$

Usually ships in 3-6 days

0

21

Toro AU109676

BUSHING-SPRING

Note: Not illustrated

$

$

Currently unavailable

22

Toro AU112270

PLATE - Shim
(Superseded to AU112270-03)

Note: Not illustrated

$

$

Not available

23

Toro AU100362

SCREW-FLANGE

Note: Not illustrated

$

$

Currently unavailable

24

Toro AU100529

NUT-HHF

Note: Not illustrated

$6.99

$

Usually ships in 3-6 days

0
