DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) TOOL JOINT LUBE APPLICATOR Parts Diagram

EarthPro Directional Drill Tier 4i

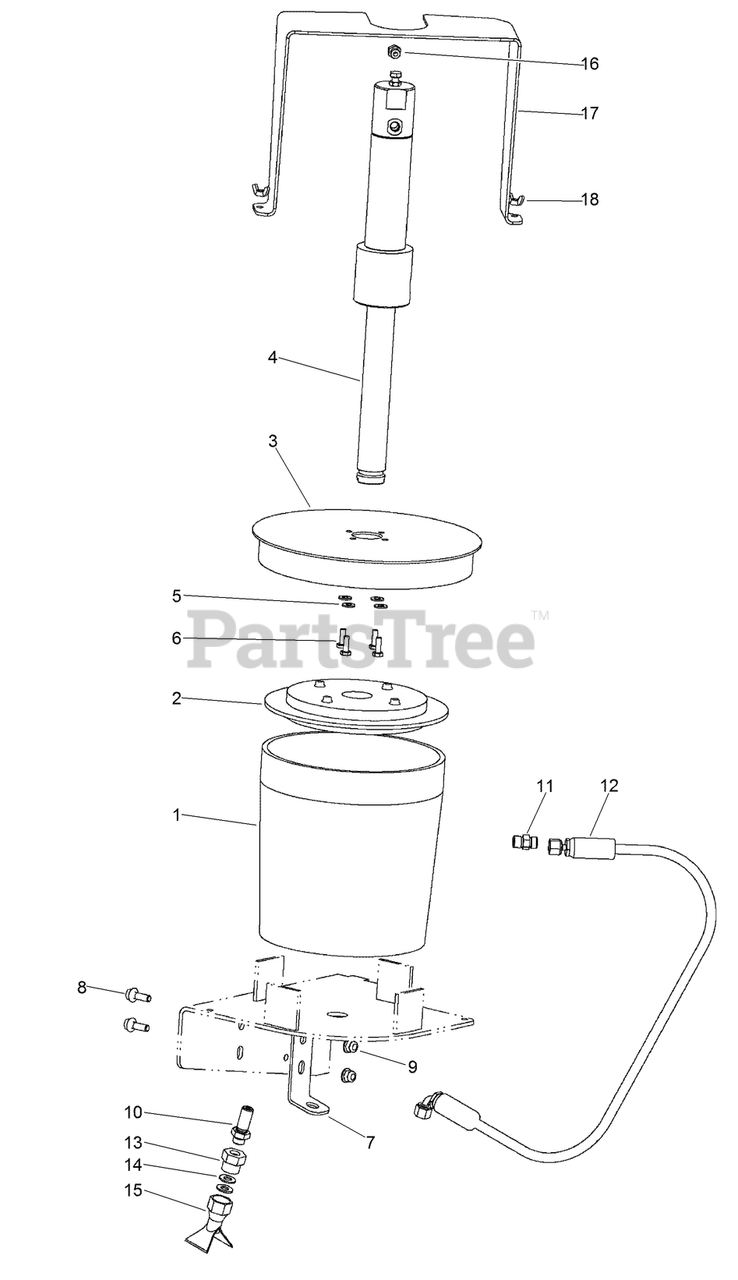

TOOL JOINT LUBE APPLICATOR Parts Diagram

  • Title

Toro AU108820

ASSEMBLY - Tool Joint Lube Applicator

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU01DT9904

COMPOUND-THREAD

$

$

Not available

2

Toro AU108646

SEAL - Rubber, Follower

$

$

Currently unavailable

3

Toro AU108790

WELDMENT - Cover
(Superseded to AU108790-03)

$

$

Not available

4

Toro AU108837

HYD GREASE PUMP ASM

$

$

Not available

5

Toro AU495-11028

WASHER-FLAT

$

$

Not available

6

Toro AU326-412

BOLT - Hex Hd .250 x .750 GR8 PHC

$

$

Currently unavailable

7

Toro AU108816

BRACKET - Nozzle, Greaser
(Superseded to AU108816-03)

$

$

Not available

8

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

9

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU8OAA0404

CONNECTION - Bulkhead, Straight -4 ORFS / -4 ORB

$

$

Currently unavailable

11

Toro AU8OA30406

CONNECTION - Straight, -4 ORFS / -6 ORB

$

$

Currently unavailable

12

Toro AU108645

HOSE-HYD

$

$

Currently unavailable

13

Toro AU8SA31004

REDUCER-STRAIGHT, THREADED

$

$

Currently unavailable

14

Toro AU496-11041

WASHER - 0.406 x 0.812 x 0.065 in HDN ZND

$

$

Currently unavailable

15

Toro AU108817

NOZZLE - Spray, Airless

$

$

Not available

16

Toro AU218-5153

PLUG - Hex, ORB 1/4

$3.49

$

Usually ships in 3-6 days

0

17

Toro AU109840

TIE DOWN - Grease Cover
(Superseded to AU109840-03)

$

$

Not available

18

Toro AU129-409

NUT - Wing, 1/4 - 20 UNC ZND

$

$

Currently unavailable
