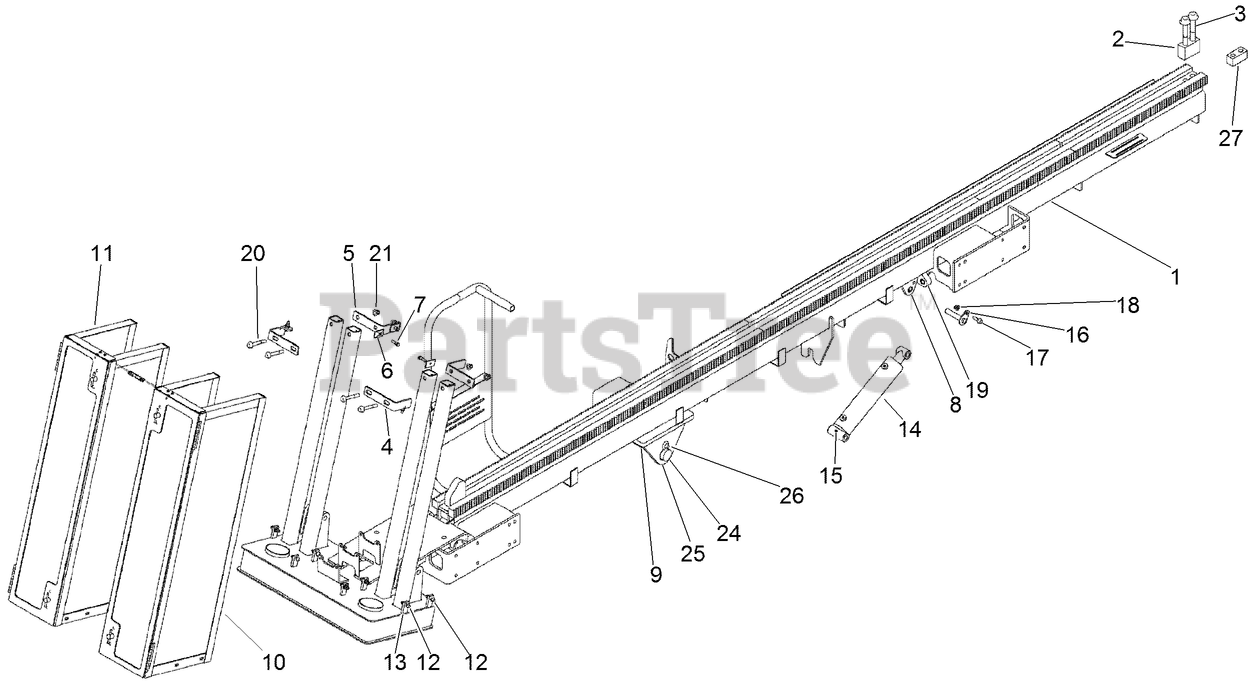

DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) THRUST FRAME MACHINES WITH SERIAL NUMBERS DD202480124 AND PRIOR Parts Diagram

EarthPro Directional Drill Tier 4i

THRUST FRAME MACHINES WITH SERIAL NUMBERS DD202480124 AND PRIOR Parts Diagram

  • Title

Toro AU110695

ASSEMBLY - Thrust Frame

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU110486

WELDMENT - Thrust Frame

$

$

Currently unavailable

2

Toro AU12GB2030

STOP BLOCK - Rear

$

$

Currently unavailable

3

Toro AU100378

SCREW-HHF

$

$

Currently unavailable

4

Toro AU108991

POST - Tie, Stakedown

$

$

Currently unavailable

5

Toro AU12GB2011

HOLDER - Hose
(Superseded to AU12GB2011-03)

$

$

Not available

6

Toro AU8CL21201

PLATE-COVER, TWIN

$

$

Currently unavailable

7

Toro AU426-520

BOLT-Hex, 5/16 NC x 1-1/4 inch
(Superseded to 322-47)

$2.49

$

In Stock, Qty 20+

0

8

Toro AU108956

BUSHING-SPRG.75"IDX1.00"X .5"L

$

$

Currently unavailable

9

Toro AU108974

SPRING BUSHING - 2 ID x 2.25 OD x .75 Long

$

$

Currently unavailable

10

Toro AU108977

COVER - Stakedown, LH

$

$

Currently unavailable

11

Toro AU108931

COVER - Stakedown, RH

$

$

Currently unavailable

12

Toro AU100318

SCREW, METRIC FLANGE w/BODY - M8 x 35

$1.99

$

Usually ships in 3-6 days

0

13

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU109341

CYLINDER-HYDRAULIC

$

$

Currently unavailable

15

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

16

Toro AU109483

PIN-FLAG

$

$

Currently unavailable

17

Toro AU100878

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

18

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

19

Toro AU109676

BUSHING-SPRING

$

$

Currently unavailable

20

Toro AU100354

SCREW, METRIC FLANGE w/BODY-M12 x 90

$9.49

$

Usually ships in 3-6 days

0

21

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

24

Toro AU109489

PIN ASSEMBLY - Boom

$

$

Currently unavailable

25

Toro AUH313981

PIN-RETAINER

$64.99

$

Usually ships in 3-6 days

0

26

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

27

Toro AU112132

BLOCK - Tapped

$

$

Currently unavailable
