DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ROTARY MACHINES WITH SERIAL NUMBER DD202480139 AND PRIOR Parts Diagram

EarthPro Directional Drill Tier 4i

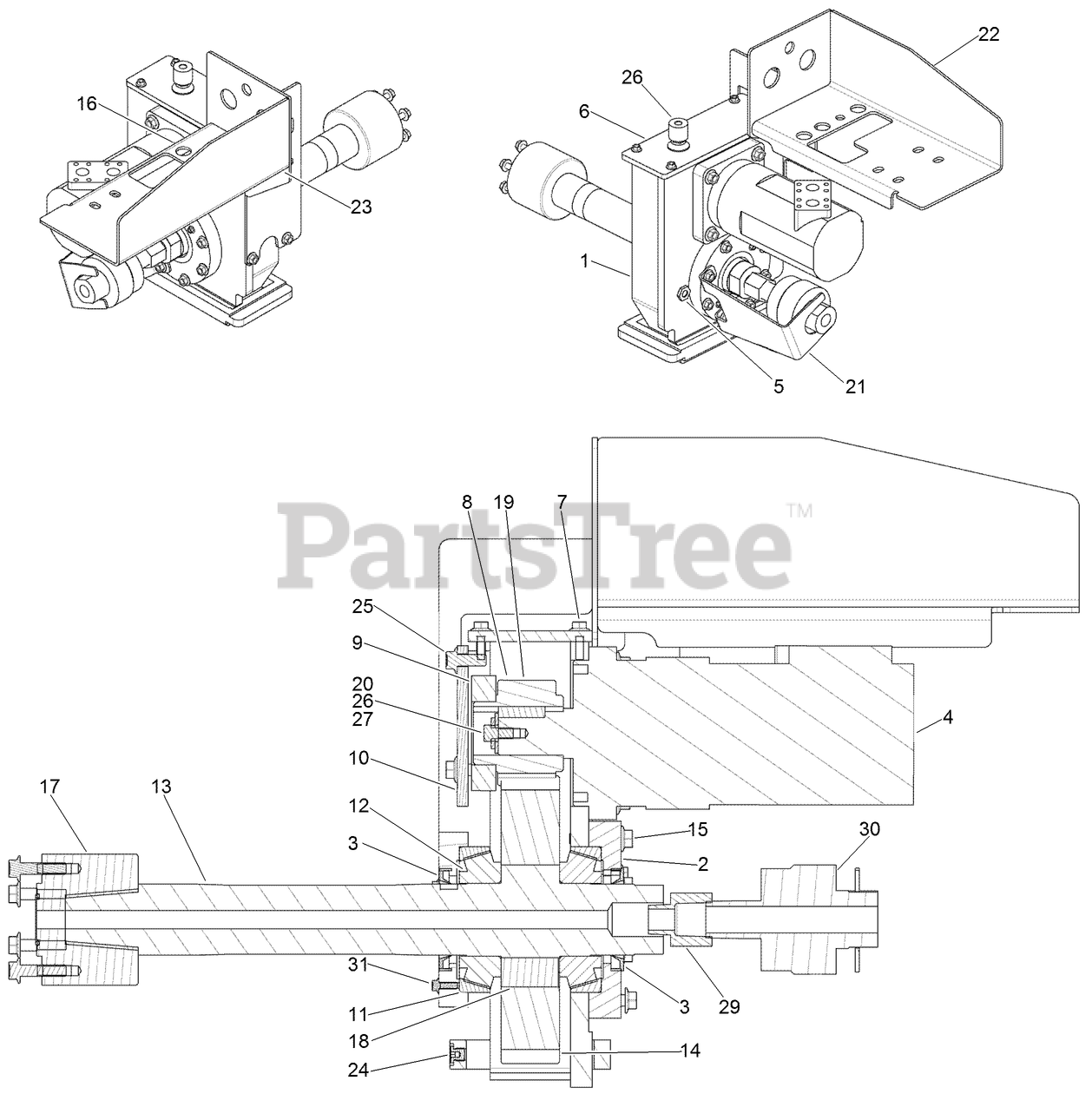

ROTARY MACHINES WITH SERIAL NUMBER DD202480139 AND PRIOR Parts Diagram

  • Title

Toro AU110588

ASSEMBLY - Rotary

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU12GB4403

BOX-ROTARY

$

$

Currently unavailable

2

Toro AU12GB4412

PLATE-BEARING CAP

$

$

Currently unavailable

3

Toro AU8HS11033

SEAL-SHAFT

$

$

Currently unavailable

4

Toro AU8HM24051

HYD MOTOR ASM

$

$

Currently unavailable

5

Toro AU8PP70008

PLUG-SITE, GLASS

$

$

Currently unavailable

6

Toro AU12GB4450

ASSEMBLY - Top Plate

$

$

Currently unavailable

7

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

8

Toro AU12GB4460

GEAR-PINION, ROTARY BOX (13T)

$

$

Currently unavailable

9

Toro AU8CF40011

BEARING-RADIAL BALL

$

$

Currently unavailable

10

Toro AU12GB4461

PLATE-RETAINING, ROTARY BOX

$

$

Currently unavailable

11

Toro AU8CF63017

CUP-BEARING

$

$

Currently unavailable

12

Toro AU8CF63016

CONE-BEARING

$

$

Currently unavailable

13

Toro AU12GB4420

SPINDLE-ROTARY

$

$

Currently unavailable

14

Toro AU12GB4465

GEAR-RING, ROTARY BOX (38T)

$

$

Currently unavailable

15

Toro AU100332

SCREW, METRIC FLANGE w/BODY - M10 x 45

$

$

Currently unavailable

16

Toro AU100830

SCREW

$3.49

$

In Stock, Qty 7

0

17

Toro AU114321

ADAPTER - Spindle

$

$

Not available

18

Toro AU12GB4455

KEY-ROTARY BOX

$

$

Currently unavailable

19

Toro AU12GB4456

KEY-BOX, ROTARY

$

$

Currently unavailable

20

Toro AU495-21056

WASHER - .562 x 1.375 x .109 in CST ZND

$

$

Not available

21

Toro AU110608

BRACKET - Mud Swivel

$

$

Currently unavailable

22

Toro AU110587

MOUNT - Hose Carrier, Rotary

$

$

Currently unavailable

23

Toro AU100875

SCREW, METRIC FLANGE w/BODY - M10 x 20

$3.99

$

Usually ships in 3-6 days

0

24

Toro AU218-5207

PLUG-SOC HD

$

$

Not available

25

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

26

Toro AU31543

BREATHER

$453.99

$

Usually ships in 3-6 days

0

27

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

28

Toro AU426-612

SCREW-HH

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

29

Toro AU217-1006

ADAPTER - 1 NPT Fem to 3/4 NPT Male

$

$

Currently unavailable

30

Toro AU12GB4210

SWIVEL - Rotary

$

$

Currently unavailable

31

Toro AU100868

SCREW, METRIC FLANGE w/BODY - M6 x 16

$

$

Not available

32

Toro AU12GB4425-001

SHIM-ROTARY BEARING (.001 THICK)

Note: Not illustrated

$

$

Currently unavailable

33

Toro AU12GB4425-003

SHIM-ROTARY BEARING (.003 THICK)

Note: Not illustrated

$

$

Currently unavailable

34

Toro AU12GB4425-005

SHIM-ROTARY BEARING (.005 THICK)

Note: Not illustrated

$

$

Currently unavailable

35

Toro AU12GB4425-010

SHIM-ROTARY BEARING (.010 THICK)

Note: Not illustrated

$

$

Currently unavailable
