DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ROD LOADER ASSEMBLY NO. 1 Parts Diagram

EarthPro Directional Drill Tier 4i

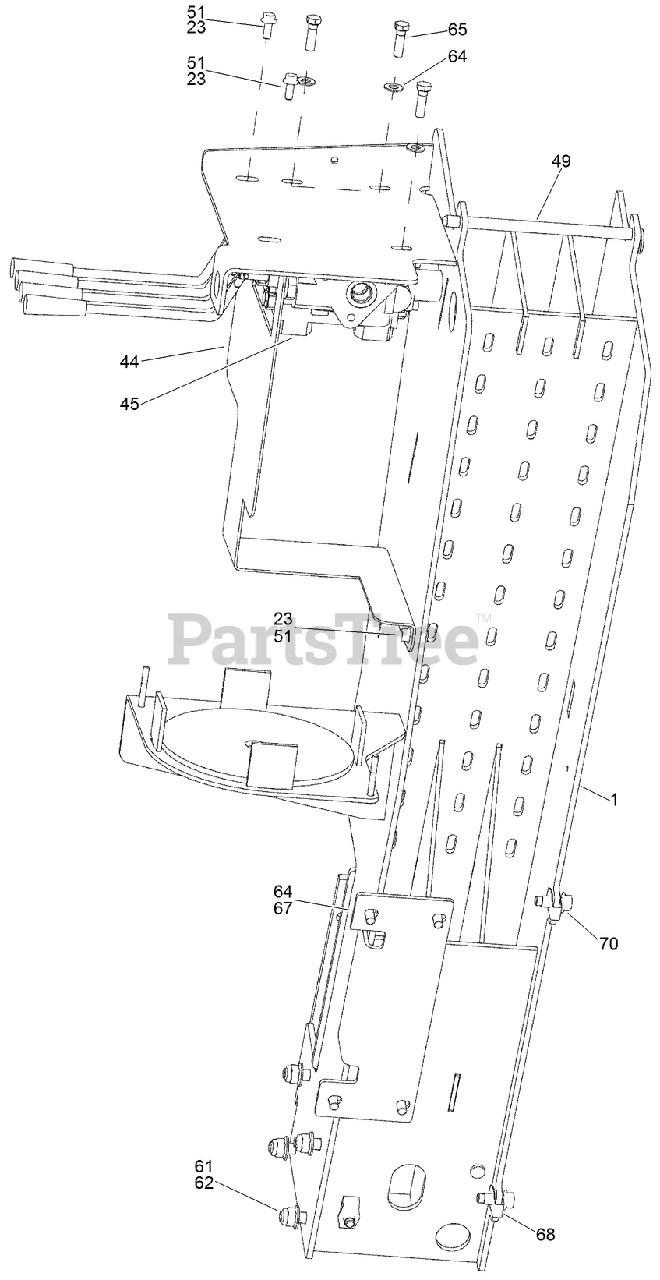

ROD LOADER ASSEMBLY NO. 1 Parts Diagram

  • Title

Toro AU110471

ASSEMBLY - Rod Loader

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU110491

ASSEMBLY - Front Rod Box

$

$

Currently unavailable

23

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

44

Toro AU109816

PLATE - Guard

$

$

Currently unavailable

45

Toro AU8HV80159

4 SPOOL HYD VALVE ASM

$

$

Currently unavailable

49

Toro AU109894

PIN

$

$

Currently unavailable

51

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

62

Toro AU100416

SCREW-HFH

$3.99

$

Usually ships in 0 days

0

61

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

64

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

65

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

67

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

68

Toro AU100863

NUT-U

$

$

Currently unavailable

69

Toro AU109021

COVER - Side
(Superseded to AU109021-03)

Note: Not illustrated

$

$

Not available

70

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0
