DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) PUMP, HYDRAULIC GREASE CARTRIDGE Parts Diagram

EarthPro Directional Drill Tier 4i

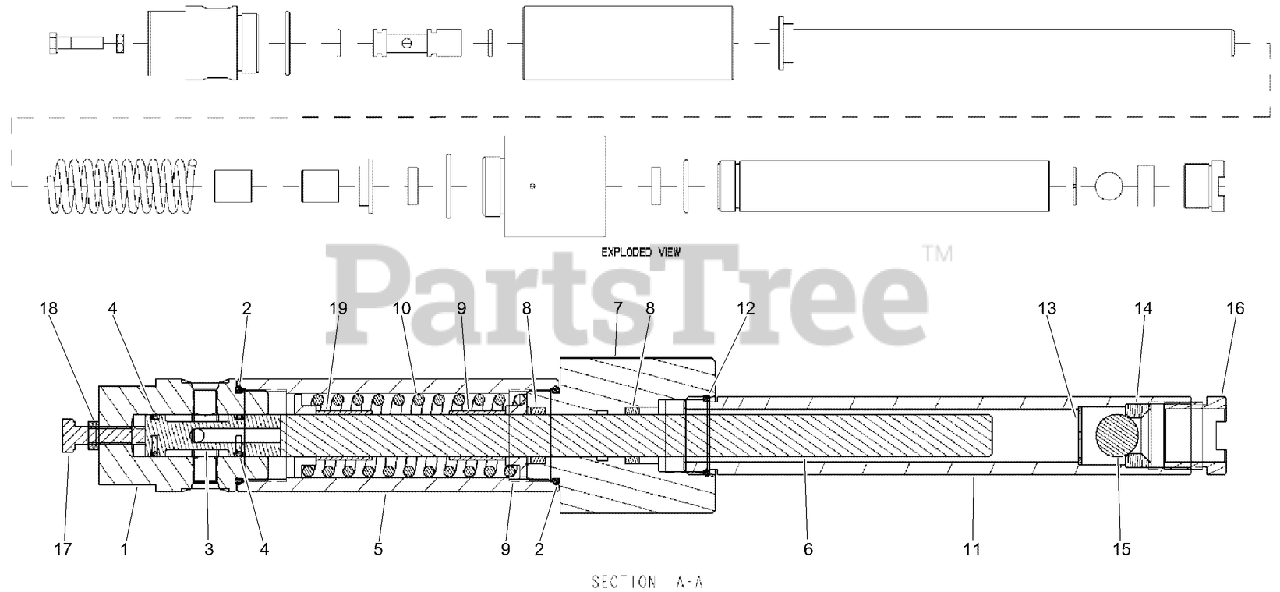

PUMP, HYDRAULIC GREASE CARTRIDGE Parts Diagram

  • Title

Toro AU108837

HYD GREASE PUMP ASM

Note: Not illustrated

$

$

Not available

1

Toro AU108858

CAP - Cylinder
(Superseded to AU108858-03)

$

$

Not available

2

Toro AU8HS51920

SEAL-O RING

$

$

Currently unavailable

3

Toro AU108861

SPOOL-ADJUSTING

$

$

Currently unavailable

4

Toro AU238-5113

O-RING

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU108862

BARREL - Cylinder
(Superseded to AU108862-03)

$

$

Not available

6

Toro AU108865

PLUNGER

$

$

Currently unavailable

7

Toro AU108859

BODY - Pump
(Superseded to AU108859-03)

$

$

Not available

8

Toro AU8HS10002

SEAL-DEEP

$

$

Currently unavailable

9

Toro AU108863

GUIDE-ROD

$

$

Currently unavailable

10

Toro AU108870

SPRING

$

$

Currently unavailable

11

Toro AU108866

BARREL-PUMP
(Superseded to AU108866-03)

$

$

Not available

12

Toro AU8HS51916

SEAL-O RING

$

$

Currently unavailable

13

Toro AU108860

CLIP-RETAINER

$

$

Currently unavailable

14

Toro AU108867

VALVE-SEAT

$

$

Currently unavailable

15

Toro AU108869

BALL-STEEL, STAINLESS

$

$

Currently unavailable

16

Toro AU108868

TUBE-INLET

$

$

Currently unavailable

17

Toro AU326-520

BOLT - Hex Hd .312 x 1.25 GR8 PHC

$

$

Currently unavailable

18

Toro AU425-145

NUT - Hex Jam 5/16-18 GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU108871

BEARING - Sleeve, Bronze

$

$

Currently unavailable
