DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) PIPE POSITION INDICATOR Parts Diagram

EarthPro Directional Drill Tier 4i

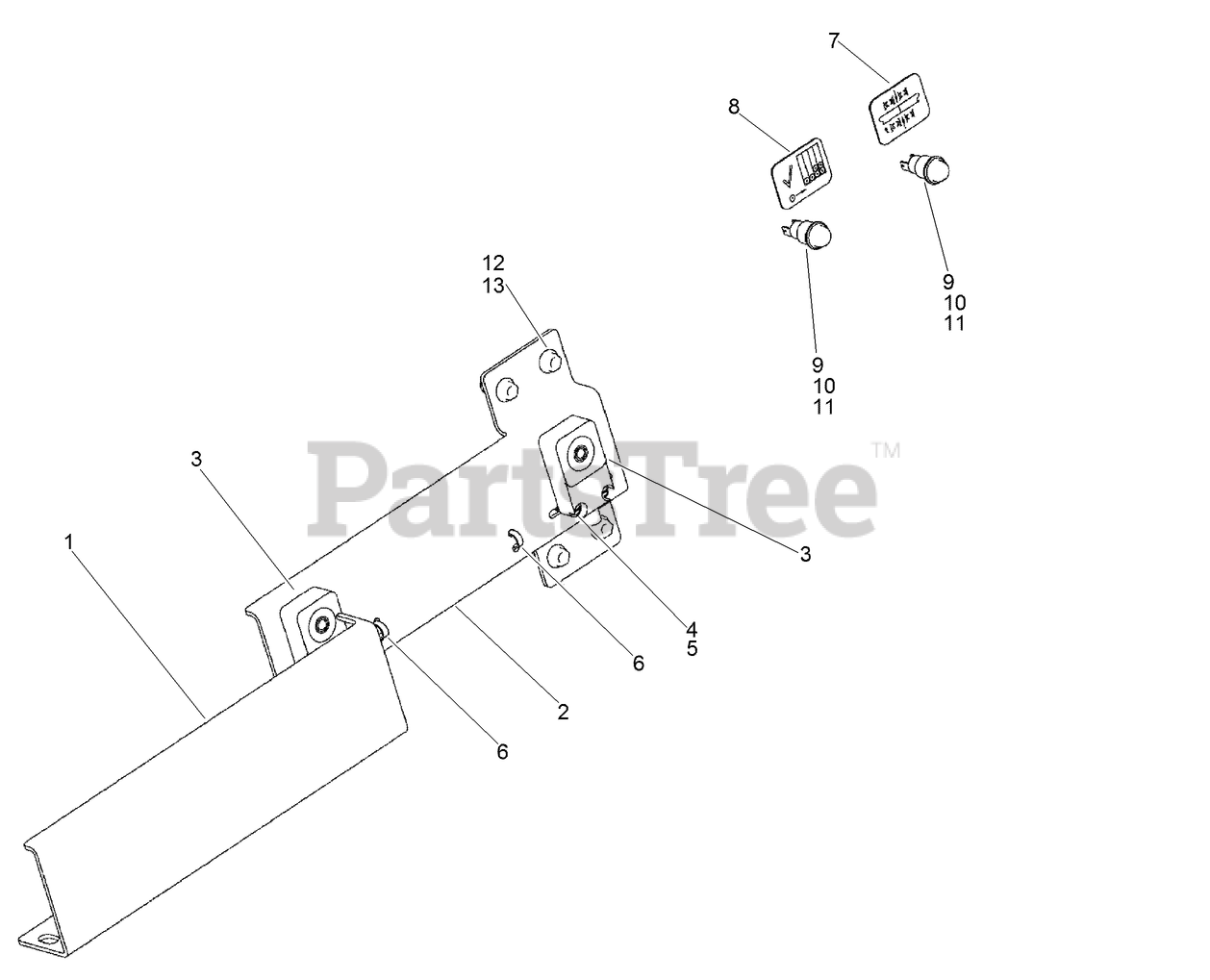

PIPE POSITION INDICATOR Parts Diagram

  • Title

Toro AU124737

ASSEMBLY - Pipe Position Indicator

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU124739

PLATE - Sensor Flag
(Superseded to AU124739-03)

$

$

Not available

2

Toro AU124738

PLATE - Switch Mount
(Superseded to AU124738-03)

$

$

Not available

3

Toro AU8EP65159

SWITCH-PROXIMITY

$

$

Currently unavailable

4

Toro AU470-11016

SCREW - Phd Sltd #10-24 x 1.00 CST ZND

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU193-1004

NUT-#10-24 KEPS
(Superseded to 32149-7)

$0.99

$

In Stock, only 3 left!

0

6

Toro AUL11541

STRAP-TIE

$16.99

$

Usually ships in 3-6 days

0

7

Toro AU121095

DECAL - Pipe Breakout Clear

$

$

Currently unavailable

8

Toro AU121094

DECAL - Pipe Return Clear

$

$

Currently unavailable

9

Toro AU8EO21401

TYPE T-2 SOCKET ASM

$

$

Currently unavailable

10

Toro AU8EO91101

BULB-TYPE T-2, 12VOLT

$

$

Currently unavailable

11

Toro AU8EO21403

LENS-DOME, FLUTED GREEN (TYPE T2)

$

$

Currently unavailable

12

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

13

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0
