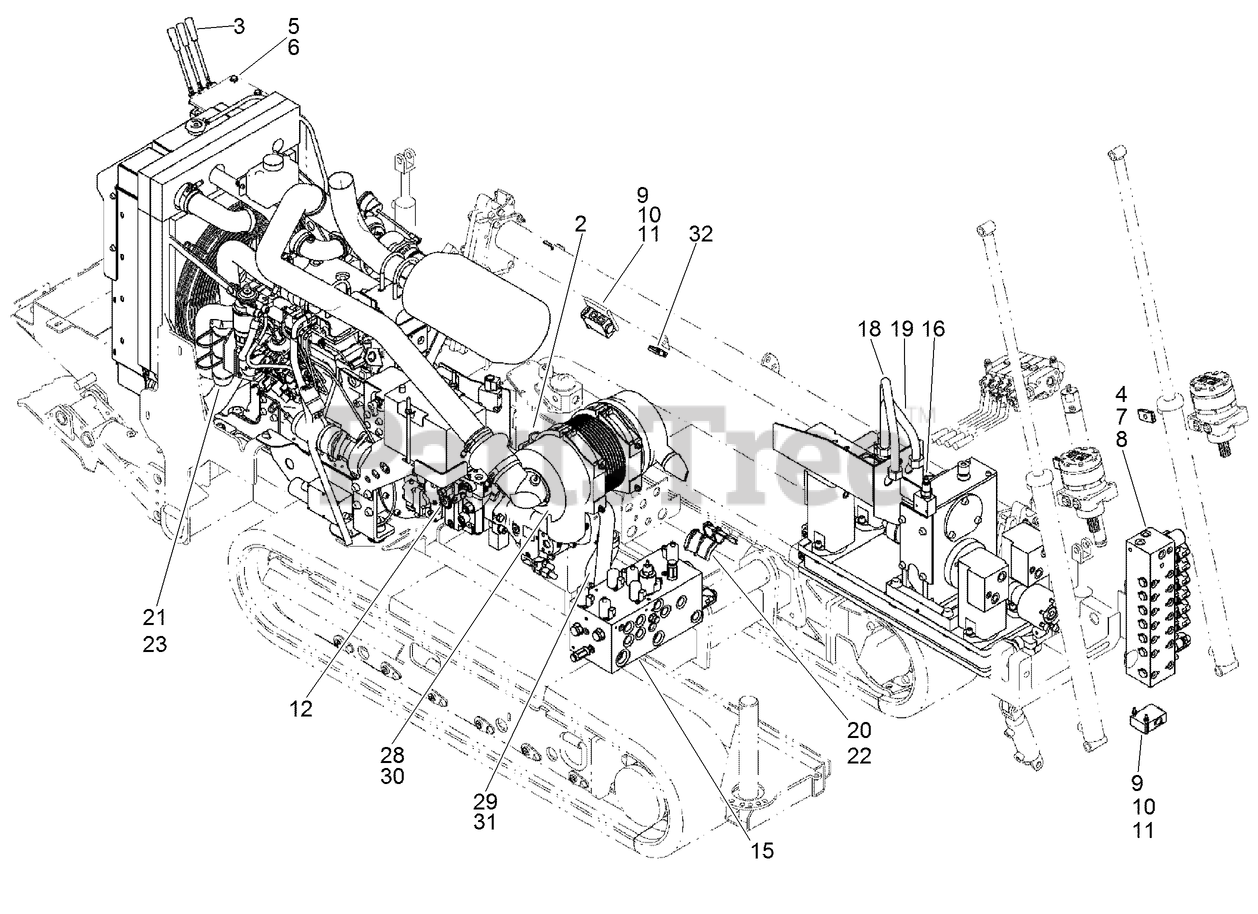

  • Title

Toro AU114275

ASSEMBLY - Hydraulics

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU119079

HYD LOAD SENSE PISTON PUMP ASM

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU8HV01001

VALVE-THERMOSTAT

$

$

Currently unavailable

3

Toro AU8HV80153

3 SPOOL HYD VALVE ASM

$

$

Currently unavailable

4

Toro AU111494

9 SECTION HYD VALVE ASM

$

$

Not available

5

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

7

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU112323

HYD FLOW DIVIDER VALVE ASM

$

$

Currently unavailable

10

Toro AU100315

SCREW-FLANGE, METRIC

$1.99

$

Usually ships in 3-6 days

0

11

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

12

Toro AU270083

VALVE-SHUTTLE, LOAD

$

$

Currently unavailable

13

Toro AU20GB3200

KIT - Hose

Note: Not illustrated

$

$

Currently unavailable

14

Toro AU114276

KIT - Hydraulic Fittings (not shown)

Note: Not illustrated

$

$

Currently unavailable

15

Toro AU114175

4 SECTION HYD VALVE ASM

$

$

Not available

16

Toro AU112958

PRESSURE RELIEF VALVE ASM

$

$

Currently unavailable

17

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

Note: Not illustrated

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU111677

TUBE-HYD, HIFLOW (ROTARY B)

$

$

Currently unavailable

19

Toro AU111678

TUBE-HYD, HIFLOW (ROTARY A)

$

$

Currently unavailable

20

Toro AU112950

PROTECTOR-HOSE

$29.99

$

Usually ships in 3-6 days

0

21

Toro AU112951

PROTECTOR-HOSE, 8 INCH

$

$

Currently unavailable

22

Toro AUL11541

STRAP-TIE

$16.99

$

Usually ships in 3-6 days

0

23

Toro AUL18331

STRAP-TIE

$2.49

$

Usually ships in 3-6 days

0

24

Toro AU12GB3220

TUBE-HYD, HIFLOW

Note: Not illustrated

$

$

Currently unavailable

25

Toro AU12GB3221

TUBE-HYD, HIFLOW

Note: Not illustrated

$

$

Currently unavailable

26

Toro AU12GB3222

TUBE-HYD, HIFLOW

Note: Not illustrated

$

$

Currently unavailable

27

Toro AU110373

CARRIER-HOSE

Note: Not illustrated

$

$

Not available

28

Toro AU113878

HOSE

$

$

Currently unavailable

29

Toro AU113880

HOSE

$

$

Currently unavailable

30

Toro AU8CL14020

CLAMP

$

$

Currently unavailable

31

Toro AU8CL14032

CLAMP, T-BOLT

$

$

Currently unavailable

32

Toro AU8CL21704

CLAMP-HALF (SET OF 2)

$

$

Currently unavailable
