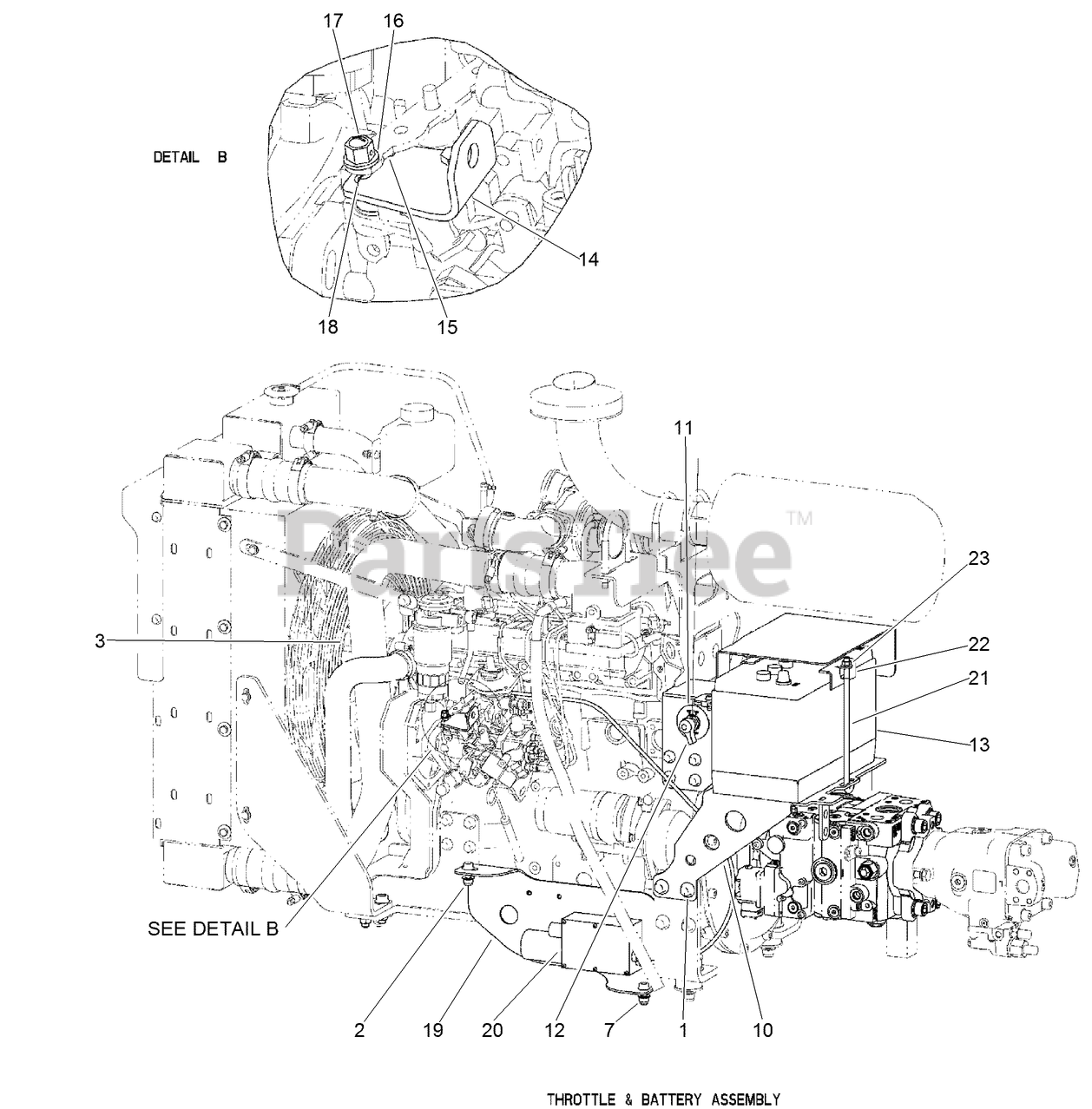

DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE THROTTLE AND BATTERY ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490145, DD202490146, DD202490148 THRU DD202490150 Parts Diagram

EarthPro Directional Drill Tier 4i

ENGINE THROTTLE AND BATTERY ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490145, DD202490146, DD202490148 THRU DD202490150 Parts Diagram

  • Title

Toro AU114239

ENGINE GROUP ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0

2

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

3

Toro AU100330

SCREW-FLANGE, METRIC

$

$

Currently unavailable

4

Toro AU100830

SCREW

Note: Not illustrated

$3.49

$

In Stock, Qty 7

0

5

Toro AU829-1412

NUT

Note: Not illustrated

$

$

Not available

6

Toro AU829-1310

NUT - M10, Class 10, PHC

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

8

Toro AU119672

HOSE - Upper Radiator

Note: Not illustrated

$

$

Currently unavailable

9

Toro AU121439

TUBE-EXHAUST (W/ SEAL PLATE)

Note: Not illustrated

$

$

Currently unavailable

10

Toro AU119455

ASSEMBLY - Battery Mount
(Superseded to AU119455-03)

$

$

Not available

11

Toro AU8EP02902

FACEPLATE-BATTERY, ON/OFF

$

$

Currently unavailable

12

Toro AU8EP02901

SWITCH-BATTERY (1000 AMP)

$

$

Currently unavailable

13

Toro AUA187928

BATTERY - 12VDC

Note: Obtain locally.

$

$

Currently unavailable

14

Toro AU12GB3042

BRACKET - Throttle
(Superseded to AU12GB3042-03)

$

$

Not available

15

Toro AU86977726

BOLT - Thd to Hd M6 x 12 GR8 ZND

$

$

Not available

16

Toro AU495-11028

WASHER-FLAT

$

$

Not available

17

Toro AU8EE30101-1

NUT - Cable Retaining
(Superseded to 125-4534)

$

$

Not available

18

Toro AU432-416

PIN - Cotter .062 x 1.00 in ZN
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

19

Toro AU114513

BRACKET - Throttle
(Superseded to AU114513-03)

$

$

Not available

20

Toro AU6EE30101

ACTUATOR-THROTTLE

$

$

Currently unavailable

21

Toro AUH436311

BOLT-HOLDDOWN, BATTERY

$41.99

$

Usually ships in 3-6 days

0

22

Toro AUD125079

ANGLE-HOLDDOWN, BATTERY

$32.99

$

Usually ships in 3-6 days

0

23

Toro AU231-5146

NUT-Serr Flg 3/8-16 UNC GR5 ZND
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

24

Toro AU100861

NUT-U

Note: Not illustrated

$6.49

$

Usually ships in 3-6 days

0

25

Toro AU121528

BATTERY - Cover

Note: Not illustrated

$

$

Currently unavailable

26

Toro AU100869

SCREW-HHF

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0
