DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE RADIATOR PREP ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490145, DD202490146, DD202490148 THRU DD202490150 Parts Diagram

EarthPro Directional Drill Tier 4i

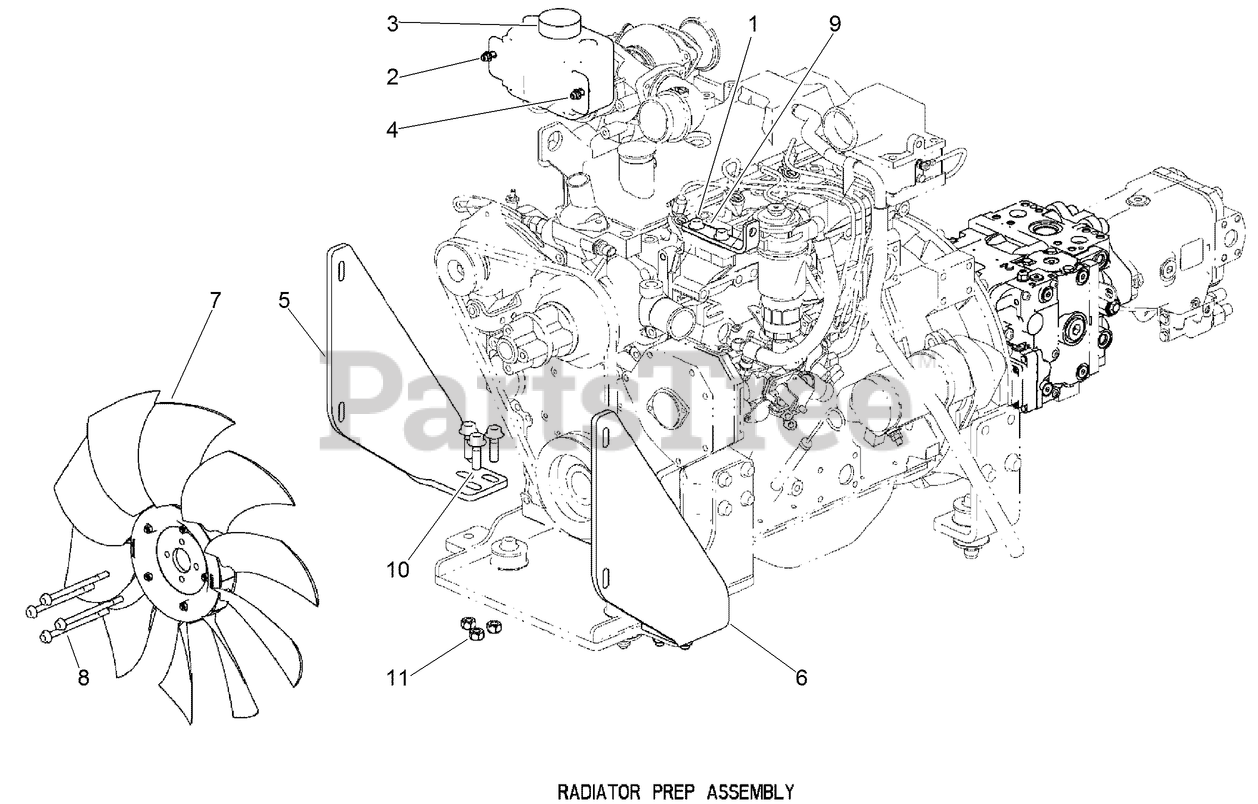

ENGINE RADIATOR PREP ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490145, DD202490146, DD202490148 THRU DD202490150 Parts Diagram

  • Title

Toro AU114239

ENGINE GROUP ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

2

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

3

Toro AU109352

TANK-Overflow

$

$

Currently unavailable

4

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

5

Toro AU114260

BRACKET - Radiator Mounting
(Superseded to AU114260-03)

$

$

Not available

6

Toro AU114261

BRACKET - Radiator Mounting
(Superseded to AU114261-03)

$

$

Not available

7

Toro AU114234

FAN-19 INCH (10-BLADE)

$

$

Currently unavailable

8

Toro AU100330

SCREW-FLANGE, METRIC

$

$

Currently unavailable

9

Toro AU114350

PLATE - Radiator Strap Mount
(Superseded to AU114350-03)

$

$

Not available

10

$3.49

$

In Stock, Qty 7

0

$

$

Not available
