DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE RADIATOR PREP ASSEMBLY MACHINE SERIAL NUMBERS THRU DD20249144 AND INCLUDING DD202490147 Parts Diagram

EarthPro Directional Drill Tier 4i

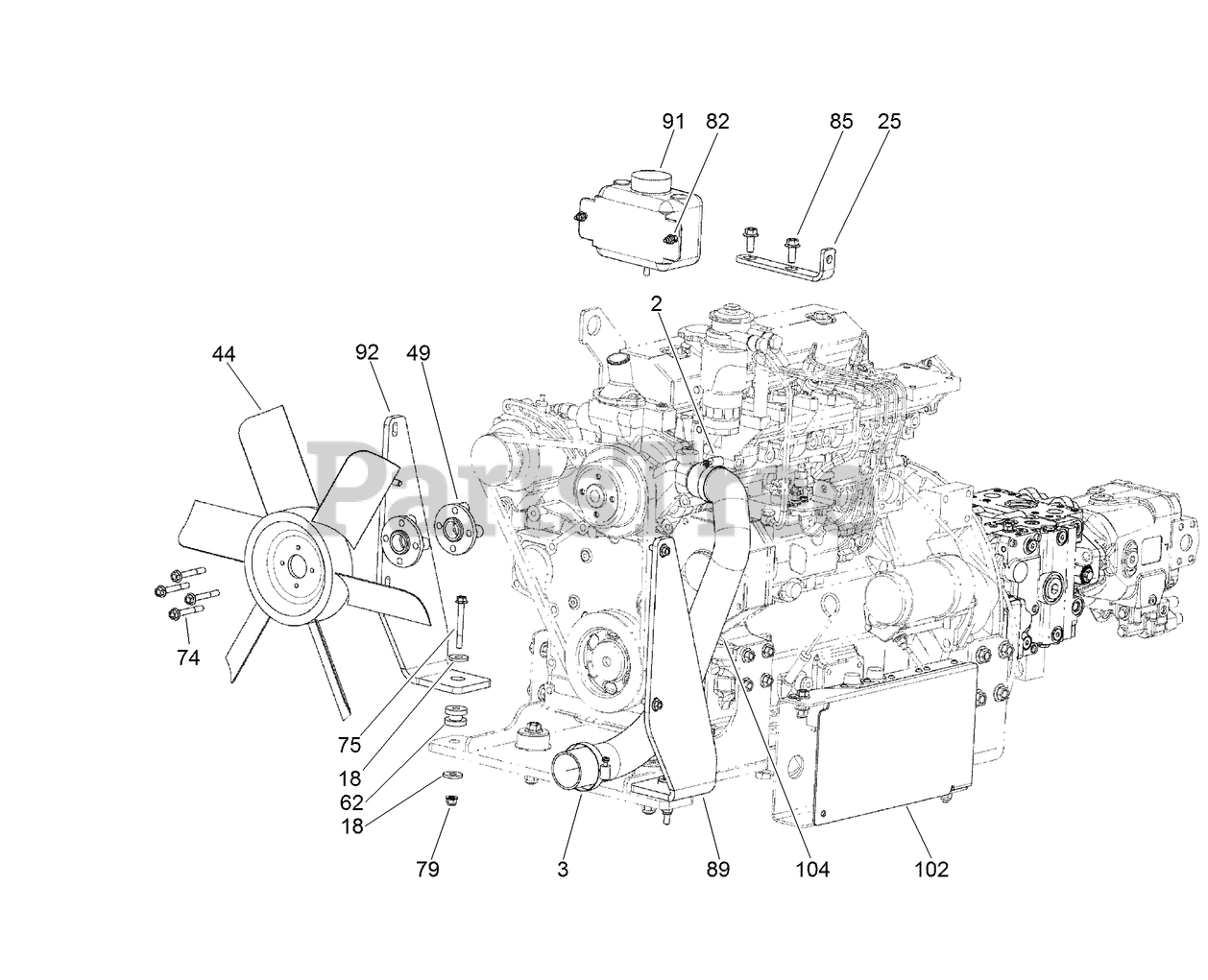

ENGINE RADIATOR PREP ASSEMBLY MACHINE SERIAL NUMBERS THRU DD20249144 AND INCLUDING DD202490147 Parts Diagram

  • Title

Toro AU20GB3000

ASSEMBLY - Engine

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU214-1432

CLAMP-Hose Type F #32

$1.99

$

Usually ships in 3-6 days

0

3

Toro AU214-1436

CLAMP - Hose Type F # 36

$1.99

$

Usually ships in 3-6 days

0

18

Toro AU496-41041

WASHER

$9.49

$

Usually ships in 3-6 days

0

25

Toro AU12GB3034

PLATE - Radiator Strap Mount

$

$

Currently unavailable

44

Toro AU8HX30005-1

FAN

$

$

Currently unavailable

49

Toro AU8NG10019-07

SPACER - Fan Hub

$

$

Currently unavailable

62

Toro AU8NG28093

MOUNT - Isolator

$

$

Currently unavailable

74

Toro AU100323

SCREW-FLANGE

$2.49

$

Usually ships in 3-6 days

0

75

Toro AU100325

SCREW-FLANGE

$2.99

$

Usually ships in 3-6 days

0

79

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

82

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

85

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

89

Toro AU108374

BRACKET - Radiator Mounting

$

$

Currently unavailable

91

Toro AU109352

TANK-Overflow

$

$

Currently unavailable

92

Toro AU109461

BRACKET - Radiator Mounting

$

$

Currently unavailable

102

Toro AU110968

COVER - Electrical

$

$

Currently unavailable

104

Toro AU111476

HOSE - Lower Radiator, Molded

$

$

Currently unavailable
