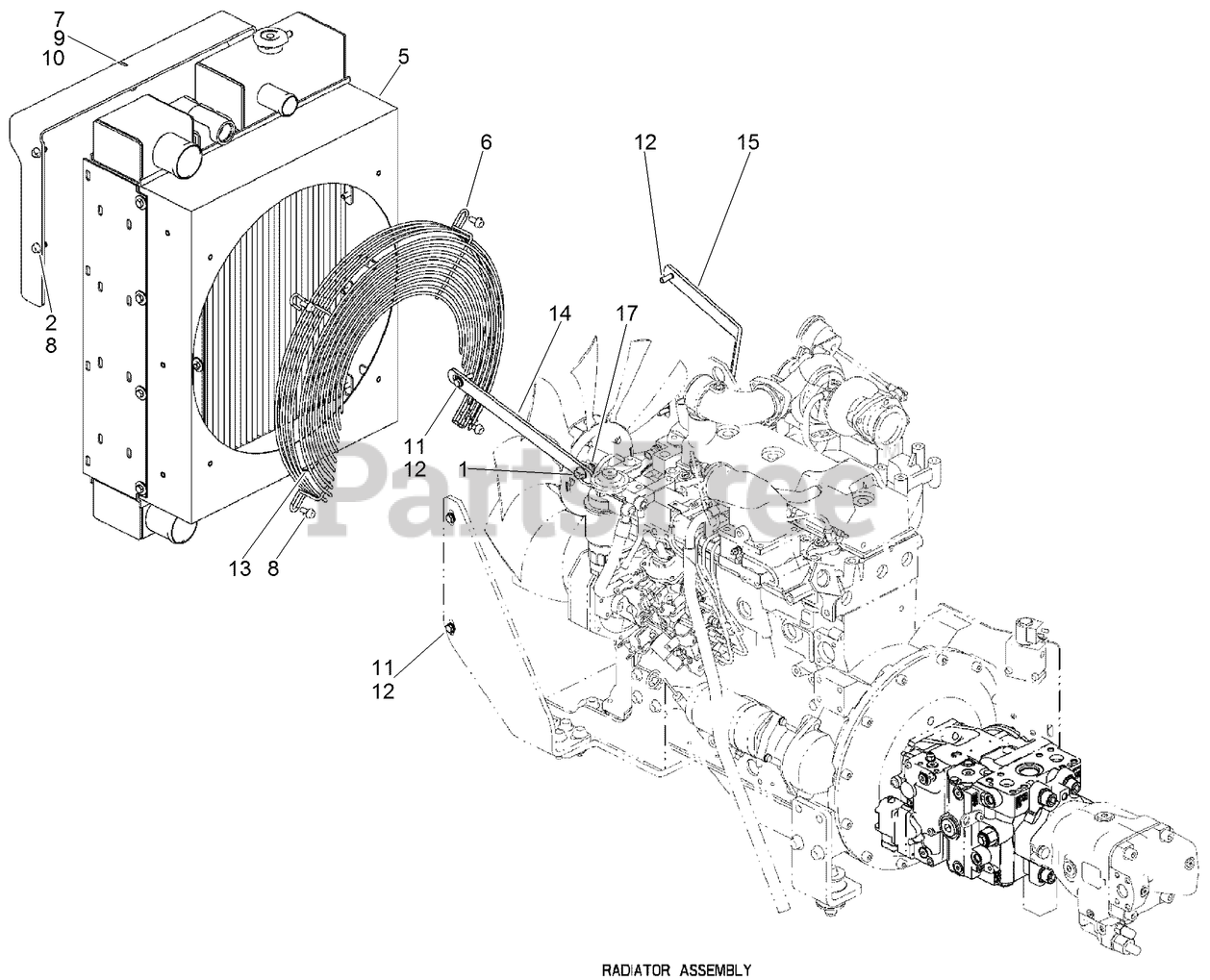

DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE RADIATOR ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490145, DD202490146, DD202490148 THRU DD20249150 Parts Diagram

EarthPro Directional Drill Tier 4i

ENGINE RADIATOR ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490145, DD202490146, DD202490148 THRU DD20249150 Parts Diagram

  • Title

Toro AU114239

ENGINE GROUP ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

2

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

3

Toro AU100830

SCREW

Note: Not illustrated

$3.49

$

In Stock, Qty 7

0

4

Toro AU829-1412

NUT

Note: Not illustrated

$

$

Not available

5

Toro AU114343

RADIATOR - w/Charged Air

$

$

Currently unavailable

6

Toro AU8HX30005-2

GUARD-Fan

$

$

Currently unavailable

7

Toro AU114233

ASSEMBLY - Shock Mount

$

$

Currently unavailable

8

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

9

Toro AU8HH96100

STUD-BALL

$

$

Currently unavailable

10

Toro AU231-4145

NUT - Prev Trq 5/16 GRB ZND Direct

$

$

Not available

11

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU426-520

BOLT-Hex, 5/16 NC x 1-1/4 inch
(Superseded to 322-47)

$2.49

$

In Stock, Qty 20+

0

13

Toro AU217-432

PLUG - Hdls Hex Skt Pipe 1/4 ZN
(Superseded to 281-10)

$18.99

$

Usually ships in 3-6 days

0

14

Toro AU114263

PLATE - Radiator Strap Mount
(Superseded to AU114263-03)

$

$

Not available

15

Toro AU114262

PLATE - Radiator Strap Mount
(Superseded to AU114262-03)

$

$

Not available

16

Toro AU829-1310

NUT - M10, Class 10, PHC

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0
