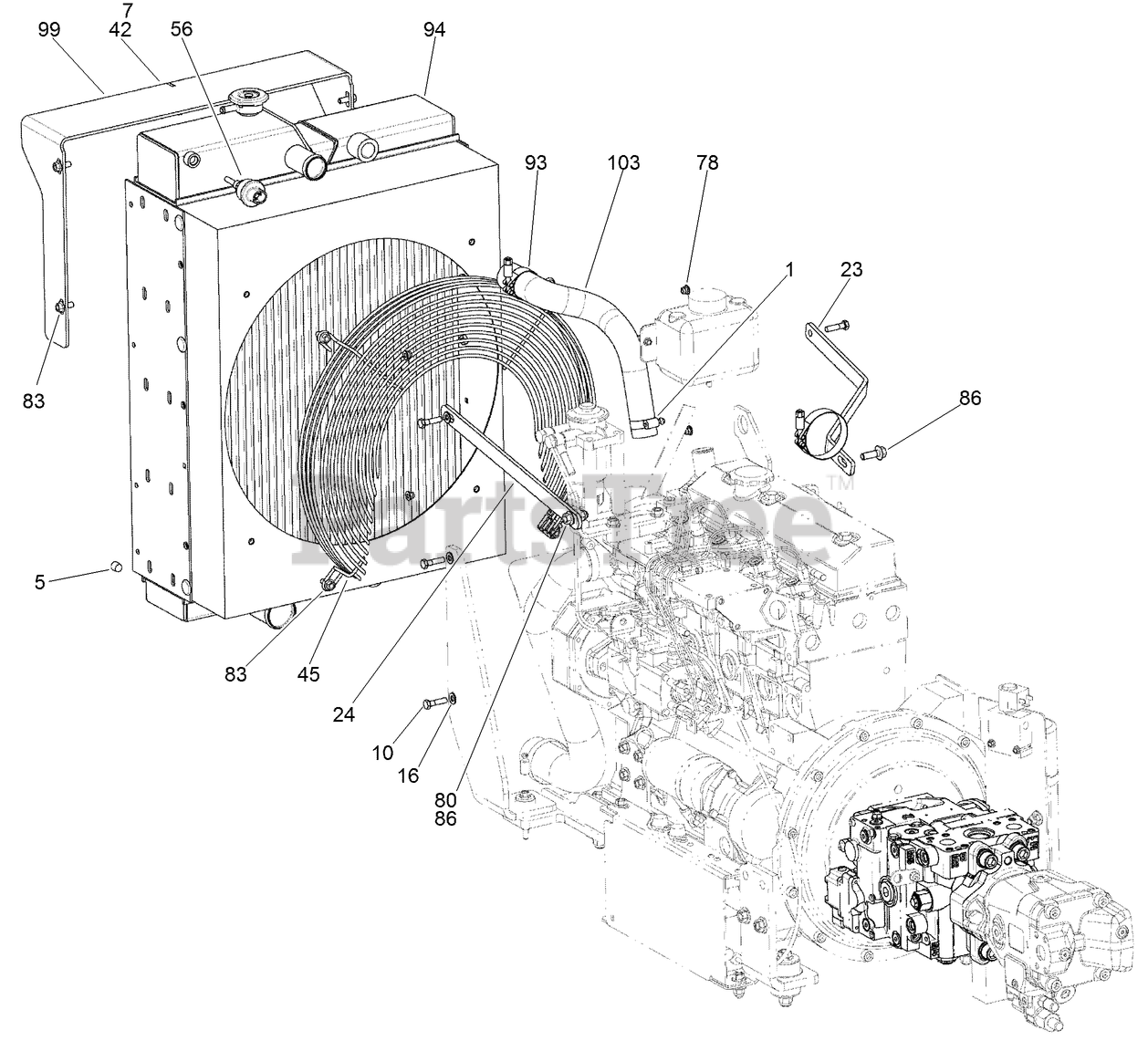

DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE RADIATOR ASSEMBLY MACHINE SERIAL NUMBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

EarthPro Directional Drill Tier 4i

ENGINE RADIATOR ASSEMBLY MACHINE SERIAL NUMBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

  • Title

Toro AU20GB3000

ASSEMBLY - Engine

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU214-1424

CLAMP - Hose Type F # 24

$1.99

$

Usually ships in 3-6 days

0

5

Toro AU217-432

PLUG - Hdls Hex Skt Pipe 1/4 ZN
(Superseded to 281-10)

$18.99

$

Usually ships in 3-6 days

0

7

Toro AU231-4145

NUT - Prev Trq 5/16 GRB ZND Direct

$

$

Not available

10

Toro AU426-520

BOLT-Hex, 5/16 NC x 1-1/4 inch
(Superseded to 322-47)

$2.49

$

In Stock, Qty 20+

0

16

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

23

Toro AU12GB3030

STRAP - Radiator

$

$

Currently unavailable

24

Toro AU12GB3032

STRAP - Radiator

$

$

Currently unavailable

42

Toro AU8HH96100

STUD-BALL

$

$

Currently unavailable

45

Toro AU8HX30005-2

GUARD-Fan

$

$

Currently unavailable

56

Toro AU8NG10019-31

SENSOR - Coolant Level Switch

$

$

Currently unavailable

78

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

80

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

83

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

86

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

93

Toro AU109908

CLAMP-HOSE (T-BOLT)

$

$

Currently unavailable

94

Toro AU110060

RADIATOR - Cooling

$

$

Currently unavailable

99

Toro AU110760

ASSEMBLY - Shock Mount

$

$

Currently unavailable

103

Toro AU111475

HOSE - Upper Radiator, Molded

$

$

Currently unavailable
