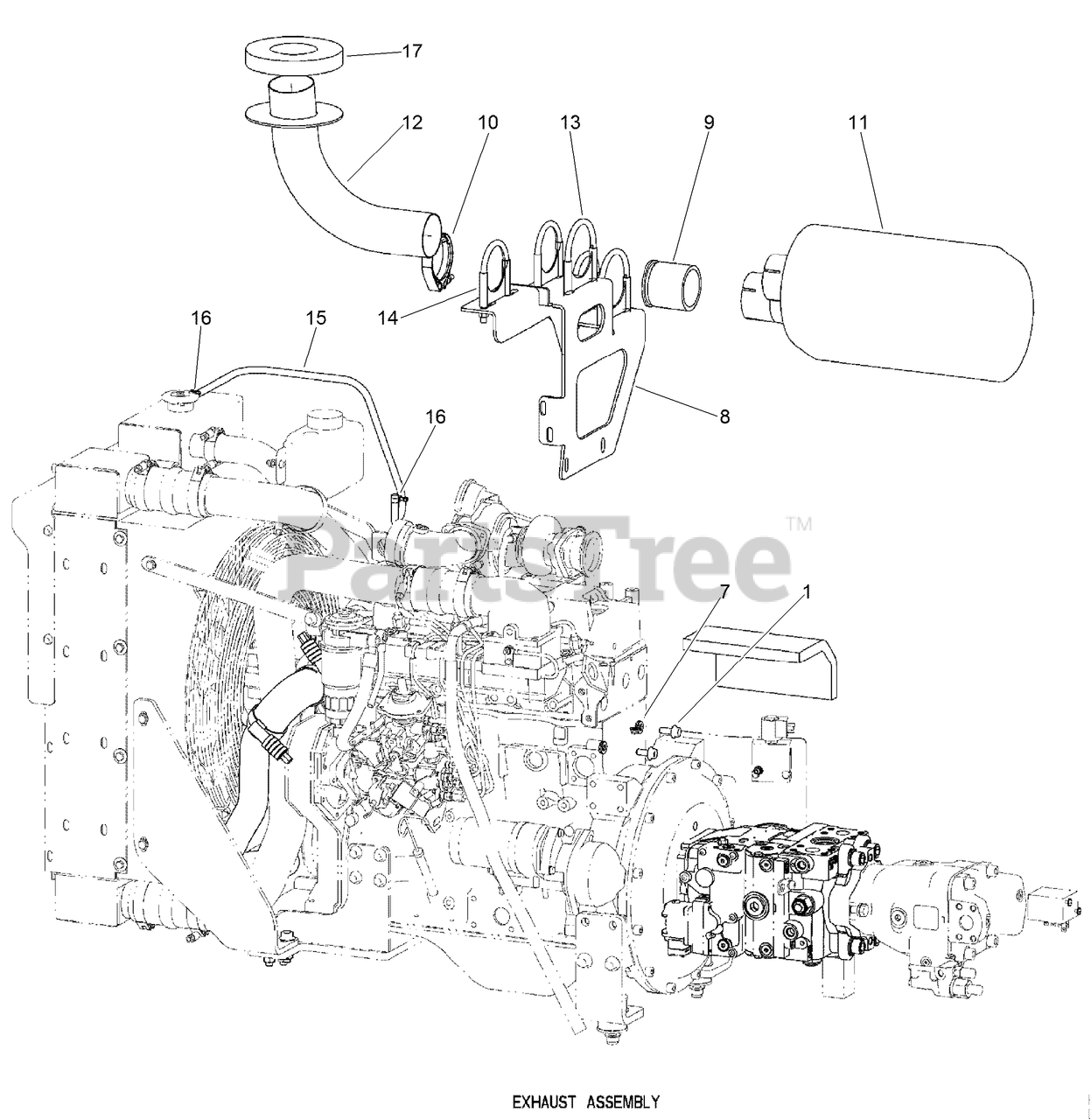

DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE EXHAUST ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490151 Parts Diagram

EarthPro Directional Drill Tier 4i

ENGINE EXHAUST ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490151 Parts Diagram

  • Title

Toro AU114239

ENGINE GROUP ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

2

Toro AU470-11012

SCREW - PHd Sltd # 10-24 x 0.75 CST ZND

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

3

Toro AU100830

SCREW

Note: Not illustrated

$3.49

$

In Stock, Qty 7

0

4

Toro AU829-1412

NUT

Note: Not illustrated

$

$

Not available

5

Toro AU829-1310

NUT - M10, Class 10, PHC

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU119672

HOSE - Upper Radiator

Note: Not illustrated

$

$

Currently unavailable

7

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU118530

ASSEMBLY - Muffler Mount
(Superseded to AU118530-03)

$

$

Not available

9

Toro AU112878

FLANGE-ADAPTER, TURBO

$

$

Currently unavailable

10

Toro A170467

CLAMP - T-Bolt

$

$

Currently unavailable

11

Toro AU110822

ASSEMBLY - Muffler
(Superseded to 125-4535)

$

$

Not available

12

Toro AU121439

TUBE-EXHAUST (W/ SEAL PLATE)

$

$

Currently unavailable

13

Toro AU8NG28119

CLAMP-GUILLOTINE

$

$

Not available

14

Toro AU8NG28118

CLAMP-GUILLOTINE

$

$

Currently unavailable

15

Toro AU114264

OVERFLOW LINE - 3/8 ID x 32 Length

$

$

Currently unavailable

16

Toro AU214-1706

CLAMP - Hose Type M # 06

$4.99

$

Usually ships in 3-6 days

0

17

Toro AU121440

INSULATION

$

$

Currently unavailable

18

Toro AUP105529

ELBOW - Rubber, 2 Dia

Note: Not illustrated

$

$

Currently unavailable

19

Toro AU119806

HOSE-CONNECTING

Note: Not illustrated

$

$

Currently unavailable

20

Toro AU121901

TUBE - Lower Radiator

Note: Not illustrated

$

$

Currently unavailable

21

Toro AU110569

CLAMP-TORQUE, CONSTANT

Note: Not illustrated

$28.99

$

Usually ships in 3-6 days

0

22

Toro AU122242

SHIELD-HEAT

Note: Not illustrated

$

$

Currently unavailable

23

Toro AU495-31020

WASHER - 0.203 x 0.469 x 0.049 in CST ZND
(Superseded to 3256-14)

Note: Not illustrated

$0.99

$

In Stock, Qty 20+

0
