DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE EXHAUST ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490145, DD202490146, DD202490148 THRU DD202490150 Parts Diagram

EarthPro Directional Drill Tier 4i

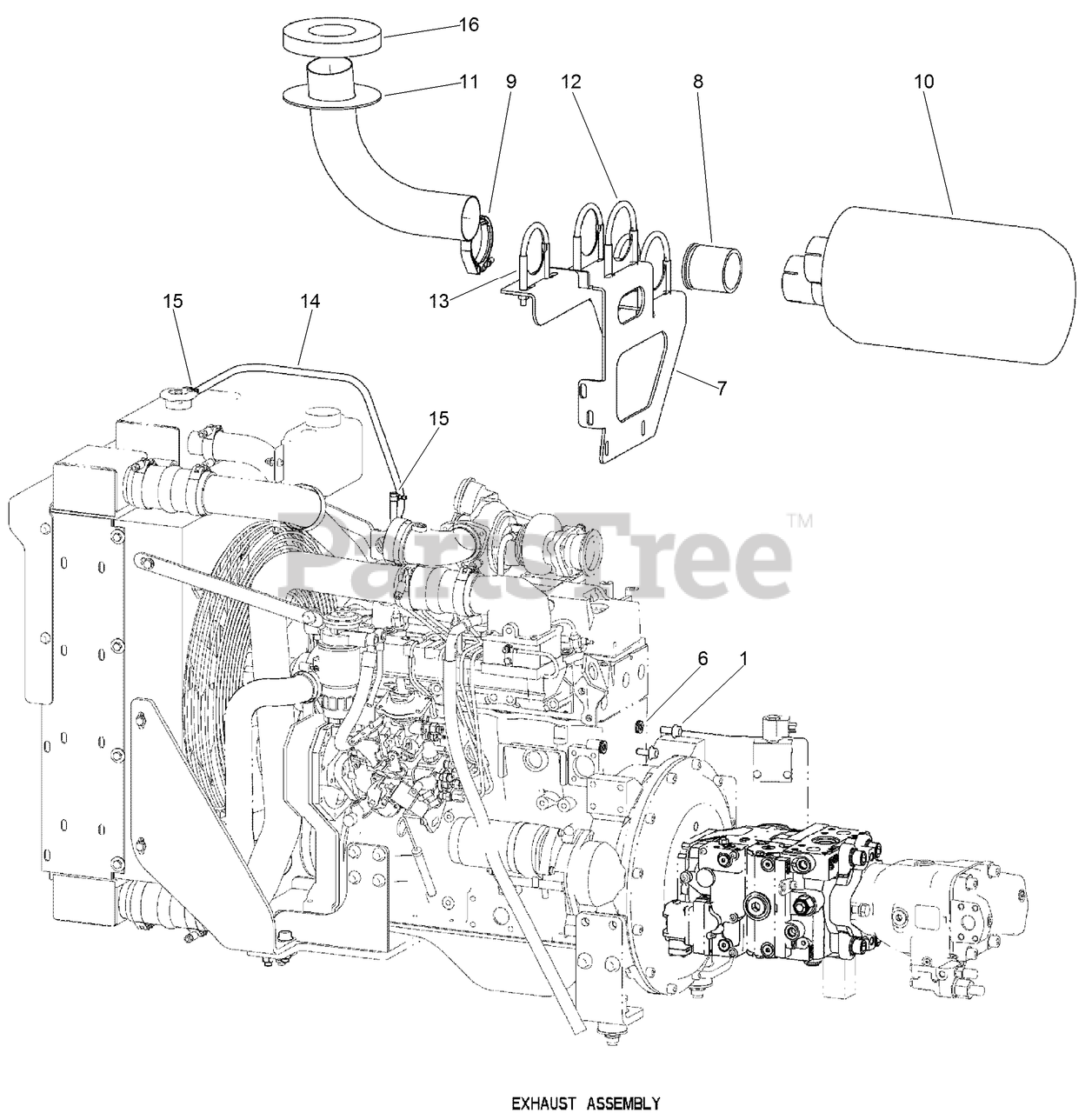

ENGINE EXHAUST ASSEMBLY ONLY MACHINES WITH SERIAL NUMBERS DD202490145, DD202490146, DD202490148 THRU DD202490150 Parts Diagram

  • Title

Toro AU114239

ENGINE GROUP ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

2

Toro AU100830

SCREW

Note: Not illustrated

$3.49

$

In Stock, Qty 7

0

3

Toro AU829-1412

NUT

Note: Not illustrated

$

$

Not available

4

Toro AU829-1310

NUT - M10, Class 10, PHC

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU119672

HOSE - Upper Radiator

Note: Not illustrated

$

$

Currently unavailable

6

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU118530

ASSEMBLY - Muffler Mount
(Superseded to AU118530-03)

$

$

Not available

8

Toro AU112878

FLANGE-ADAPTER, TURBO

$

$

Currently unavailable

9

Toro A170467

CLAMP - T-Bolt

$

$

Currently unavailable

10

Toro AU110822

ASSEMBLY - Muffler
(Superseded to 125-4535)

$

$

Not available

11

Toro AU121439

TUBE-EXHAUST (W/ SEAL PLATE)

$

$

Currently unavailable

12

Toro AU8NG28119

CLAMP-GUILLOTINE

$

$

Not available

13

Toro AU8NG28118

CLAMP-GUILLOTINE

$

$

Currently unavailable

14

Toro AU114264

OVERFLOW LINE - 3/8 ID x 32 Length

$

$

Currently unavailable

15

Toro AU214-1706

CLAMP - Hose Type M # 06

$4.99

$

Usually ships in 3-6 days

0

16

Toro AU121440

INSULATION

$

$

Currently unavailable
