DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE ENCLOSURE SUPPORT AND STOPS Parts Diagram

EarthPro Directional Drill Tier 4i

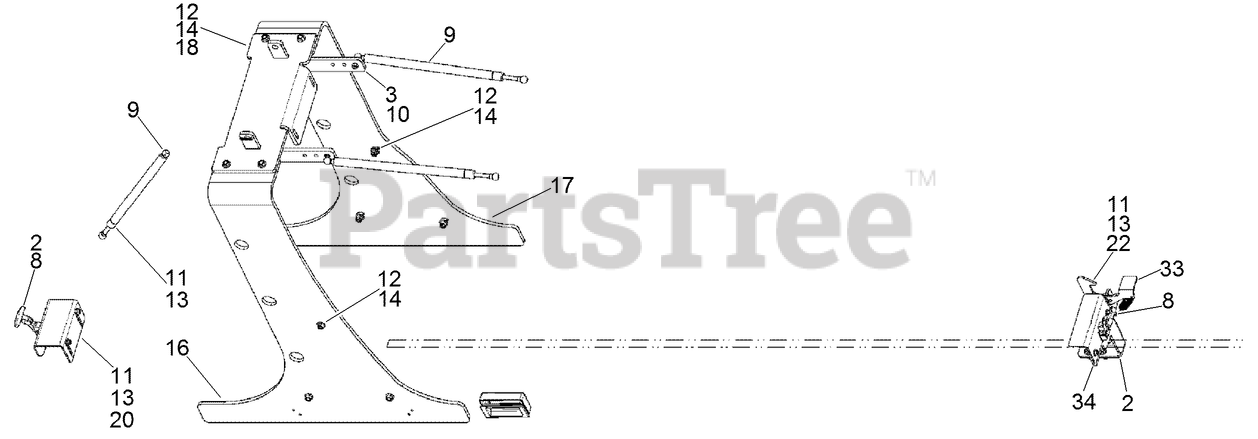

ENGINE ENCLOSURE SUPPORT AND STOPS Parts Diagram

  • Title

Toro AU108265

ASSEMBLY - Engine Enclosure

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU151-559

RIVET - Blind Brk Mdrl .187 x .700 in ZND

$

$

Currently unavailable

3

Toro AU231-4145

NUT - Prev Trq 5/16 GRB ZND Direct

$

$

Not available

8

Toro AU235363A1

LATCH - Flexible Draw

$48.99

$

Usually ships in 3-6 days

0

9

Toro AU32GB5110

SPRING-GAS

$

$

Currently unavailable

10

Toro AU8HH96100

STUD-BALL

$

$

Currently unavailable

11

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

14

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

16

Toro AU108376

PLATE - Hood Mount

$

$

Currently unavailable

17

Toro AU108377

PLATE - Hood Mount
(Superseded to AU108377-03)

$

$

Not available

18

Toro AU109125

ASSEMBLY - Shroud Support
(Superseded to AU109125-03)

$

$

Not available

20

Toro AU109344

STOP - Rear Hood
(Superseded to AU109344-03)

$

$

Not available

22

Toro AU109350

STOP - Front Hood

$

$

Currently unavailable

33

Toro AU111869

LATCH - Hood Safety
(Superseded to AU111869-03)

$

$

Not available

34

Toro AU111871

MOUNT - Hood Safety Latch

$

$

Currently unavailable
