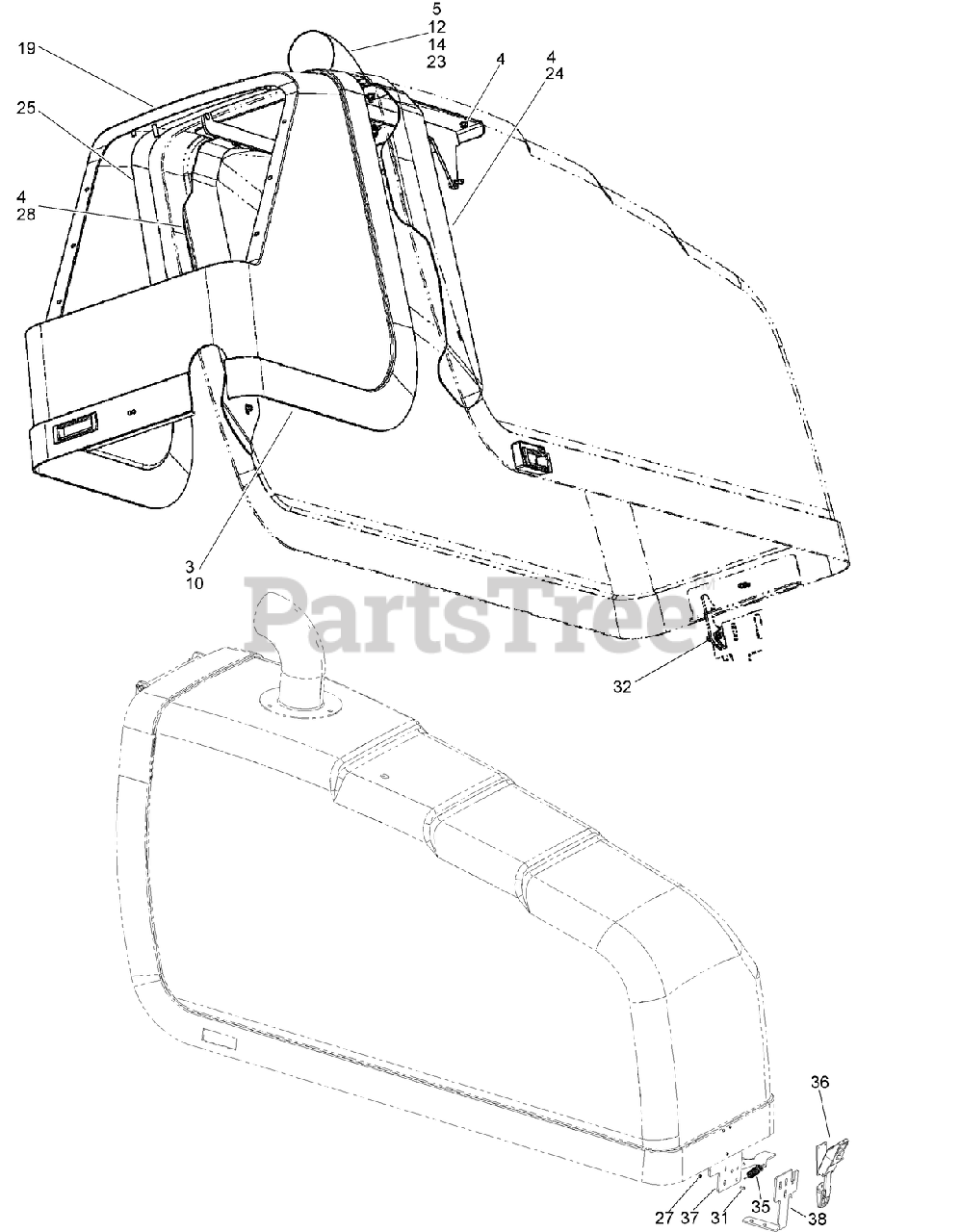

  • Title

Toro AU130525

ENGINE ENCLOSURE GROUP ASM

Note: Not illustrated

$

$

Currently unavailable

3

Toro AU231-4145

NUT - Prev Trq 5/16 GRB ZND Direct

$

$

Not available

4

Toro AU231-5146

NUT-Serr Flg 3/8-16 UNC GR5 ZND
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

5

Toro AU495-21056

WASHER - .562 x 1.375 x .109 in CST ZND

$

$

Not available

10

Toro AU8HH96100

STUD-BALL

$

$

Currently unavailable

12

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

14

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

19

Toro AU109340

ASSEMBLY - Front Hood Mount
(Superseded to AU109340-03)

$

$

Not available

23

Toro AU110186

ASSEMBLY - Exhause Stack
(Superseded to AU110186-03)

$

$

Not available

24

Toro AU110187

PLATE - Guide
(Superseded to AU110187-03)

$

$

Not available

25

Toro AU110191

ASSEMBLY - Front Hood

$

$

Not available

25

Toro AU130524

FRONT HOOD ASM
(Superseded to 127-0993)

$

$

Not available

27

Toro AU193-1004

NUT-#10-24 KEPS
(Superseded to 32149-7)

$0.99

$

In Stock, Qty 20+

0

28

Toro AUAU110280

PLATE - Guide

$

$

Currently unavailable

31

Toro AU363-11014

SCREW - Hex Hd #10 - 24 x 0.875 CST PHC

$

$

Currently unavailable

32

Toro AU100318

SCREW, METRIC FLANGE w/BODY - M8 x 35

$1.99

$

Usually ships in 3-6 days

0

35

Toro AU112966

SPRING-TENSION

$

$

Currently unavailable

36

Toro AU130765

LATCH-DRAW, LOCKABLE

$

$

Not available

37

Toro AU130505

PLATE-HOOD, STOP

$

$

Currently unavailable

38

Toro AU130543

MOUNT-HOOD

$

$

Currently unavailable
