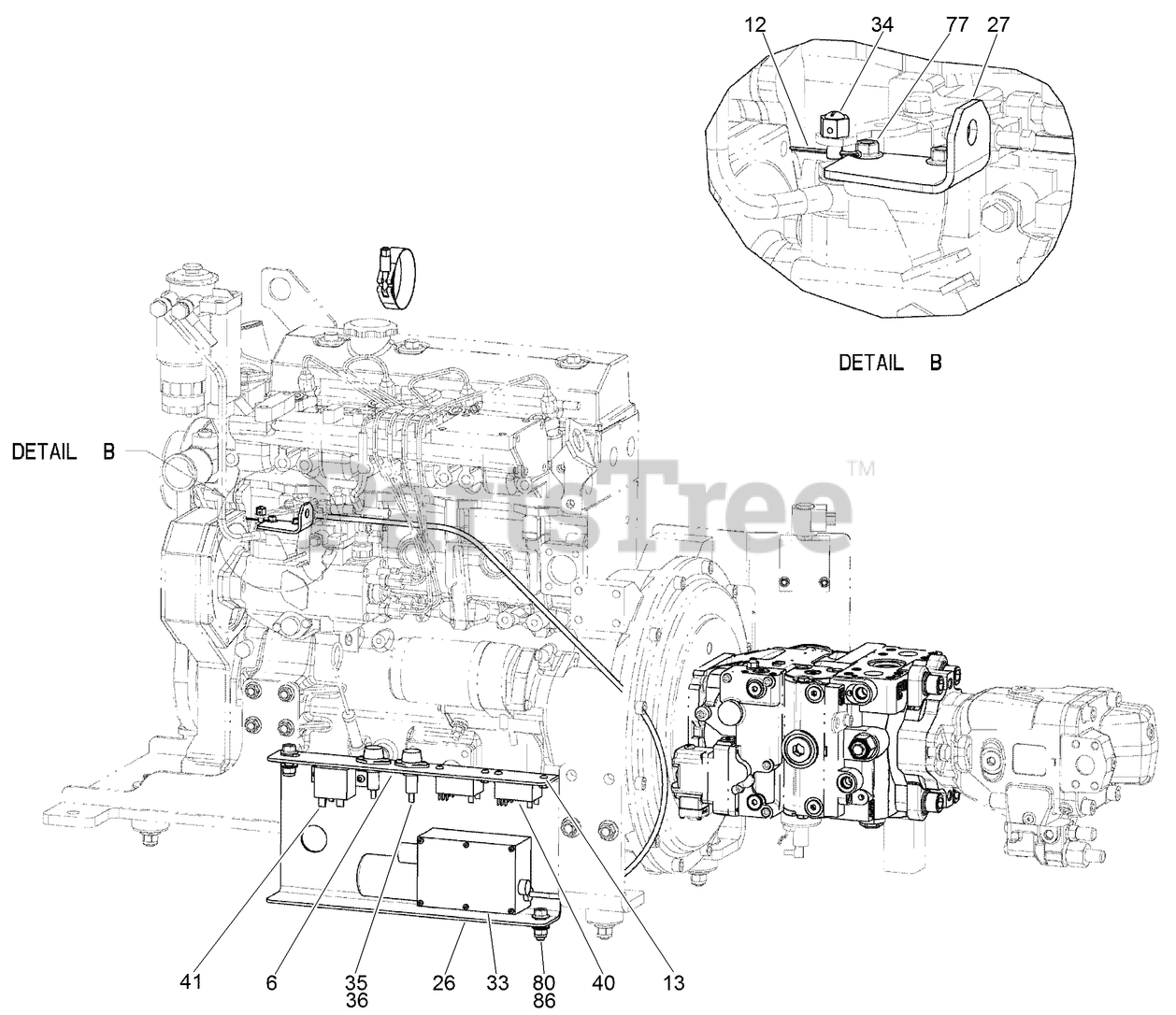

DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE ELECTRICAL PANEL ASSEMBLY MACHINE SERIAL NUMBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

EarthPro Directional Drill Tier 4i

ENGINE ELECTRICAL PANEL ASSEMBLY MACHINE SERIAL NUMBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

  • Title

Toro AU20GB3000

ASSEMBLY - Engine

Note: Not illustrated

$

$

Currently unavailable

6

Toro AU231-14409

NUT - Prev Trq # 10 GRB ZND Insert
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

12

Toro AU432-416

PIN - Cotter .062 x 1.00 in ZN
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

13

Toro AU440-1108

SCREW - PHd Type 1 #10 - 24 x .500 CST ZND

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU12GB3041

RELAY BOARD

$

$

Currently unavailable

27

Toro AU12GB3042

BRACKET - Throttle
(Superseded to AU12GB3042-03)

$

$

Not available

33

Toro AU6EE30101

ACTUATOR-THROTTLE

$

$

Currently unavailable

34

Toro AU8EE30101-1

NUT - Cable Retaining
(Superseded to 125-4534)

$

$

Not available

35

Toro AU8EF10103

FUSE - Miget, 250 VDC, 30A

$

$

Currently unavailable

36

Toro AU8EF19002

HOLDER - Fuse

$

$

Currently unavailable

40

Toro AU8EP48253

RELAY - 2 Pole 12 VDC Panel Mount

$

$

Currently unavailable

41

Toro AU8EP48283

RELAY - Power, 12 VDC

$

$

Currently unavailable

77

Toro AU100386

SCREW, METRIC FLANGE FULL - M6 x 16
(Superseded to AU100868)

$

$

Not available

80

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

86

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0
