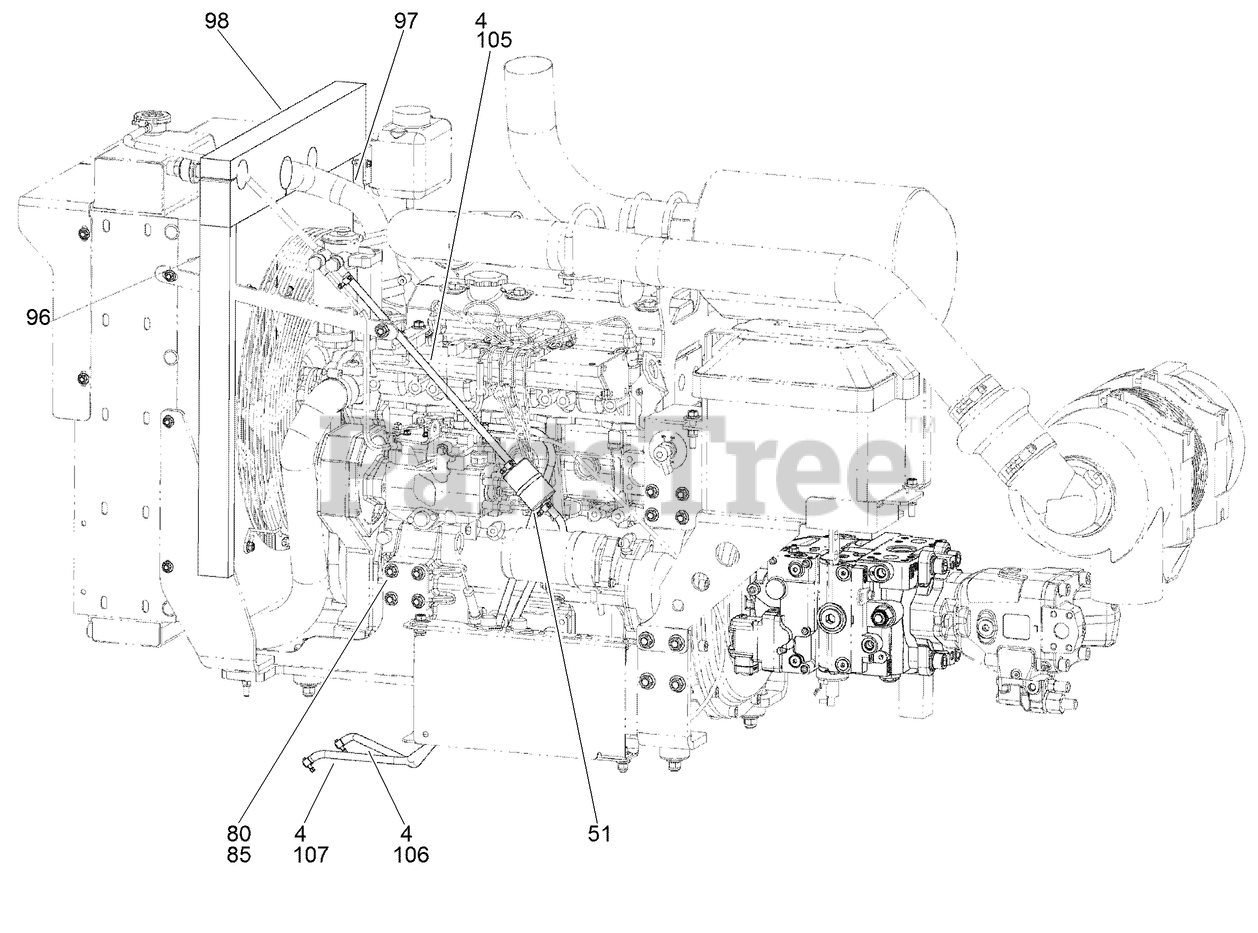

DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE COOLANT OVERFLOW AND FUEL FILTER ASSEMBLY MACHINE SERIAL NUMBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

EarthPro Directional Drill Tier 4i

ENGINE COOLANT OVERFLOW AND FUEL FILTER ASSEMBLY MACHINE SERIAL NUMBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

  • Title

Toro AU20GB3000

ASSEMBLY - Engine

Note: Not illustrated

$

$

Currently unavailable

4

Toro AU214-1706

CLAMP - Hose Type M # 06

$4.99

$

Usually ships in 3-6 days

0

51

Toro AU8NG10019-24

FILTER-INLINE FUEL

$

$

Currently unavailable

80

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

85

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

96

Toro AU110541

FOAM SEAL

$

$

Currently unavailable

97

Toro AU110542

FOAM SEAL

$

$

Currently unavailable

98

Toro AU110543

FOAM SEAL

$

$

Currently unavailable

105

Toro AU112471

FUEL LINE - 3/8 ID, 16 Length

$

$

Currently unavailable

106

Toro AU112472

FUEL LINE - 3/8 ID, 42 Length

$

$

Currently unavailable

107

Toro AU112492

FUEL LINE - Return, 3/8 ID, 40 Length

$

$

Currently unavailable
