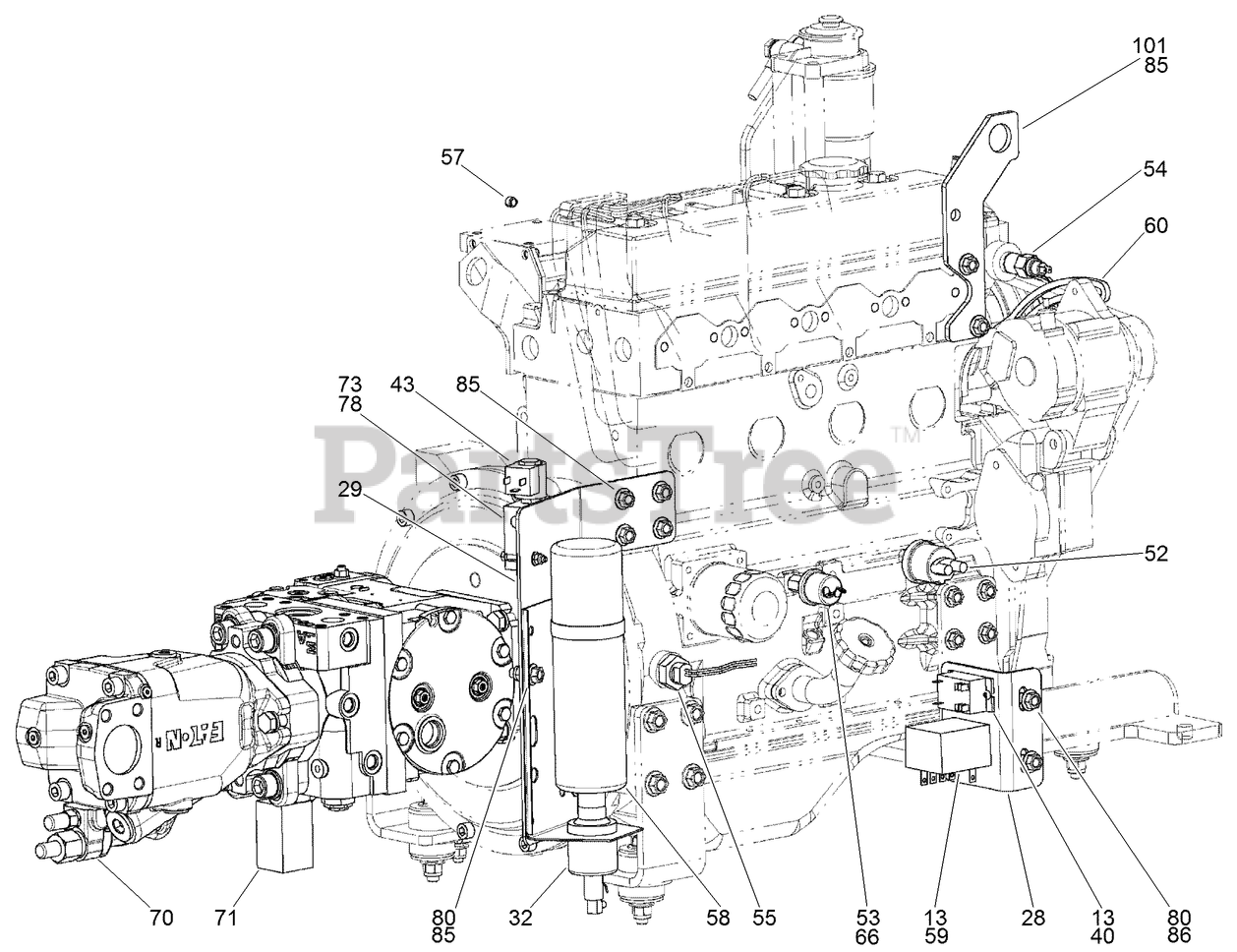

DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) ENGINE COLD START AND MISC ASSEMBLIES MACHINE SERIAL NUMBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

EarthPro Directional Drill Tier 4i

ENGINE COLD START AND MISC ASSEMBLIES MACHINE SERIAL NUMBERS THRU DD202490144 AND INCLUDING DD202490147 Parts Diagram

  • Title

Toro AU20GB3000

ASSEMBLY - Engine

Note: Not illustrated

$

$

Currently unavailable

13

Toro AU440-1108

SCREW - PHd Type 1 #10 - 24 x .500 CST ZND

$0.99

$

Usually ships in 3-6 days

0

28

Toro AU12GB3052

BRACKET - Relay
(Superseded to AU12GB3052-03)

$

$

Not available

29

Toro AU12GB3061

MOUNT - Cold Start

$

$

Currently unavailable

32

Toro AU6EE06001

KIT - Cold Start

$

$

Currently unavailable

40

Toro AU8EP48253

RELAY - 2 Pole 12 VDC Panel Mount

$

$

Currently unavailable

43

Toro AU8HV80118

VALVE - Dir, Cart, 3W2P, SOL, 12VDC

$

$

Currently unavailable

52

Toro AU8NG10019-27

SENSOR-PRESSURE, OIL

$

$

Currently unavailable

53

Toro AU8NG10019-28

SENSOR-PRESSURE, OIL

$

$

Currently unavailable

54

Toro AU8NG10019-29

SENSOR-COOLANT

$

$

Currently unavailable

55

Toro AU8NG10019-30

SENSOR-RPM, MAG PICKUP

$

$

Currently unavailable

57

Toro AU8NG10019-34-2

ATOMIZER - Ether Start

$

$

Currently unavailable

58

Toro AU8NG10019-34-4

BOTTLE - Ether

$

$

Currently unavailable

59

Toro AU8NG10019-35

RELAY-CONTROL, ENGINE

$

$

Currently unavailable

60

Toro AU8NG10019-51

BRACKET-Alternator

$

$

Currently unavailable

66

Toro AU8PB80202

ADAPTER - Pipe

$

$

Currently unavailable

70

Toro AU8PH50041

PUMP - Hydraulic, Load Sense (Serial Numbers DD202480145 and Prior)

$

$

Currently unavailable

70

Toro AU119079

HYD LOAD SENSE PISTON PUMP ASM

$

$

Currently unavailable

71

Toro AU8PH60051

HYD HYDROSTAT PUMP ASM

$

$

Not available

73

Toro AU100314

SCREW, METRIC FLANGE w/BODY - M6 x 45

$2.49

$

Usually ships in 3-6 days

0

78

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

80

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

85

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

86

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

101

Toro AU110823

PLATE-HOIST POINT

$

$

Currently unavailable
