DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) CARRIAGE ASSEMBLY Parts Diagram

EarthPro Directional Drill Tier 4i

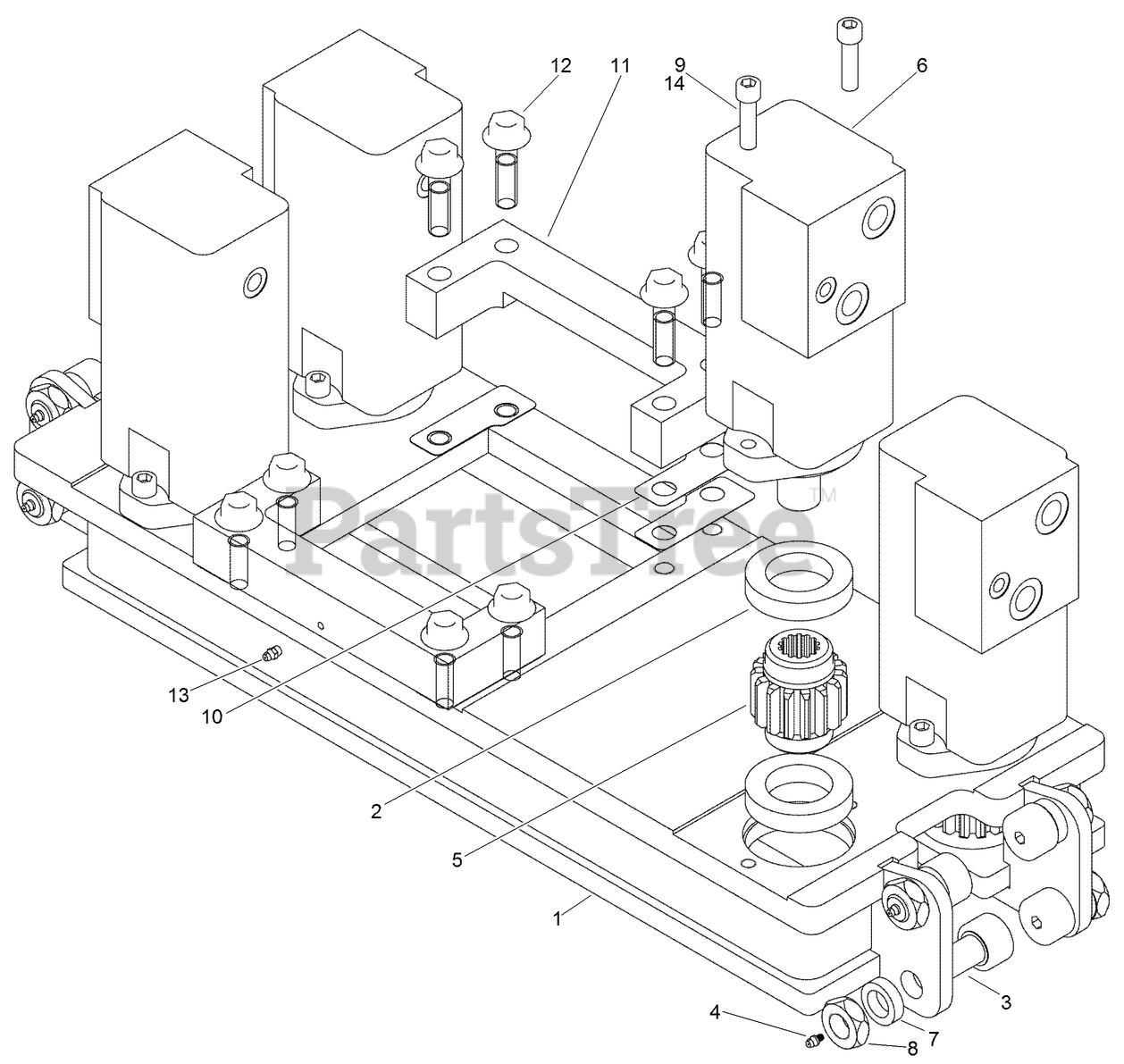

CARRIAGE ASSEMBLY Parts Diagram

  • Title

Toro AU110529

ASSEMBLY - Carriage

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU110514

CARRIAGE - Weldment/Machining

$

$

Currently unavailable

2

Toro AU8CF40008

BEARING-BALL, DOUBLE SEALED

$

$

Currently unavailable

3

Toro AU8CF30025

BEARING-ROLLER, CAM

$

$

Currently unavailable

4

Toro AU219-17

FITTING - STR Grease 3/16
(Superseded to 302-63)

$2.99

$

In Stock, Qty 19

0

5

Toro AU12GB4108

PINION-INPUT, 15T

$

$

Currently unavailable

6

Toro AU8HM24035

HYD MOTOR ASM

$

$

Currently unavailable

7

Toro AU12GB4025

SPACER-FOLLOWER, CAM

$

$

Currently unavailable

8

Toro AU131-465

NUT - Jam, Hex, 7/8 - 14 NF, Nyloc
(Superseded to 32-9660)

$3.49

$

In Stock, Qty 20+

0

9

Toro AU864-12045

SCREW-HSFH

$2.49

$

Usually ships in 3-6 days

0

10

Toro AU111132

SHIM-BLOCK, ROTARY SLIDE

$

$

Currently unavailable

11

Toro AU110676

BLOCK - Rotary Slide

$

$

Not available

12

Toro AU100362

SCREW-FLANGE

$

$

Currently unavailable

13

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

14

Toro AU892-11012

WASHER - Spring Lock Reg 12mm ZND

$0.99

$

Usually ships in 3-6 days

0
