DD 2024 C - Toro EarthPro Directional Drill Tier 4i (2013) BATTERY CABLES AND THROTTLE SERIAL NUMBERS DD20249150 THRU PRIOR Parts Diagram

EarthPro Directional Drill Tier 4i

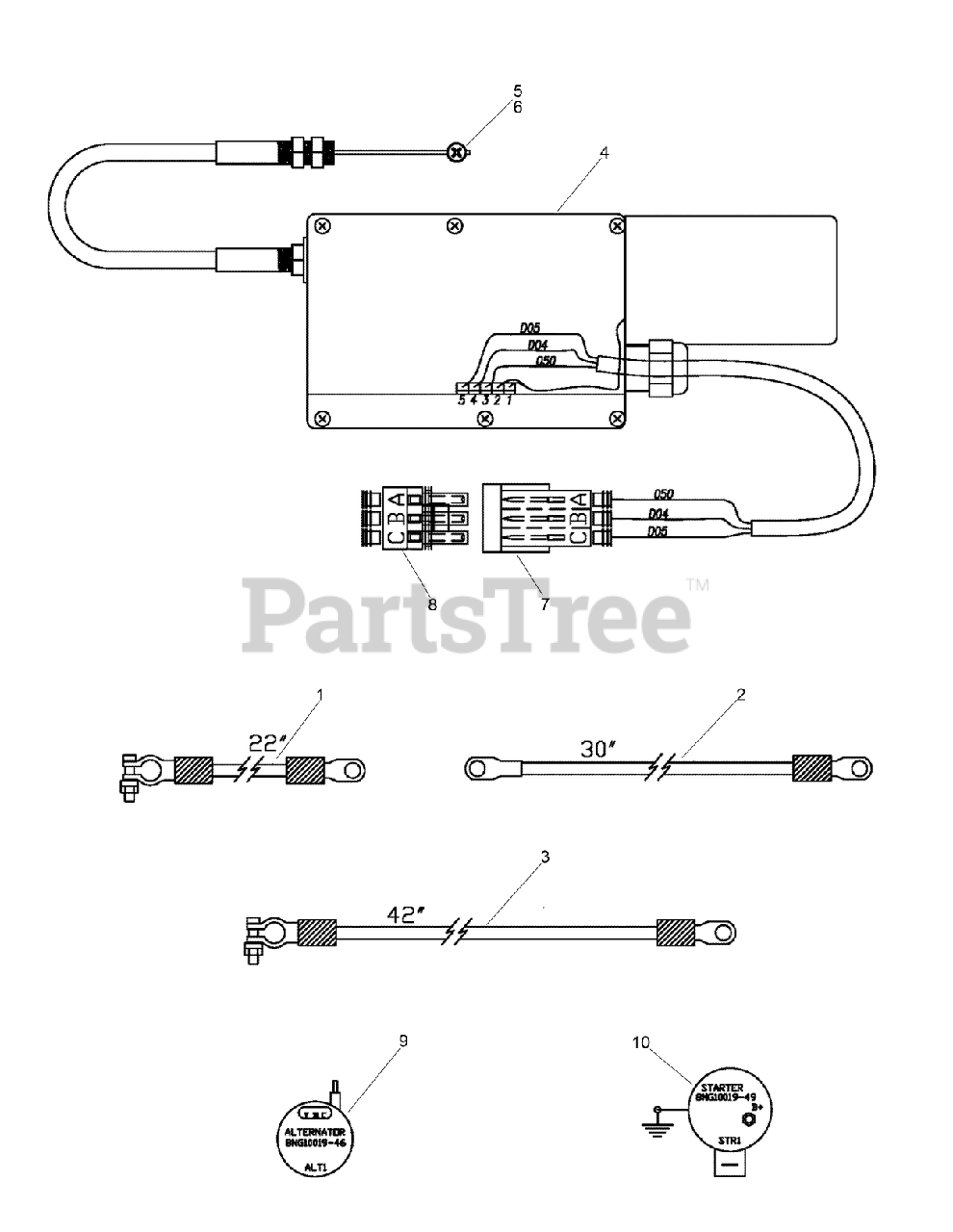

BATTERY CABLES AND THROTTLE SERIAL NUMBERS DD20249150 THRU PRIOR Parts Diagram

  • Title
1

Toro AU8EP02206-02

CABLE - Battery, Positive

$

$

Currently unavailable

2

Toro AU8ET20005-02

CABLE - Battery, Extension

$

$

Currently unavailable

3

Toro AU8EP02207-02

CABLE - Battery, Negative

$

$

Currently unavailable

4

Toro AU6EE30101

ACTUATOR-THROTTLE

$

$

Currently unavailable

5

Toro AU6EE30101-1

THROTTLE PIVOT - 1/4 Shaft

$

$

Currently unavailable

6

Toro AU8CP10204

PIN - Cotter

$

$

Currently unavailable

7

Toro AU6EC12114-01

CONNECTOR - 3 Pin, Weatherpack

$

$

Currently unavailable

8

Toro AU6EC12115-01

CONNECTOR - 3 Socket

$

$

Currently unavailable

9

Toro AU8NG10019-46

ALTERNATOR

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Toro AU21001544

BOOT - Battery, Red

Note: Not illustrated

$

$

Currently unavailable

12

Toro AU21001543

BOOT - Battery, Black

Note: Not illustrated

$

$

Currently unavailable

13

Toro AU21001545

BOOT - RED (+) Alternator Terminal

Note: Not illustrated

$

$

Currently unavailable
