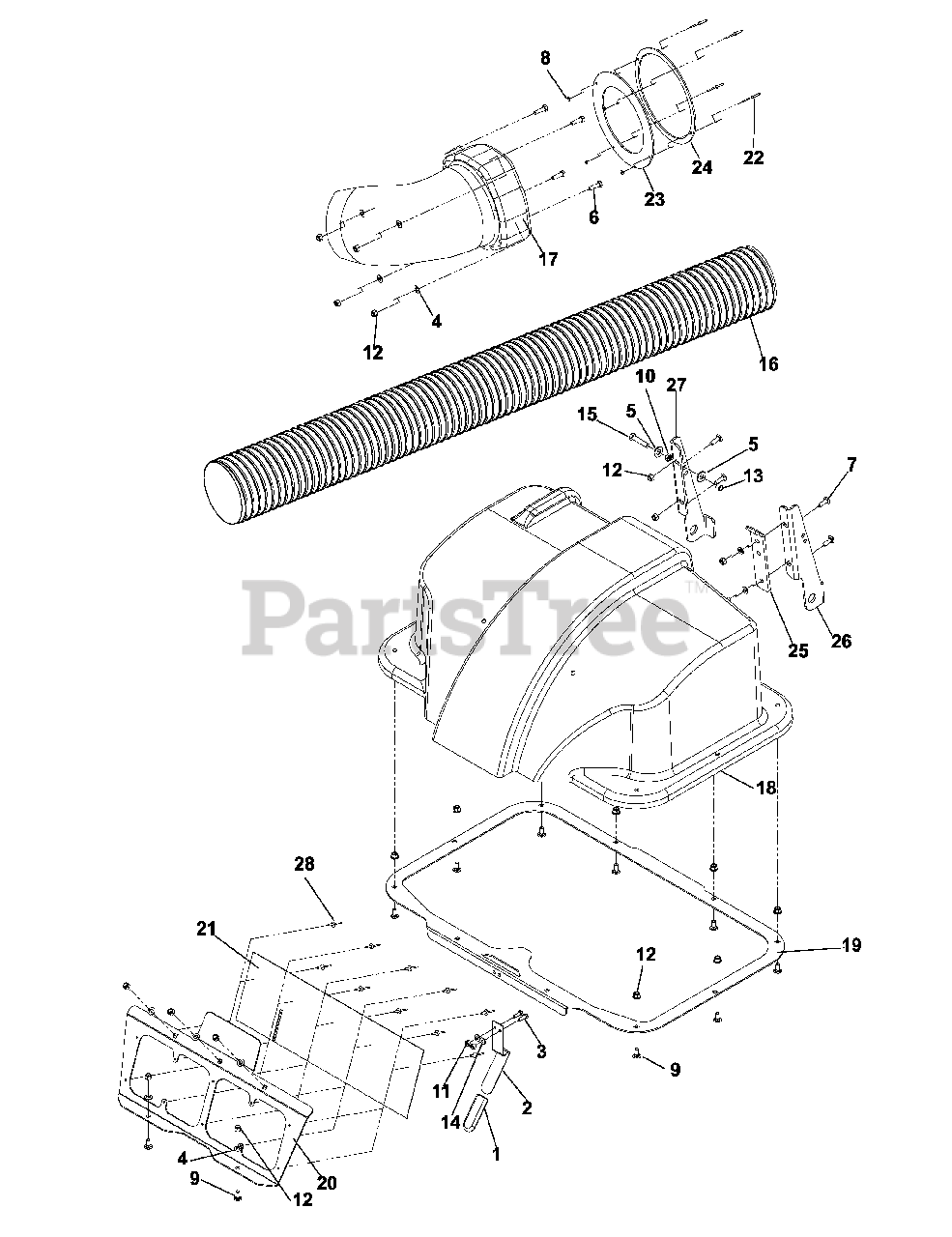

DCR2 (539114892) - Dixon Grass Collection System (2007) HOOD Parts Diagram

Grass Collection System

HOOD Parts Diagram

  • Title
1

Dixon 539115408

LATCH ROD GRIP

$1.99

$

Usually ships in 3-10 days

0

2

Dixon 539115445

G.C. CATCH HANDLE
(Superseded to 539115446)

$145.99

$

Usually ships in 3-10 days

0

3

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

4

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

5

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

6

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

7

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

8

Dixon 539115530

WASHER .170 I.D.

$

$

Not available

9

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

10

Dixon 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

11

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

12

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

13

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

14

Dixon 539115562

1/4` SAE FLAT WASHER
(Superseded to 539990055)

$3.99

$

In Stock, Qty 19

0

15

Dixon 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539115392

FLEX HOSE 6 X 60

$303.99

$

Usually ships in 3-10 days

0

17

Dixon 539117731

INLET TUBE

$160.99

$

Usually ships in 3-10 days

0

18

Dixon 539117740

HOOD 2 BAGGER

$

$

Not available

19

Dixon 539117741

HOOD BOTTOM PLATE

$

$

Not available

20

Dixon 539117742

RETAINER SCREEN

$

$

Not available

21

Dixon 539117743

VENT SCREEN

$

$

Not available

22

Dixon 539117820

5/32 STEEL POP RIVET

$

$

Not available

23

Dixon 539117965

BAGGER TUBE BOOT

$7.49

$

Usually ships in 3-10 days

0

24

Dixon 539117966

BOOT BACKING PLATE

$42.99

$

Usually ships in 3-10 days

0

25

Dixon 539117988

CLAMSHELL SUPPORT PLATE

$66.99

$

Usually ships in 3-10 days

0

26

Dixon 539118073

RH HINGE PIVOT

$

$

Not available

27

Dixon 539118074

LH HINGE PIVOT

$

$

Not available

28

Dixon 539119413

LARGE DOME RIVET

$3.99

$

Usually ships in 3-10 days

0

Dixon 539115775

NYLON WIRE TIE

Note: (Not Shown)

$3.99

$

Usually ships in 3-10 days

0
