DCKC (539130211) - Dixon Grass Collection System (2008) CLAMSHELL LINKAGE - RAM Parts Diagram

Grass Collection System

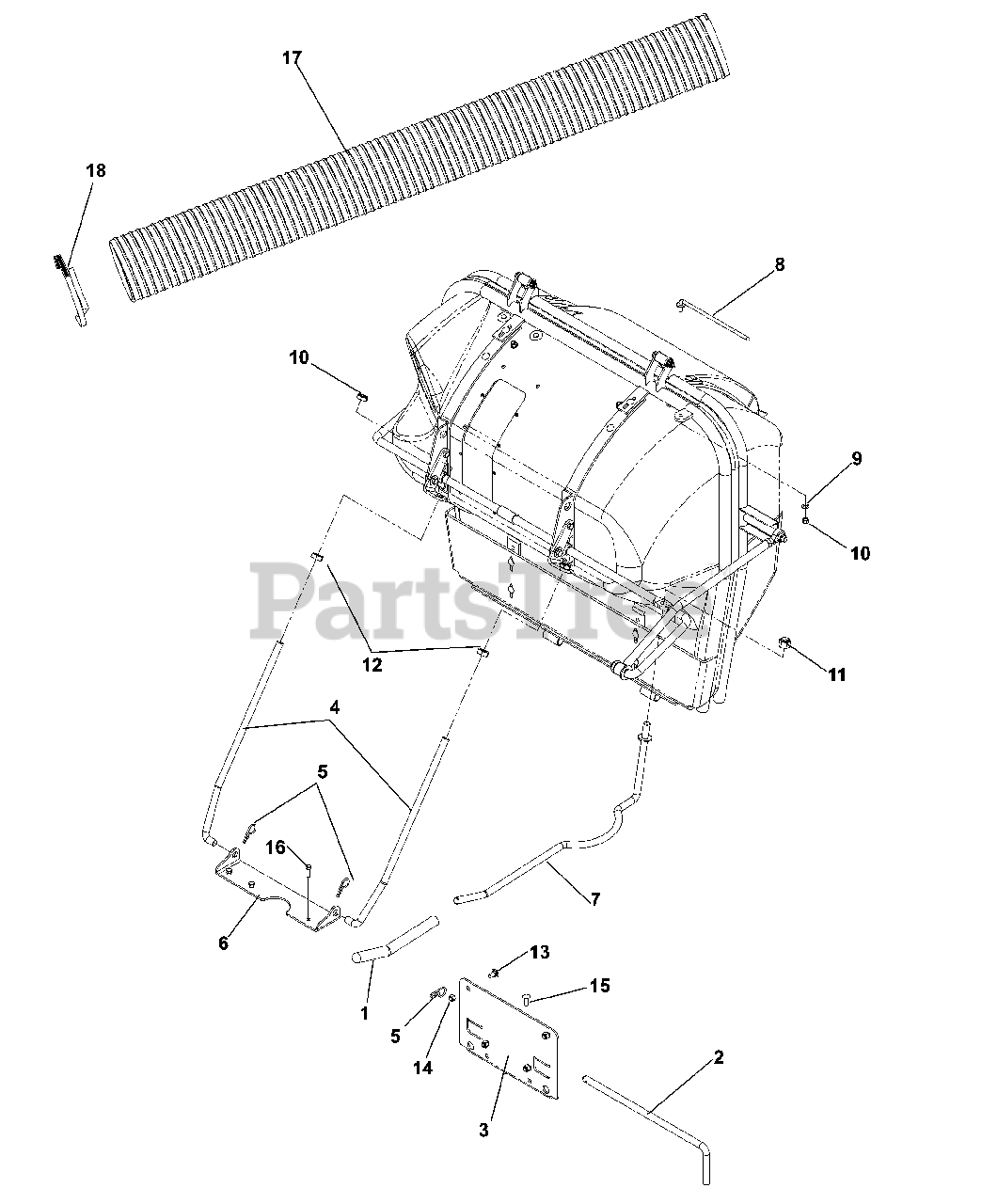

CLAMSHELL LINKAGE - RAM Parts Diagram

  • Title

1

Dixon 539116443

BAR SLEEVE

$4.99

$

Usually ships in 3-10 days

0

2

Dixon 539119372

HINGE PIN

$30.99

$

Usually ships in 3-10 days

0

3

Dixon 539114781

BRACKET, MOUNT, LOWER

$236.99

$

Usually ships in 3-10 days

0

4

Dixon 539114783

LINKAGE, SUPPORT

$141.99

$

Usually ships in 3-10 days

0

5

Dixon 539115501

PIN, COTTER 1 3/4

$3.99

$

In Stock, only 1 left!

0

6

Dixon 539114786

BRACKET, SUPPORT, LINKAGE

$70.99

$

Usually ships in 3-10 days

0

7

Dixon 539114824

LINKAGE, ARM, DUMP

$424.99

$

Usually ships in 3-10 days

0

8

Dixon 539114816

LINKAGE.LATCH

$31.99

$

Usually ships in 3-10 days

0

9

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

10

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Dixon 539110340

NUT 5/8-11 NYLOC

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539100476

NUT JAM 5/8-11 HEX

$3.99

$

Usually ships in 3-10 days

0

13

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

16

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

17

Dixon 539115392

FLEX HOSE 6 X 60

$303.99

$

Usually ships in 3-10 days

0

18

Dixon 539115719

HOSE CLAMP

$21.99

$

Usually ships in 3-10 days

0
