DCKC (539130211) - Dixon Grass Collection System (2007) CLAMSHELL REAR ASSEMBLY Parts Diagram

Grass Collection System

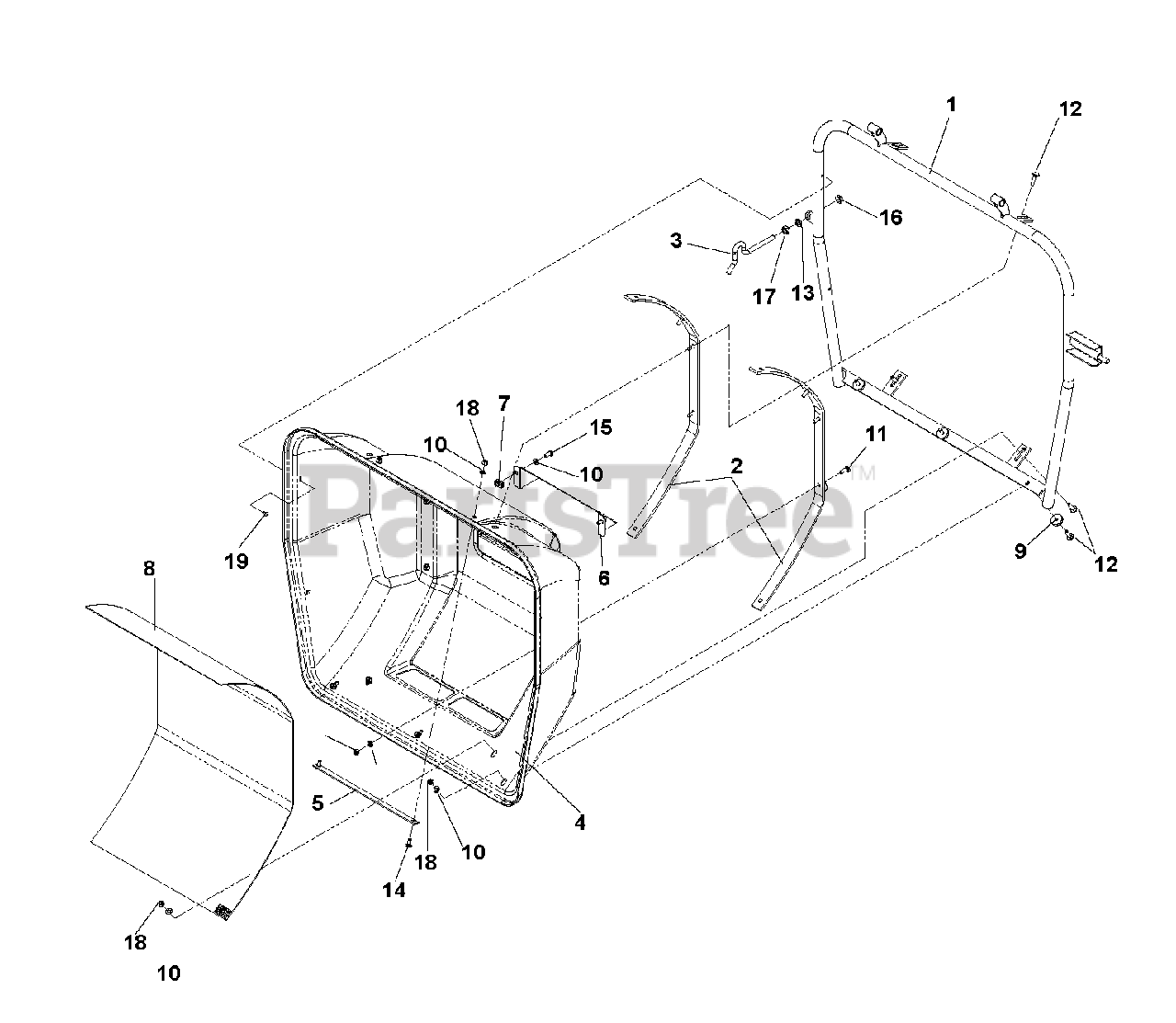

CLAMSHELL REAR ASSEMBLY Parts Diagram

  • Title

1

Dixon 539117967

DRIVE PULLEY

$

$

Not available

2

Dixon 539119396

STRAP

$129.99

$

Usually ships in 3-10 days

0

3

Dixon 539119367

HOOK LATCH

$182.99

$

Usually ships in 3-10 days

0

4

Dixon 539119377

CLAM SHELL (BACK)
(Superseded to 580978401)

$262.99

$

Usually ships in 3-10 days

0

5

Dixon 539119458

STRAP

$42.99

$

Usually ships in 3-10 days

0

6

Dixon 539117543

CLAMSHELL VENT

$78.99

$

Usually ships in 3-10 days

0

7

Dixon 539115677

CLIP NUT 5/16-18

$3.49

$

Usually ships in 3-10 days

0

8

Dixon 539119412

VENT SCREEN

$32.99

$

Usually ships in 3-10 days

0

9

Dixon 539115789

WASHER NYLON

$7.99

$

Usually ships in 3-10 days

0

10

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

11

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, Qty 20+

0

12

Dixon 539100472

BOLT, CARRIAGE 5/16X1-1/4

$5.49

$

In Stock, Qty 20+

0

13

Dixon 539990254

WASHER 1/2" SPLIT LOCK

$4.99

$

Usually ships in 3-10 days

0

14

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

15

Dixon 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

16

Dixon 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$4.99

$

In Stock, only 2 left!

0

17

Dixon 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 12

0

18

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Dixon 539119413

LARGE DOME RIVET

$3.99

$

Usually ships in 3-10 days

0
