DCK3 (539114863) - Dixon Grass Collection System (2007) HITCH ASSEMBLY Parts Diagram

Grass Collection System

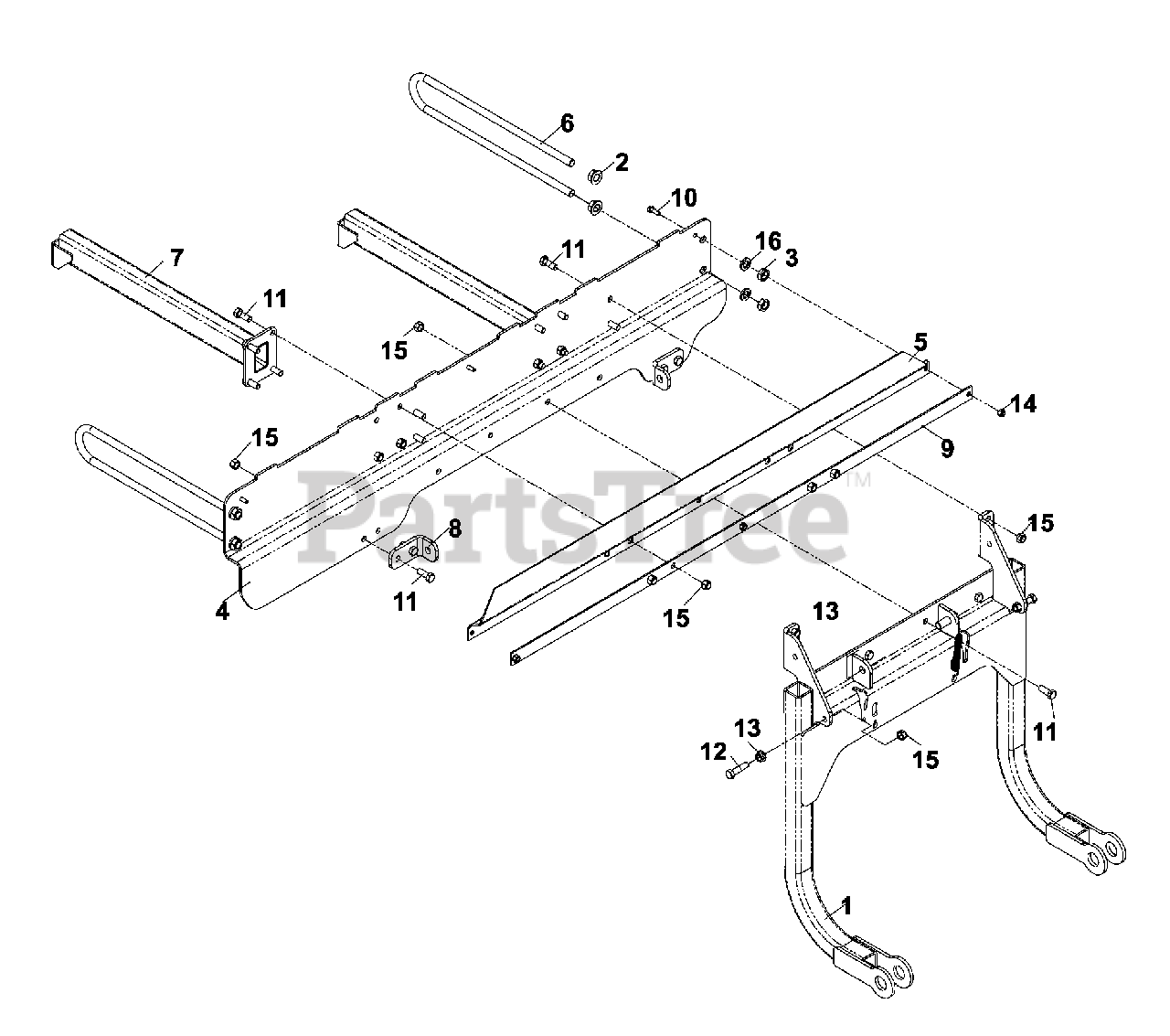

HITCH ASSEMBLY Parts Diagram

  • Title

1

Dixon 539111155

HITCH WELDMENT

$424.99

$

Usually ships in 3-10 days

0

2

Dixon 539111187

NUT 1/2-13 HEX

$3.99

$

Usually ships in 3-10 days

0

3

Dixon 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

4

Dixon 539111157

MOUNT Z BRACE

$141.99

$

Usually ships in 3-10 days

0

5

Dixon 539111167

SEAL, RUBBER

$27.99

$

Usually ships in 3-10 days

0

6

Dixon 539111158

SUPPORT, OUTER

$39.99

$

Usually ships in 3-10 days

0

7

Dixon 539111162

SUPPORT ARM WELDMENT

$193.99

$

Usually ships in 3-10 days

0

8

Dixon 539111267

BRACKET, SUPPORT

$11.99

$

Usually ships in 3-10 days

0

9

Dixon 539111171

SEAL STRAP

$27.99

$

Usually ships in 3-10 days

0

10

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

11

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

12

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

13

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

15

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Dixon 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0
