DCG3 (539114873) - Dixon Grass Collection System (2007) MOUNTING KIT Parts Diagram

Grass Collection System

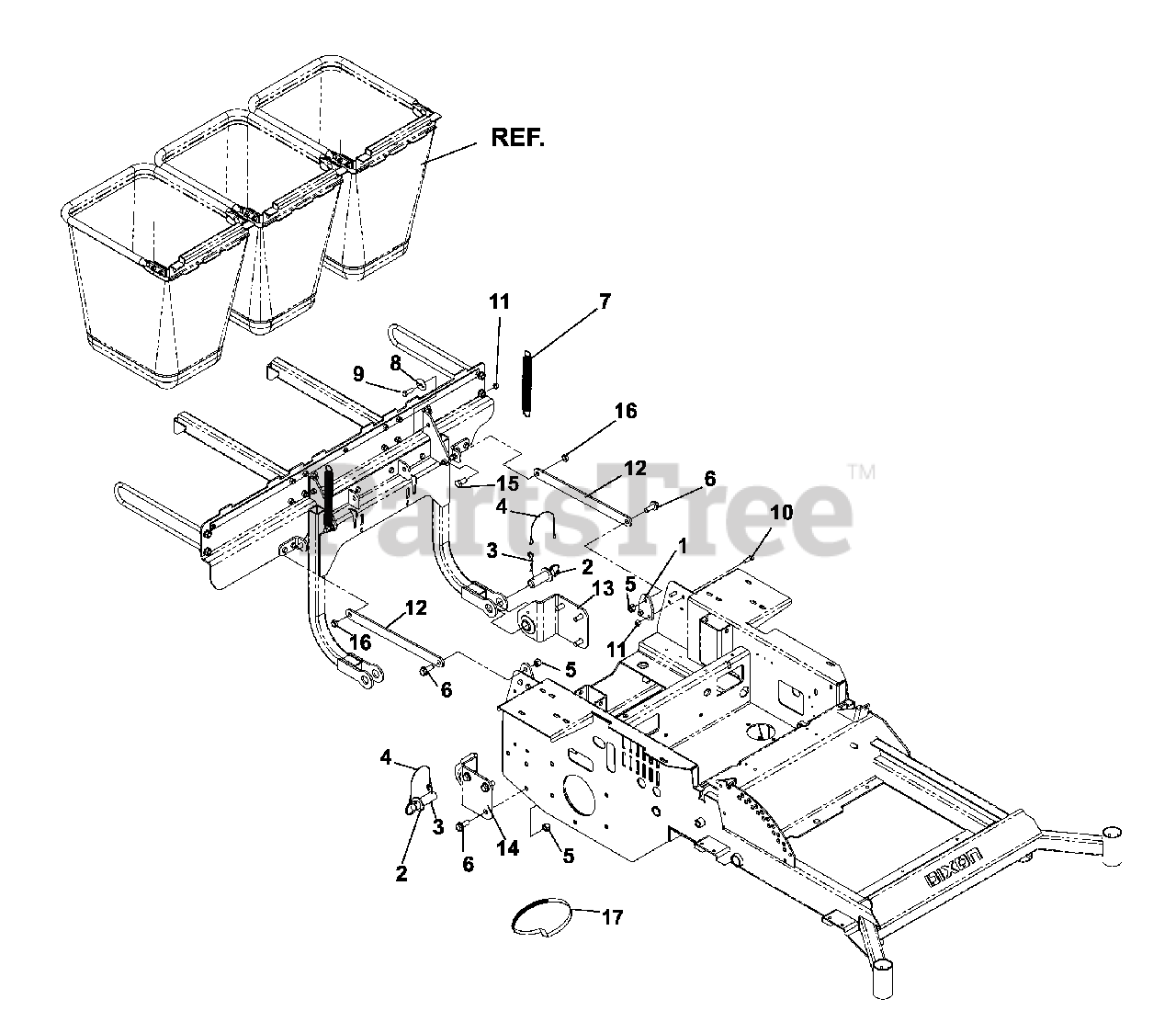

MOUNTING KIT Parts Diagram

  • Title

1

Dixon 539111215

SUPPORT BRACKET

$9.49

$

Usually ships in 3-10 days

0

2

Dixon 539111206

HITCH PIN

$24.99

$

Usually ships in 3-10 days

0

3

Dixon 539111192

HAIRPIN

$6.99

$

Usually ships in 3-10 days

0

4

Dixon 539102563

LANYARD

$9.99

$

Usually ships in 3-10 days

0

5

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

6

Dixon 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

7

Dixon 539111191

SPRING

$

$

Not available

8

Dixon 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 8

0

9

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

10

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

11

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

12

Dixon 539114674

STRAP

$

$

Not available

13

Dixon 539111199

HITCH BRACKET WLDMT

$84.99

$

Usually ships in 3-10 days

0

14

Dixon 539111201

HITCH BRACKET WLDMT, RT, LRG

$84.99

$

Usually ships in 3-10 days

0

15

Dixon 539990646

HHCS 1/2-13 X 1

$3.99

$

Usually ships in 3-10 days

0

16

Dixon 539115609

NUT, 1/2-13 THIN PROF NYL
(Superseded to 539108010)

$4.99

$

In Stock, only 3 left!

0

17

Dixon 539115719

HOSE CLAMP

$21.99

$

Usually ships in 3-10 days

0
