DC 500 (25-0125) - Husqvarna Dump Cart (2005-06) Dump Cart Assembly Parts Diagram

Dump Cart

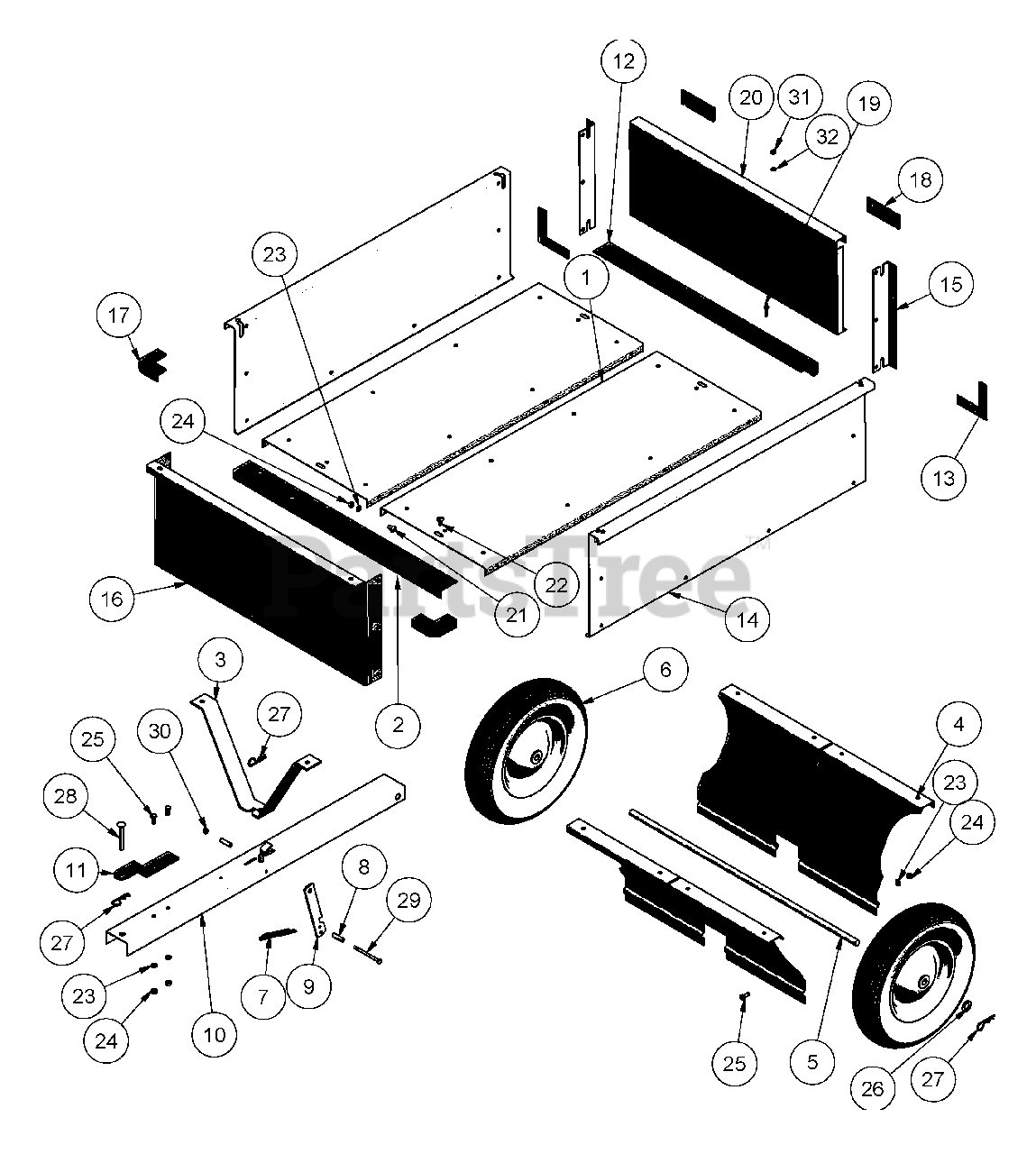

Dump Cart Assembly Parts Diagram

  • Title
1

Husqvarna 234A1

BOTTOM PANEL

$

$

Currently unavailable

2

Husqvarna 234A2

FRONT CROSS BRACE

$

$

Currently unavailable

3

Husqvarna 234A3

TONGUE SUPPORT

$

$

Currently unavailable

4

Husqvarna 234A4

WHEEL AXLE SUPPORT

$

$

Currently unavailable

5

Husqvarna 234A5

WHEEL AXLE

$

$

Currently unavailable

6

Husqvarna 234A6

WHEEL/TIRE ASSEMBLY

$

$

Currently unavailable

7

Husqvarna 234A7

LATCH SPRING

$

$

Currently unavailable

8

Husqvarna 234A8

LATCH SPACER

$

$

Currently unavailable

9

Husqvarna 234A9

TONGUE LATCH

$

$

Currently unavailable

10

Husqvarna 234A10

HITCH TONGUE

$

$

Currently unavailable

11

Husqvarna 234A11

HITCH PIN BRACKET

$

$

Currently unavailable

12

Husqvarna 234A12

REAR CROSS BRACE

$

$

Currently unavailable

13

Husqvarna 234A13

REAR CORNER BRACKET

$

$

Currently unavailable

14

Husqvarna 234A14

SIDE PANEL

$

$

Currently unavailable

15

Husqvarna 234A15

REAR CORNER BRACE

$

$

Currently unavailable

16

Husqvarna 234A16

FRONT PANEL

$

$

Currently unavailable

17

Husqvarna 234A17

FRONT CORNER BRACE

$

$

Currently unavailable

18

Husqvarna 234A18

TAILGATE LATCH

$

$

Currently unavailable

19

Husqvarna 234A19

TAILGATE PIN

$

$

Currently unavailable

20

Husqvarna 234A20

TAILGATE

$

$

Currently unavailable

21

Husqvarna 234B1

M8 X 16 TRUSS HEAD BOLT

$

$

Currently unavailable

22

Husqvarna 234B2

M8 X 20 TRUSS HEAD BOLT

$

$

Currently unavailable

23

Husqvarna 234B3

8MM LOCK WASHER

$

$

Currently unavailable

24

Husqvarna 234B4

8MM HEX NUT

$

$

Currently unavailable

25

Husqvarna 234B5

M8 X 20 HEX BOLT

$

$

Currently unavailable

26

Husqvarna 234B6

20MM FLAT WASHER

$

$

Currently unavailable

27

Husqvarna 234B7

3MM HAIRPIN

$

$

Currently unavailable

28

Husqvarna 234B8

HITCH PIN

$

$

Currently unavailable

29

Husqvarna 234B9

M6 X 90 HEX BOLT

$

$

Currently unavailable

30

Husqvarna 234B10

6MM NYLON NUT

$

$

Currently unavailable

31

Husqvarna 234B11

6MM HEX NUT

$

$

Currently unavailable

32

Husqvarna 234B12

6-8MM FLAT WASHER

$

$

Currently unavailable
