DC 100 (45-01011) - Husqvarna Dump Cart (1993-06) Repair Parts For Utility Carts Parts Diagram

Dump Cart

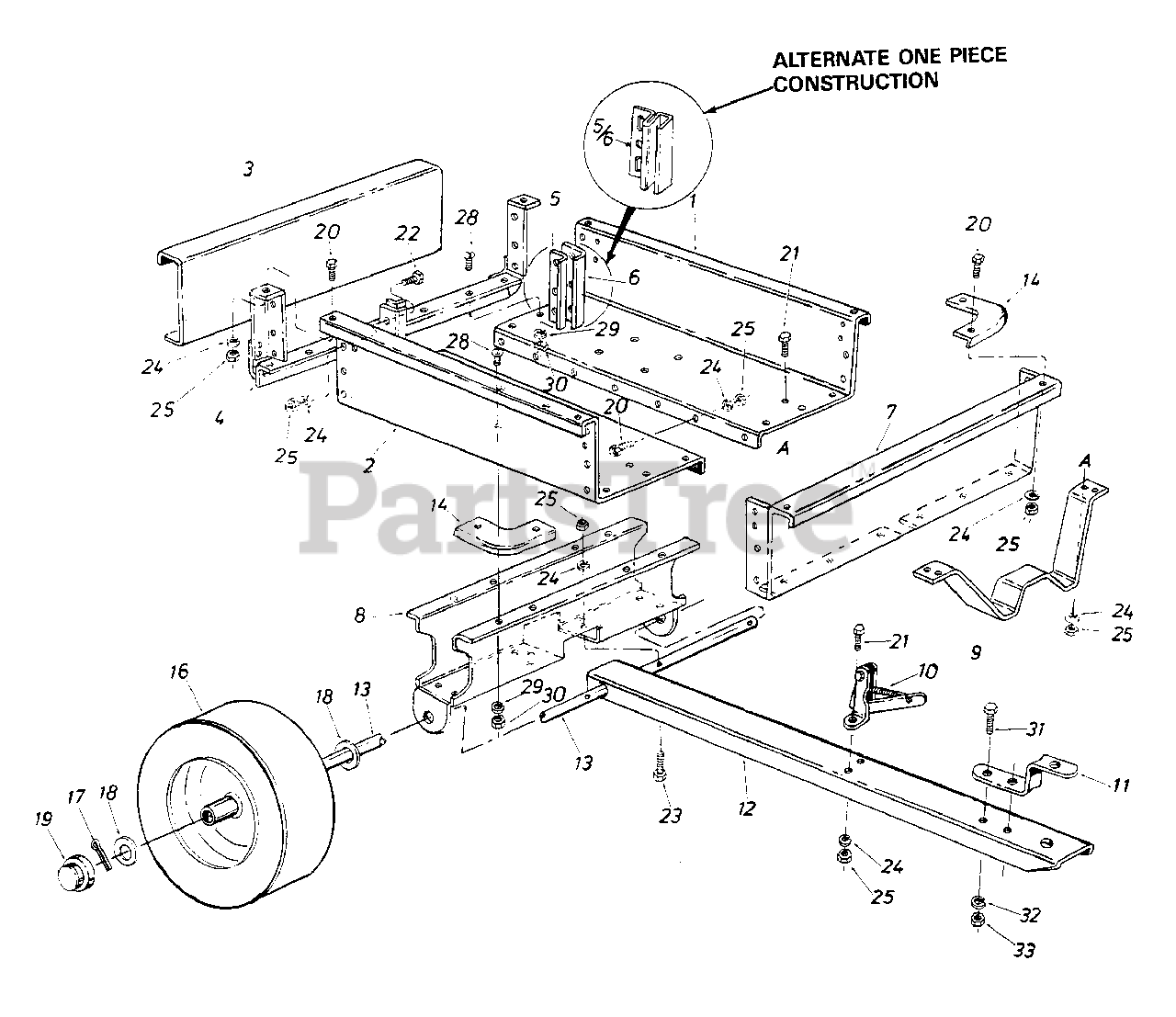

Repair Parts For Utility Carts Parts Diagram

  • Title

1

Husqvarna 23985

Cart Body

$

$

Currently unavailable

1

Husqvarna 23987

Cart Body

$

$

Currently unavailable

1

Husqvarna 23984

Cart Body

$

$

Currently unavailable

2

UNKNOWN

$

$

Not available

3

Husqvarna 23502

Tailgate

$

$

Currently unavailable

3

Husqvarna 23503

Tailgate

$

$

Currently unavailable

3

Husqvarna 23504

Tailgate

$

$

Currently unavailable

4

Husqvarna 62458

Sub-Ass'y., Rear Angle

$

$

Currently unavailable

4

Husqvarna 62457

Sub-Ass'y., Rear Angle

$

$

Currently unavailable

5

Husqvarna 23547

Guide, Tailgate - Inside

$

$

Currently unavailable

5

Husqvarna 23549

Guide, Tailgate - Inside

$

$

Currently unavailable

5

Husqvarna 23767

Guide, Tailgate - One Piece

$

$

Currently unavailable

6

Husqvarna 23486

Guide, Tailgate - Outside

$

$

Currently unavailable

6

Husqvarna 23548

Guide, Tailgate - Outside

$

$

Currently unavailable

7

Husqvarna 23492

Front Panel

$

$

Currently unavailable

7

Husqvarna 23493

Front Panel

$

$

Currently unavailable

7

Husqvarna 23490

Front Panel

$

$

Currently unavailable

8

Husqvarna 23506

Wheel Support

$

$

Currently unavailable

8

Husqvarna 23507

Wheel Support

$

$

Currently unavailable

8

Husqvarna 23487

Wheel Support

$

$

Currently unavailable

9

Husqvarna 23095

Latch Stand Bracket

$

$

Currently unavailable

9

Husqvarna 23297

Latch Stand Bracket

$

$

Currently unavailable

10

Husqvarna 62455

Ass'y. Latch Lock

$

$

Currently unavailable

11

Husqvarna 23014

Hitch Bracket

$

$

Currently unavailable

12

Husqvarna 23986

Draw Bar Tongue

$

$

Currently unavailable

12

Husqvarna 23988

Draw Bar Tongue

$

$

Currently unavailable

12

Husqvarna 23989

Draw Bar Tongue

$

$

Currently unavailable

13

Husqvarna 23026

Wheel Axle 3/4" Dia.

$

$

Currently unavailable

13

Husqvarna 23299

Wheel Axle 1" Dia.

$

$

Currently unavailable

13

Husqvarna 23488

Wheel Axle 1" Dia.

$

$

Currently unavailable

14

Husqvarna 23484

Cap, Front Corner

$

$

Currently unavailable

16

Husqvarna 43008

Wheel, 4.30 x 3.75

$

$

Currently unavailable

16

Husqvarna 43594

Wheel, 16/6.50 x 8.00

$

$

Currently unavailable

17

Husqvarna 43010

Cotter Pin 1/8" Dia. x 1" Lg.

$

$

Not available

17

Husqvarna 43093

Cotter Pin 1/8" Dia. x 1-1/2" Lg.

$

$

Currently unavailable

18

Husqvarna 43009

Washer, Flat 25/32" I.D.

$

$

Currently unavailable

18

Husqvarna 43601

Washer, Flat 1.032" I.D.

$

$

Currently unavailable

19

Husqvarna 43014

Hub Cap

$

$

Currently unavailable

20

Husqvarna 43175

Hex Bolt 1/4" x 1/2" Lg.

$

$

Currently unavailable

21

Husqvarna 43866

Hex Bolt 1/4" x 5/8" Lg.

$

$

Currently unavailable

22

Husqvarna 43012

Hex Bolt 1/4" x 3/4" Lg.

$

$

Not available

23

Husqvarna 43648

Hex Bolt 1/4" x 1-1/2" Lg.

$

$

Currently unavailable

23

150969

Hex Bolt 1/4" x 1-3/4" Lg.

$

$

Not available

24

Husqvarna 43177

Lock Washer 1/4" I.D.

$

$

Not available

25

Husqvarna 43178

Hex Nut 1/4" Thread

$

$

Not available

28

Husqvarna 43814

Slotted Truss Head Bolt 5/16" x 3/4" Lg.

$

$

Currently unavailable

29

Husqvarna 43086

Lock Washer 5/16" I.D.

$

$

Not available

30

Husqvarna 43083

Hex Nut 5/16" Thread

$

$

Not available

31

Husqvarna 43001

Hex Bolt 3/8" x 1" Lg.

$

$

Not available

32

Husqvarna 43003

Lock Washer 3/8" I.D.

$

$

Not available

33

Husqvarna 43015

Hex Nut 3/8" Thread

$

$

Not available

Husqvarna 46084

Owner's Manual

$

$

Currently unavailable
