DB1013 K1 A - Honda 42" Dozer Blade, Made in USA DOZER BLADE (DB1013K1) Parts Diagram

42" Dozer Blade, Made in USA

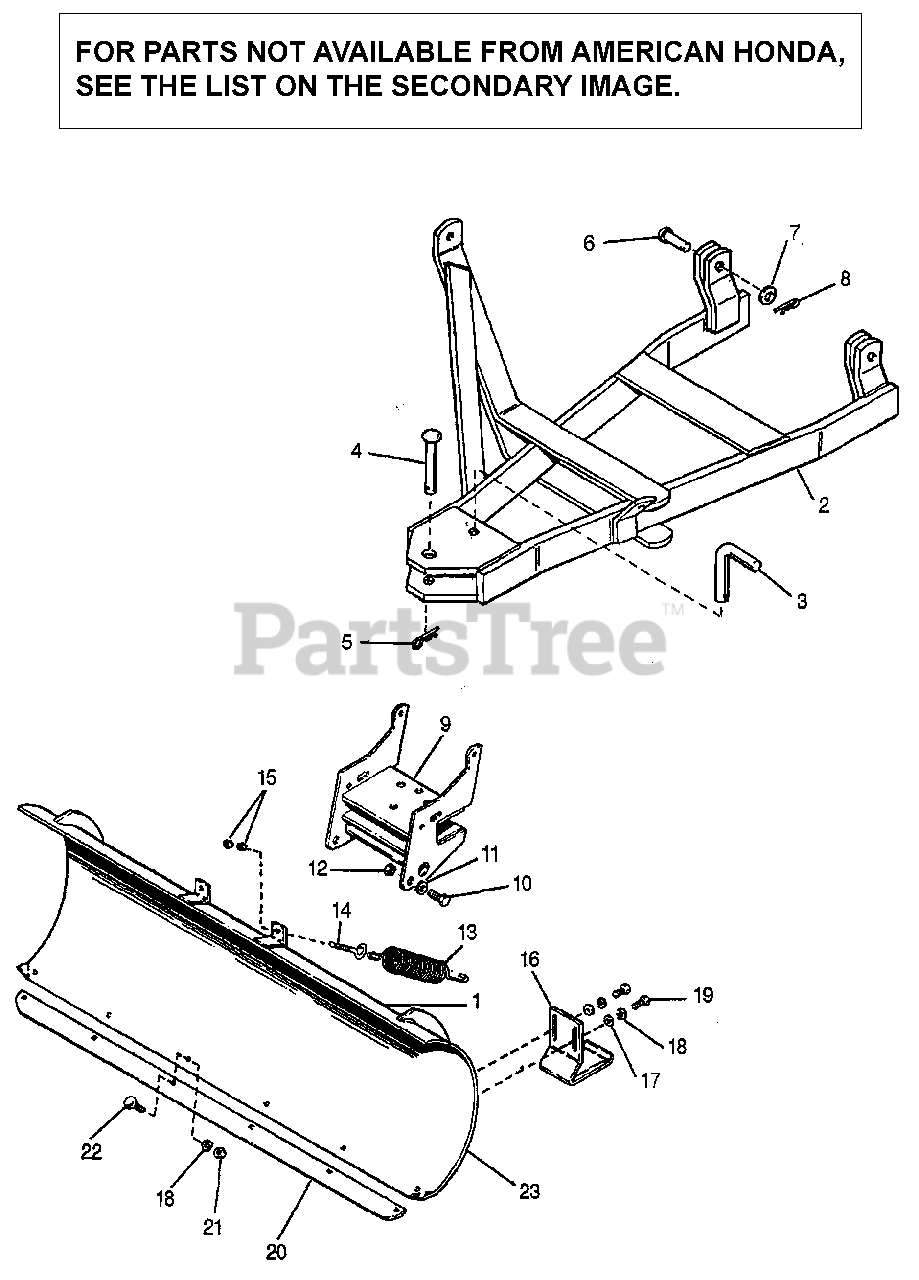

DOZER BLADE (DB1013K1) Parts Diagram

  • Title

1

Honda 72998-5001

DECAL (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 90753-750-891

PIN, PIVOT

$

$

Not available

4

Honda 90754-750-891

KINGPIN

$17.99

$

Usually ships in 3-6 days

0

5

Honda 90655-750-881

CLIP, SPRING

$1.99

$

Usually ships in 3-6 days

0

6

Honda 72998-5002

PIN, CLEVIS

$4.99

$

Usually ships in 3-6 days

0

7

Honda 72998-5003

WASHER (3/8")

$0.99

$

Usually ships in 3-6 days

0

8

Honda 82227-750-000

PIN, LOCK (10MM)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 72998-5004

SCREW, CAP (1/2-13X1")

$1.99

$

Usually ships in 3-6 days

0

11

Honda 72998-5005

SPACER (3/4")

$10.99

$

Usually ships in 3-6 days

0

12

Honda 72998-5006

NUT, LOCK HEX. (1/2-13)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 72998-5007

SPRING, TENSION

$34.99

$

Usually ships in 3-6 days

0

14

Honda 72998-5008

BOLT, EYE

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90323-750-881

NUT, HEX. (5/16-18) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 72998-5009

SHOE, SKID

$

$

Not available

17

Honda 72998-5003

WASHER (3/8")

$0.99

$

Usually ships in 3-6 days

0

18

Honda 90541-750-881

WASHER, LOCK (0.375)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 72998-5010

SCREW, CAP (3/8-16X3/4")

$0.99

$

Usually ships in 3-6 days

0

20

Honda 80422-750-891

PLATE, WEAR

$162.99

$

Usually ships in 3-6 days

0

21

Honda 90321-750-881

NUT, HEX. (3/8-16)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 90172-750-891

BOLT (3/8-16X1)

$1.49

$

Usually ships in 3-6 days

0
