DB 18542 YT (960120029-00) - Poulan Pro Lawn Tractor (2005) Mower Deck Parts Diagram

Lawn Tractor

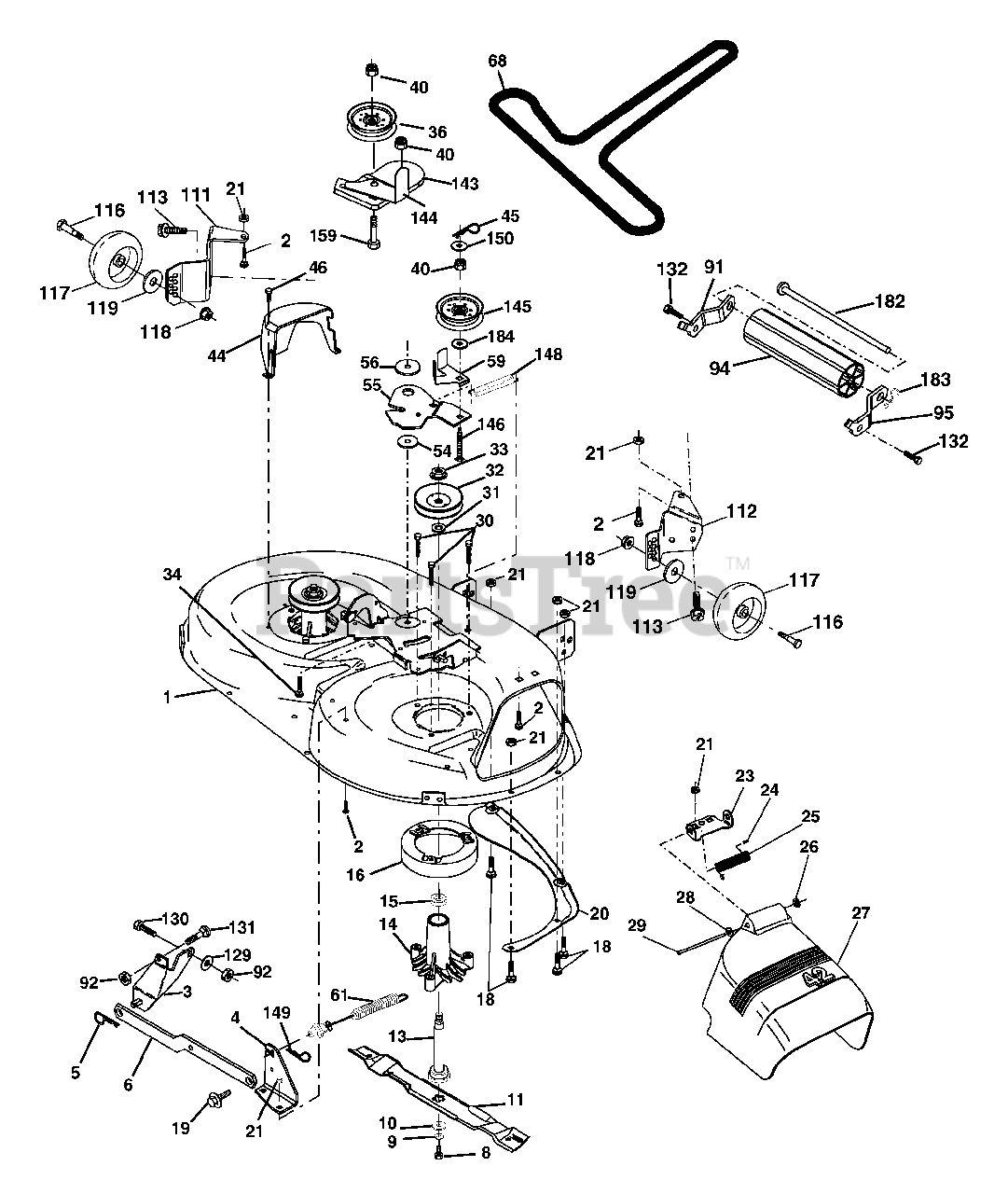

Mower Deck Parts Diagram

  • Title

1

Electrolux/AYP 165892X421

Mower Deck Assembly, 42"

$

$

Not available

2

Electrolux/AYP 72140506

Bolt
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 138017

Bracket Asm Fr. Sway Bar 3/42
(Superseded to 532138017)

$12.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 165460

Bracket Asm Deck 42" Sway Bar
(Superseded to 532165460)

$13.99

$

In Stock, only 1 left!

0

5

Murray 4939M

Retainer Spring

$

$

Not available

6

Electrolux/AYP 178024

Bar Sway Deck
(Superseded to 532178024)

$8.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 850857

Bolt 3/8-24 x 1.25 Gr. 8 patched
(Superseded to 532850857)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 10030600

Washer, Lock
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

Washer, Hardened
(Superseded to 532140296)

Note: (The following Blades are available)

$6.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 138971

Blade Mower 42" Hi-Lift
(Superseded to 532138971)

Note: (for bagging and discharging)

$20.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 134149

Blade, Mulching 42" Std
(Superseded to 532134149)

Note: (for mulching mowers only)

$

$

Not available

11

Electrolux/AYP 139775

Blade Mulching 42" Premium
(Superseded to 532139775)

Note: (For better wear when mulching)

$

$

Not available

13

Electrolux/AYP 137645

Shaft Assembly, Mandrel, Vented
(Superseded to 532137645)

$34.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 128774

Housing, Mandrel, Vented
(Superseded to 532128774)

$34.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 110485X

Bearing, Ball, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 6

0

16

Electrolux/AYP 174493

Stripper, Mandrel Deck
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

Bolt, Carriage 5/16-18 x 5/8
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

Bolt, Shoulder
(Superseded to 532132827)

$

$

Not available

20

Electrolux/AYP 159770

Baffle, Vortex
(Superseded to 532159770)

$

$

Not available

21

Murray 73680500

Nut
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 177563

Bracket, Deflector Mower 42"
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 105304X

Cap, Sleeve 80 x 112 Blk Mower
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 123713X

Spring, Torsion, Deflector 2 52
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 110452X

Nut, Push Phos & Oil
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 130968X428

Shield, Deflector 42" Blk
(Superseded to 532130968)

$39.99

$

In Stock, Qty 12

0

28

Electrolux/AYP 19111016

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

29

Electrolux/AYP 131491

Rod, Hinge 42" 6 75 W/G
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 173984

Screw Thdrol
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 187690

Washer, Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 173436

Pulley, Mandrel
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 178342

Nut, Toplock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 18

0

34

Electrolux/AYP 72110612

Bolt Carr SH 3/8-16 x 1-1/2 Gr.5
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 173438

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

40

Murray 73900600

Nut Lock 3/8-16

$

$

Not available

44

Electrolux/AYP 140088

Guard, Mandrel, LH
(Superseded to 532140088)

$34.99

$

In Stock, Qty 10

0

45

Electrolux/AYP 4497H

Retainer
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Electrolux/AYP 137729

Screw Thd Roll 1/4-20 x 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 178515

Washer, Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 155046

Arm, Idler
(Superseded to 532155046)

$15.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 122052X

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

59

Electrolux/AYP 141043

Guard TUV Idler
(Superseded to 532141043)

$

$

Not available

61

Electrolux/AYP 174882

Spring Ext Elect Clutch
(Superseded to 532174882)

$26.99

$

In Stock, only 2 left!

0

68

Electrolux/AYP 1748 83

V-Belt, 42" Mower
(Superseded to 532174883)

$45.99

$

In Stock, only 2 left!

0

91

Electrolux/AYP 180532

Bracket Roller Nose LH
(Superseded to 532180532)

$4.99

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 73800600

Nut Lock Hex W/Ins 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 132264

Roller Nose

$

$

Not available

95

Electrolux/AYP 180533

Bracket Roller Nose RH
(Superseded to 532180533)

$6.49

$

Usually ships in 3-10 days

0

111

Electrolux/AYP 179292

Bracket Wheel Guage LH
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

112

Electrolux/AYP 179293

Bracket Wheel Guage RH
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 17000510

Screw 5/16-18
(Superseded to 817000510)

$7.49

$

In Stock, Qty 12

0

116

Electrolux/AYP 4898H

Bolt, Shoulder
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Electrolux/AYP 188606

Wheel Gauge
(Superseded to 589527401)

$11.99

$

In Stock, Qty 8

0

118

Electrolux/AYP 73930600

Nut Centerlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

129

Electrolux/AYP 19131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

130

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16 UNC x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

131

Murray 72140608

Bolt RDHD SQNK 3/8-16 UNC x 1

$

$

Not available

132

Electrolux/AYP 17000612

Rod Roller Nose
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

143

Electrolux/AYP 157109

Bracket Arm Idler 42"
(Superseded to 532157109)

$6.49

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 173441

Keeper Belt 42" Clutch Cable
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

145

Electrolux/AYP 173437

Pulley Idler Flat
(Superseded to 532173437)

$28.99

$

In Stock, only 3 left!

0

146

Electrolux/AYP 173443

Bolt Carriage Idler
(Superseded to 532173443)

$7.49

$

In Stock, Qty 8

0

147

Electrolux/AYP 131335

Spring Extension
(Superseded to 532179748)

$5.99

$

In Stock, Qty 11

0

148

Electrolux/AYP 169022

Spring Return Idler
(Superseded to 532169022)

$5.99

$

In Stock, Qty 9

0

149

Electrolux/AYP 165898

Retainer Spring Yellow
(Superseded to 532165898)

$7.49

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 19091210

Washer 9/32 x 3/4 x 10 Ga.
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 72140614

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

182

Electrolux/AYP 179126

Rod roller nose
(Superseded to 532179126)

$

$

Not available

183

Electrolux/AYP 163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

184

Electrolux/AYP 19131410

Washer 13/32 x 7/8 x 10 Ga.
(Superseded to 819131410)

$1.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 130794

Mandrel Assembly
(Superseded to 532130794)

Note: (Includes Housing Shaft and Shaft Hardware Only Pulley Not Included)

$56.99

$

In Stock, Qty 7

0

Electrolux/AYP 176207

Replacement Mower, Complete
(Superseded to 532176207)

Note: (Std. deck Order separately nose roller and gauge wheel components Key Nos. 91, 94, 95, 132, 182 and 116-119)

$789.99

$

Usually ships in 3-10 days

0
