D5-42MR01 - Toro 42" Rear-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) DECK ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck

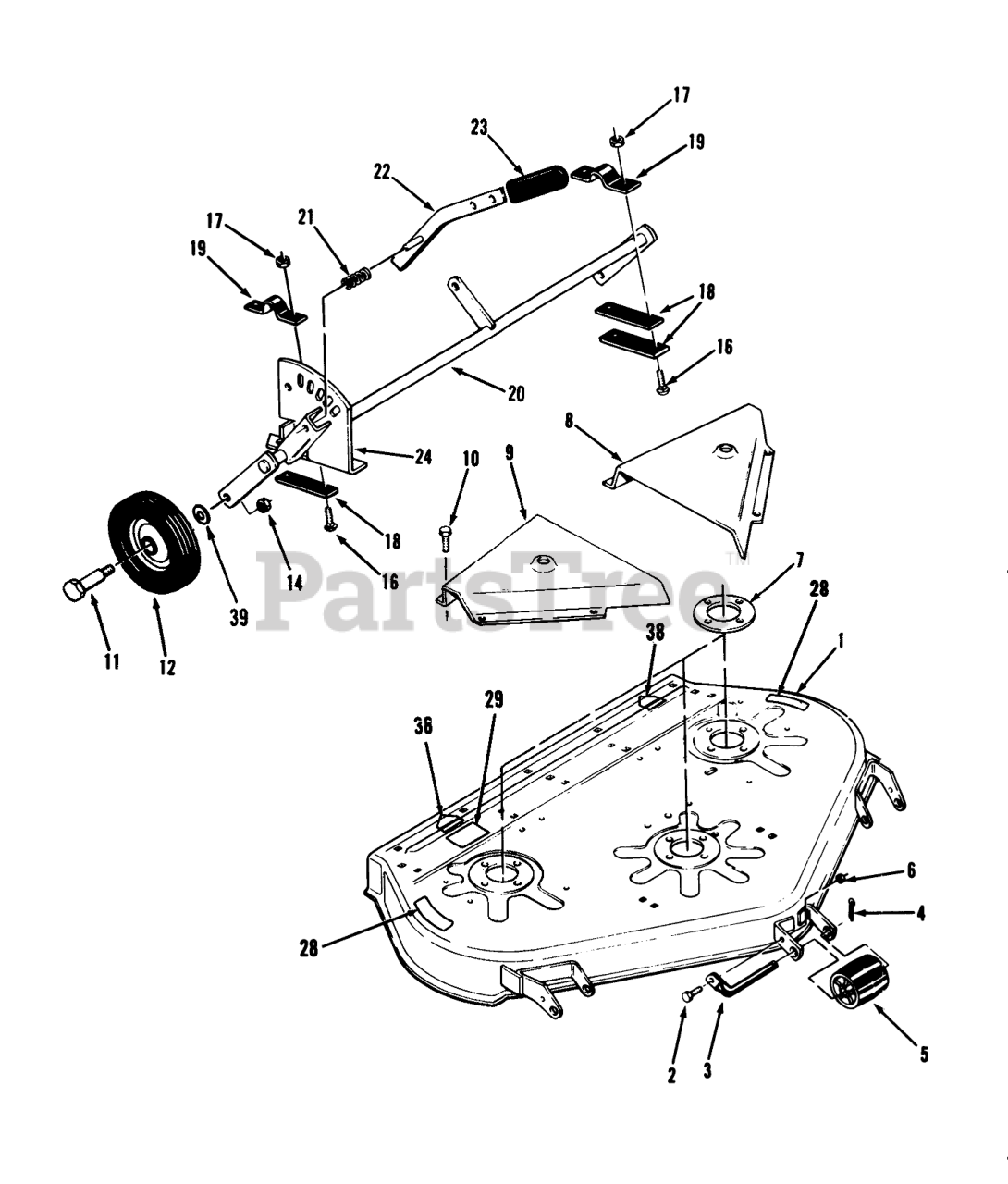

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 116965

Deck-Mower
(Superseded to 92-7292)

$1713.99

$

Usually ships in 3-6 days

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

4

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

5

Toro 109376

ROLLER ASSY

$

$

Not available

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 106117

PLATE-SPINDLE

$20.99

$

Usually ships in 3-6 days

0

8

Toro 106638

Belt Cover LH
(Superseded to 106638-01)

$64.99

$

Usually ships in 3-6 days

0

9

Toro 106409

Belt Cover RH
(Superseded to 106409-01)

$64.99

$

Usually ships in 3-6 days

0

10

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

11

Toro 5188

BOLT-SHOULDER

$6.49

$

In Stock, Qty 6

0

12

Toro 109375

WHEEL ASM

$

$

Not available

14

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

16

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

18

Toro 110840

Bar
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

19

Toro 110841

Camp

$8.99

$

Usually ships in 3-6 days

0

20

Toro 115053

Gage Wheel Support
(Superseded to 79-5360-01)

$190.99

$

Usually ships in 3-6 days

0

21

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

22

Toro 115213

Lever
(Superseded to 115213-01)

$30.99

$

Usually ships in 3-6 days

0

23

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

24

Toro 106392

Quadrant
(Superseded to 106392-01)

$33.99

$

Usually ships in 3-6 days

0

28

Toro 76-4070

DECAL - DANGER

$23.99

$

Usually ships in 3-6 days

0

29

Toro 106748

DECAL-HEIGHT & BELT

$11.99

$

In Stock, only 1 left!

0

38

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

39

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0
