D5-36MR01 - Toro 36" Rear-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) SPINDLE & BLADE ASSEMBLY Parts Diagram

36" Rear-Discharge Mower Deck

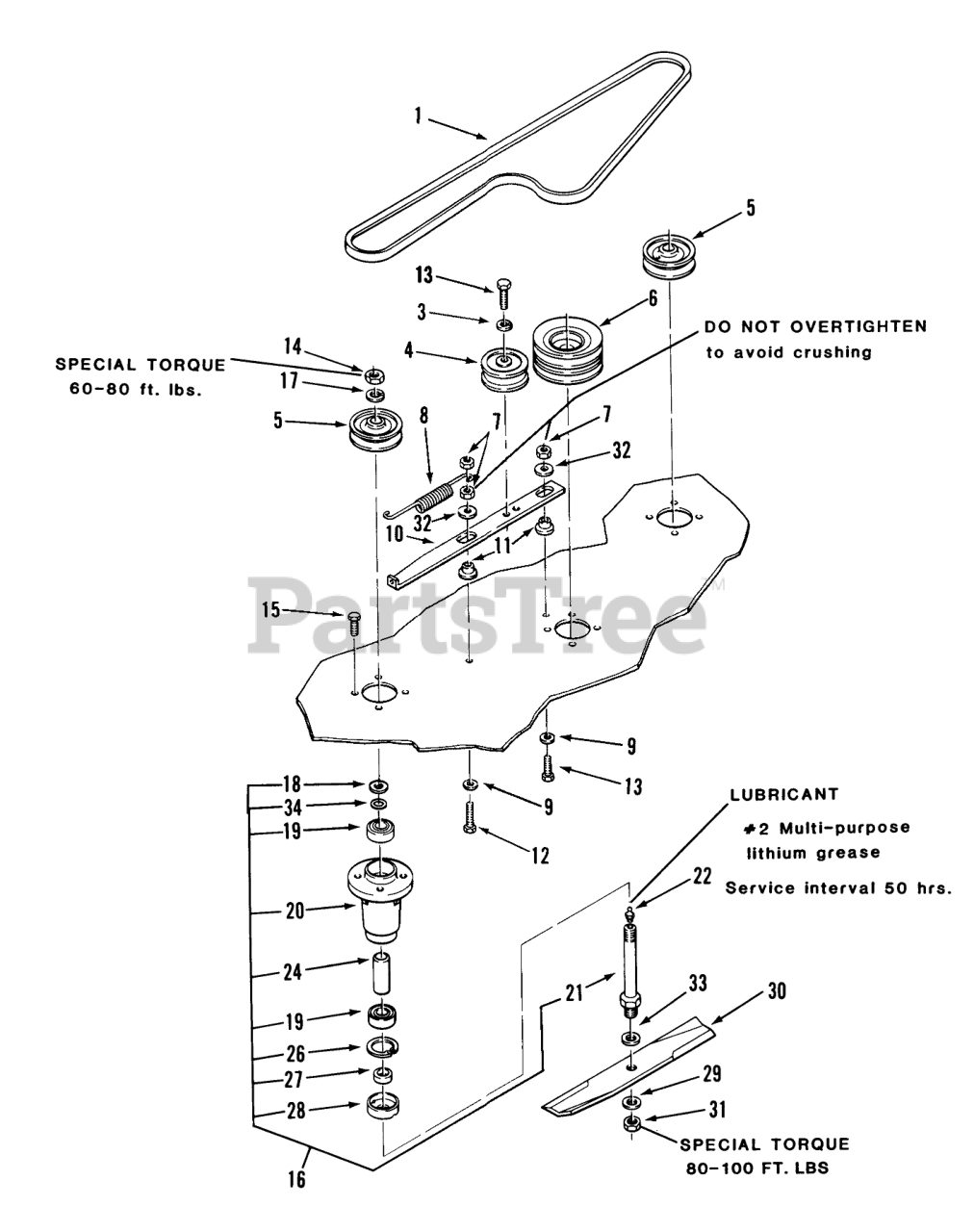

SPINDLE & BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 8411

V-BELT

$28.99

$

In Stock, only 1 left!

0

3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

4

Toro 112426

PULLEY-IDLER

$26.99

$

In Stock, only 1 left!

0

5

Toro 109967

PULLEY

$80.99

$

In Stock, only 1 left!

0

6

Toro 109991

PULLEY CENTER

$

$

Not available

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

8

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

10

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

11

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

12

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

15

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

16

Toro 109964

Spindle Assembly (Incl. Ref. #18-21, 24, 28, & 34)

$

$

Not available

17

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

18

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 5

0

19

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

20

Toro 114569

HOUSING-SPINDLE

$214.99

$

Usually ships in 3-6 days

0

21

Toro 112673

SHAFT-SPINDLE

$155.99

$

Usually ships in 3-6 days

0

22

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

24

$27.99

$

Usually ships in 3-6 days

0

26

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

27

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

28

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

29

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

30

Toro 107438

Blade Center
(Superseded to 107983)

$155.99

$

Usually ships in 3-6 days

0

Toro 107437

Blade Outer
(Superseded to 107983)

$155.99

$

Usually ships in 3-6 days

0

31

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

32

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

33

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

34

Toro 971015

O RING

$2.49

$

In Stock, Qty 6
