D26KH54 (960410184-04) - Dixon 54" Lawn Tractor, 26hp Kohler (2014-05) MOWER LIFT / DECK LIFT Parts Diagram

54" Lawn Tractor, 26hp Kohler

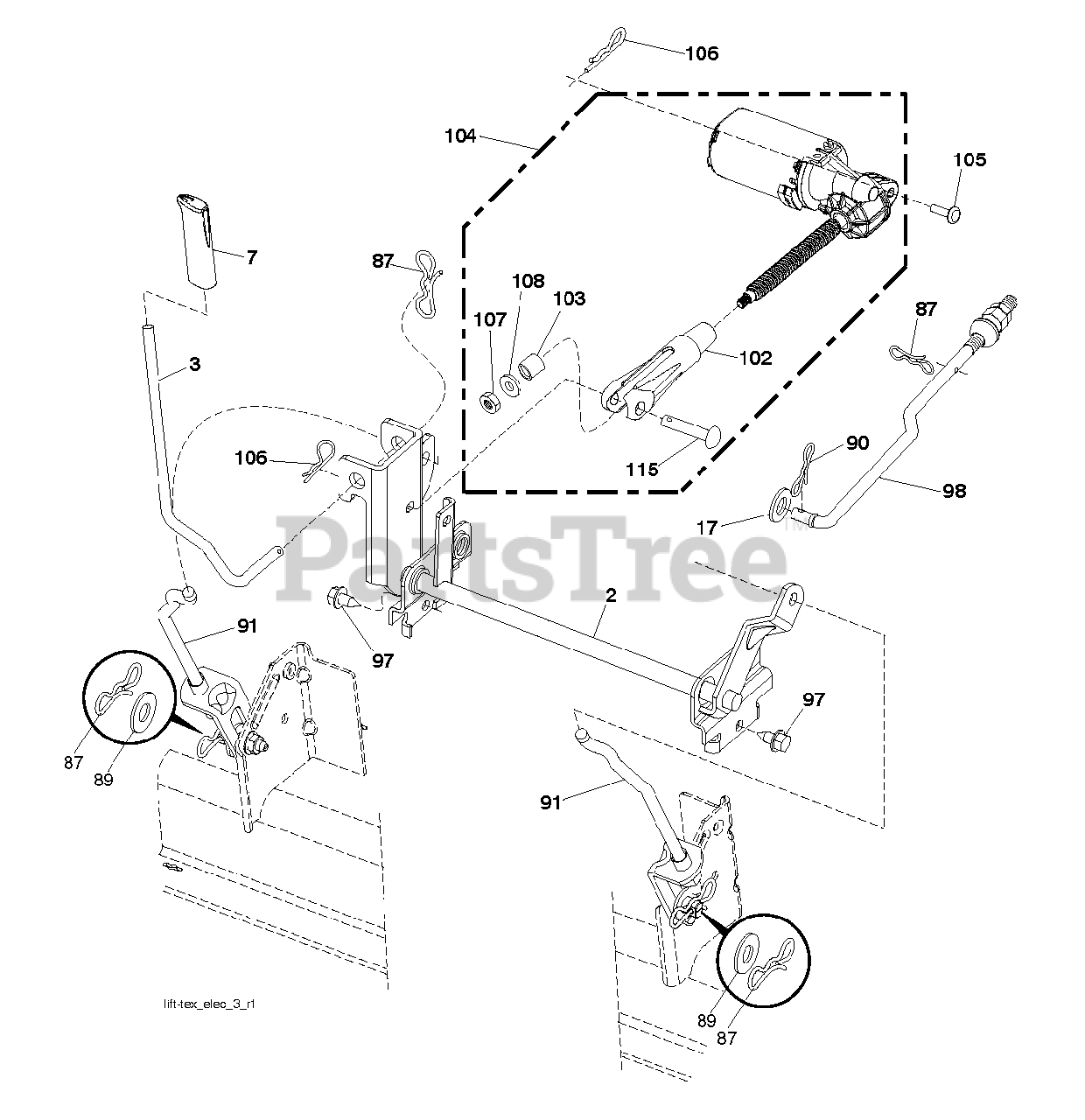

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

2

Dixon 532422027

SHAFT.ASM.CROSS.LIFT

$80.99

$

In Stock, only 1 left!

0

3

Dixon 532419496

ROD.INDICATOR.LIFT.ELECTRIC

$74.99

$

Usually ships in 3-10 days

0

7

Dixon 532436371

CAP.INDICATOR.LIFT.ELECT.428
(Superseded to 532419444)

$28.99

$

Usually ships in 3-10 days

0

17

Dixon 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

87

Dixon 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, Qty 11

0

89

Dixon 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 11

0

90

Dixon 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

91

Dixon 532403407

LINK.ASM.LIFT.54"TG

$

$

Not available

97

Dixon 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

98

Dixon 532195264

LINK.ASM.SUSP.FRONT.MWR.10.5
(Superseded to 581506902)

$11.99

$

In Stock, Qty 17

0

102

Dixon 532419278

CLEVIS.MOTOR.ELECTRIC

$

$

Not available

103

Dixon 532420190

SPACER.TUBULAR

$7.49

$

Usually ships in 3-10 days

0

104

Dixon 532421769

ACTUATOR.ASM.DECKLIFT.ELECT

$

$

Not available

105

Dixon 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

106

Dixon 532124788

No Description Available
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

107

Dixon 873720400

NUT.SQ.1/4-20 UNC

$3.49

$

Usually ships in 3-10 days

0

108

Dixon 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

115

Dixon 532421734

PIN.CLEVIS.375X2.125

$7.99

$

Usually ships in 3-10 days

0
