D26KH54 (960410184-03) - Dixon 54" Lawn Tractor, 26hp Kohler (2013-06) MOWER DECK / CUTTING DECK Parts Diagram

54" Lawn Tractor, 26hp Kohler

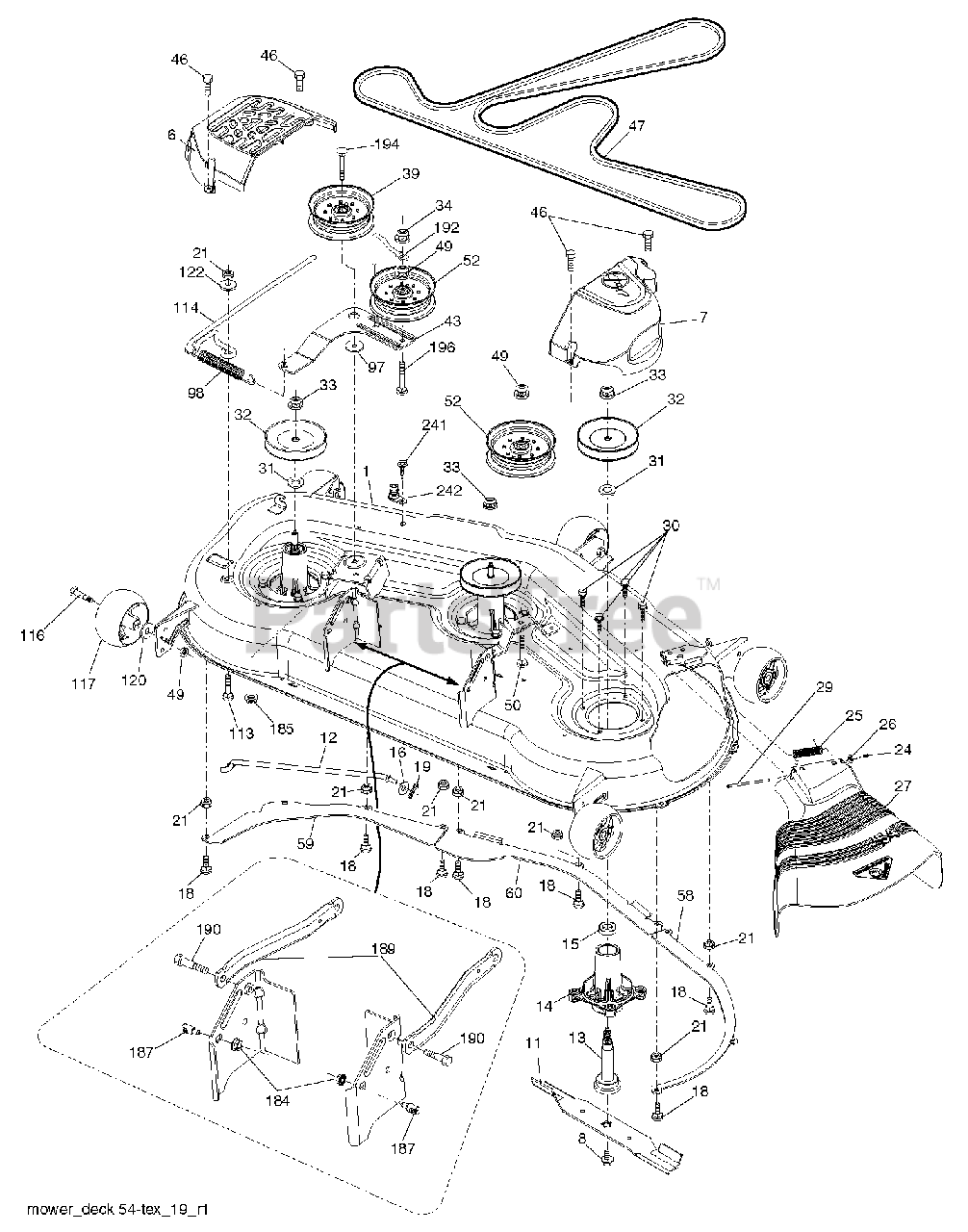

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 532436376

DECK.WELDMENT.54"MS-666.BLUE
(Superseded to 532441938)

$797.99

$

Usually ships in 3-10 days

0

6

Dixon 532196066

COVER.MANDREL.LH.54"20

$34.99

$

In Stock, only 1 left!

0

7

Dixon 532197181

COVER.MANDREL.RH.54.20

$47.99

$

In Stock, only 1 left!

0

8

Dixon 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Dixon 532187256

BLADE, BAGGING 54"
(Superseded to 594892901)

$22.99

$

In Stock, Qty 20+

0

12

Dixon 532400337

ROD.ANTI.SWAY.48/54"TE

$

$

Not available

13

Dixon 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 13

0

14

Dixon 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Dixon 532110485

BEARING

$13.99

$

In Stock, Qty 7

0

16

Dixon 819131312

OBSOLETE - WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

18

Dixon 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Dixon 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 873680500

OBSOLETE - LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Dixon 532178102

OBSOLETE - SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Dixon 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 532188938

No Description Available
(Superseded to 532187257)

$80.99

$

In Stock, Qty 11

0

29

Dixon 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Dixon 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Dixon 532187690

WASHER.SPACER.MANDREL

$4.99

$

Usually ships in 3-10 days

0

32

Dixon 532153535

OBSOLETE - PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Dixon 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 19

0

34

Dixon 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

39

Dixon 532197380

PULLEY.IDLER.4.50/HUB SPECIAL
(Superseded to 532196104)

$43.99

$

In Stock, Qty 11

0

43

Dixon 532196065

ARM.IDLER

$15.99

$

Usually ships in 3-10 days

0

46

Dixon 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Dixon 532196103

BELT.DRIVE.54."2006
(Superseded to 587686701)

$62.99

$

In Stock, Qty 11

0

49

Dixon 873900600

OBSOLETE - NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Dixon 872110616

BOLT

$6.49

$

Usually ships in 3-10 days

0

52

Dixon 532197379

OBSOLETE - PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

58

Dixon 532187342

BAFFLE.RIGHT.54"

$12.99

$

Usually ships in 3-10 days

0

59

Dixon 532187344

BAFFLE.LEFT.54"

$

$

Not available

60

Dixon 532187607

BAFFLE CENTER 54" MOWER

$22.99

$

In Stock, only 2 left!

0

97

Dixon 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

98

Dixon 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 10

0

113

Dixon 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

114

Dixon 532187556

ROD TENSION RELIEF

$24.99

$

In Stock, only 1 left!

0

116

Dixon 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Dixon 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

120

Dixon 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Dixon 532187557

BUSHING.RELIEF.TENSION

$9.49

$

In Stock, only 1 left!

0

184

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

185

Dixon 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 14

0

187

Dixon 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

189

Dixon 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

190

Dixon 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

192

Dixon 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

194

Dixon 874490736

No Description Available

$13.99

$

In Stock, only 4 left!

0

196

Dixon 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

241

Dixon 532152927

SCREW

$7.49

$

In Stock, only 2 left!

0

242

Dixon 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 14

0

--

Dixon 532187292

MANDREL ASM. SERVICE
(Superseded to 587820301)

Note: MANDREL ASSEMBLY (includes Housing (Key 14) Shaft Assembly (Key 13) and Bearing Only (Key 15) and (Key 33) Pulley /Washer and Blade Bolt /Washers Not Included)

$56.99

$

In Stock, Qty 20+

0

--

Dixon 532435131

DECK.SVC.54"E

$1092.99

$

Usually ships in 3-10 days

0
