D2654GT (960460021-01) - Dixon 54" Lawn Tractor, 26hp Kohler (2011-01) ENGINE Parts Diagram

54" Lawn Tractor, 26hp Kohler

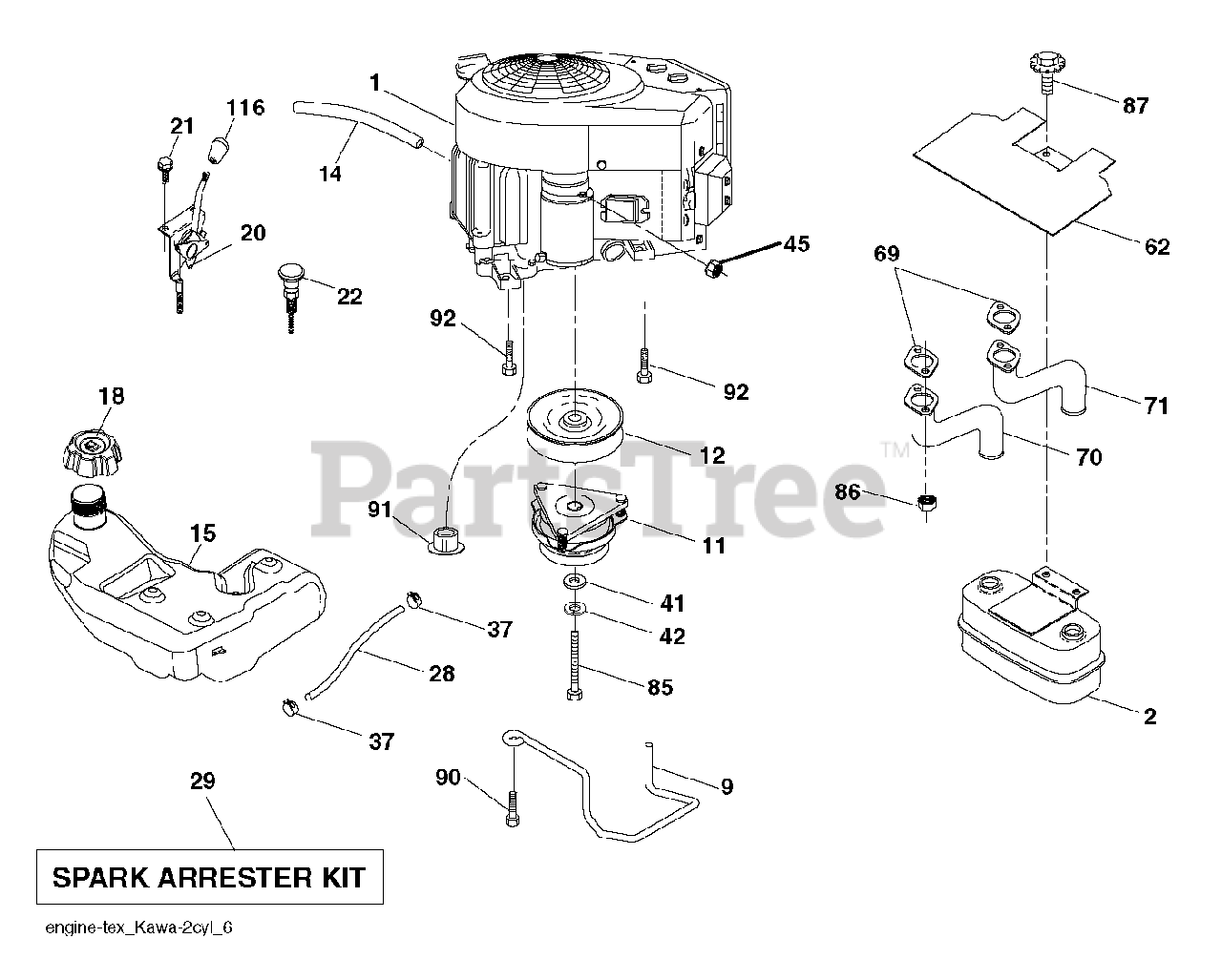

ENGINE Parts Diagram

  • Title
1

Dixon TBD

No Description Available

Note: KAWA MODEL FR730V-AS04

$

$

Not available

2

Dixon 532149723

MUFFLER ASSM

$74.99

$

Usually ships in 3-10 days

0

9

Dixon 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

11

Dixon 532179335

No Description Available

$341.99

$

Usually ships in 3-10 days

0

12

Dixon 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

14

Dixon 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 6

0

15

Dixon 532438081

TANK.ASM.4.GAL.EPA
(Superseded to 598731101)

$194.99

$

Usually ships in 3-10 days

0

18

Dixon 532430214

CAP ASM.FL.RTCHT.3"GRY.E10

$40.99

$

Usually ships in 3-10 days

0

20

Dixon 532424341

CONTROL THROTTLE

$93.99

$

In Stock, only 3 left!

0

21

Dixon 532416358

SCREW.#10 X 0.750.BOS THREAD

$

$

Not available

22

Dixon 532191596

CONTROL CHOKE

$40.99

$

In Stock, only 1 left!

0

28

Dixon 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 1 left!

0

29

Dixon 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

37

Dixon 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

41

$8.99

$

In Stock, only 3 left!

0

42

Dixon 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Dixon 873510400

No Description Available
(Superseded to 873680400)

$4.99

$

In Stock, Qty 15

0

62

Dixon 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Dixon TBD

No Description Available

Note: GASKET ORDER FROM ENGINE MFG

$

$

Not available

70

Dixon 532424765

TUBE.EXHAUST
(Superseded to 583955601)

$37.99

$

In Stock, only 1 left!

0

71

Dixon 532424766

TUBE.EXHAUST
(Superseded to 583955701)

$37.99

$

In Stock, only 1 left!

0

85

Dixon 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$4.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 3 left!

0

87

Dixon 532198239

BOLT.5/16-18UNCX1.W/SE

$7.49

$

In Stock, only 4 left!

0

90

Dixon 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Dixon 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

92

Dixon 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

116

Dixon 532424659

RP KNOB SOFT TOUCH
(Superseded to 539132624)

$7.99

$

In Stock, Qty 6

0
