D25KH48 (960460020-00) - Dixon 48" Lawn Tractor, 25hp Kohler (2010-02) MOWER DECK / CUTTING DECK Parts Diagram

48" Lawn Tractor, 25hp Kohler

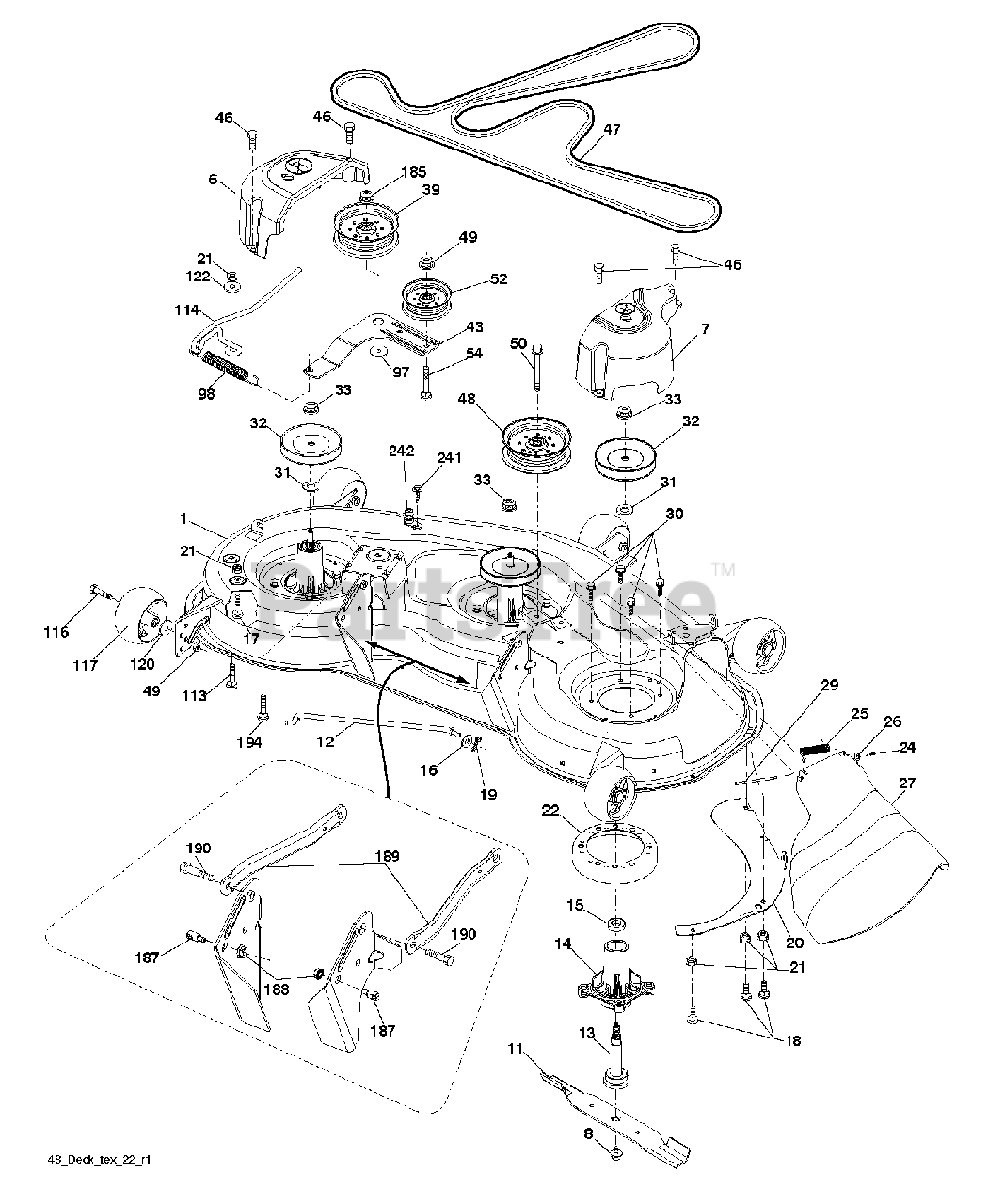

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 532436370

DECK.PNT.WELDMENT.48"TEX.666

$364.99

$

Usually ships in 3-10 days

0

6

Dixon 532197248

COVER.MANDREL.LH.48"

Note: LH

$34.99

$

In Stock, only 2 left!

0

7

Dixon 532199102

COVER.MANDREL.RH.48"
(Superseded to 587452401)

Note: RH

$20.99

$

In Stock, only 3 left!

0

8

Dixon 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Dixon 532180054

48" HI-LIFT BLADE

$22.99

$

In Stock, Qty 20+

0

11

Dixon 532173921

48" MULCH BLADE

$22.99

$

In Stock, only 4 left!

0

12

Dixon 532404851

ROD.ANTI.SWAY.48/54"K4

$26.99

$

In Stock, only 2 left!

0

13

Dixon 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 14

0

14

Dixon 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 16

0

15

Dixon 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

16

Dixon 819131312

OBSOLETE - WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

17

Dixon 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

18

Dixon 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Dixon 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 532174378

BAFFLE, VORTEX MWR

$14.99

$

Usually ships in 3-10 days

0

21

Dixon 873680500

OBSOLETE - LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 532174493

STRIPPER, MWR ROUND

$7.49

$

Usually ships in 3-10 days

0

24

Dixon 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Dixon 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Dixon 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 532181707

DEFLECTOR SUBS TO 532 180655
(Superseded to 532180655)

$45.99

$

In Stock, only 4 left!

0

29

Dixon 532131491

HINGE ROD
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Dixon 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Dixon 532187690

WASHER

$4.99

$

In Stock, Qty 20+

0

32

Dixon 532153532

OBSOLETE - PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

33

Dixon 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

39

Dixon 532197380

PULLEY.IDLER.4.50/HUB SPECIAL
(Superseded to 532196104)

$43.99

$

In Stock, Qty 14

0

43

Dixon 532196065

ARM.IDLER

$15.99

$

Usually ships in 3-10 days

0

46

Dixon 532137729

SCREW 1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Dixon 532197242

BELT.DRIVE.DECK
(Superseded to 593773401)

$62.99

$

In Stock, Qty 7

0

48

Dixon 532197379

OBSOLETE - PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 10

0

49

Dixon 873900600

OBSOLETE - NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Dixon 817490636

SCREW TT 3/8-16X2-1/4 UNC
(Superseded to 596564004)

$2.49

$

In Stock, Qty 5

0

52

Dixon 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

54

Dixon 872110612

BOLT

$6.49

$

Usually ships in 3-10 days

0

97

Dixon 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

98

Dixon 532196105

SPRING.DRIVE.DECK.2006

$7.99

$

In Stock, Qty 6

0

113

Dixon 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

114

Dixon 532197451

ROD.TENSION.RELIEF.TEX

$18.99

$

In Stock, only 1 left!

0

116

Dixon 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Dixon 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

120

Dixon 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Dixon 532187557

BUSHING

$9.49

$

In Stock, only 1 left!

0

185

Dixon 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 12

0

187

Dixon 532195161

STUD.FASTNER.W/D.ANTI-

$

$

Not available

188

Dixon 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

189

Dixon 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

190

Dixon 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

194

Dixon 872140716

BOLT.CARR.SQNK.7/16
(Superseded to 874490736)

$13.99

$

In Stock, only 4 left!

0

241

Dixon 532152927

SCREW

$7.49

$

In Stock, only 2 left!

0

242

Dixon 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 17

0

Dixon 532187292

MANDREL ASM. SERVICE
(Superseded to 587820301)

Note: BLADE BOLT /WASHERS NOT INCL

$56.99

$

In Stock, Qty 11

0

Dixon 532435063

DECK.SVC.48"

Note: COMPLETE

$

$

Not available
