D25KH48 (960410185-04) - Dixon 48" Lawn Tractor, 25hp Kohler (2014-05) ENGINE Parts Diagram

48" Lawn Tractor, 25hp Kohler

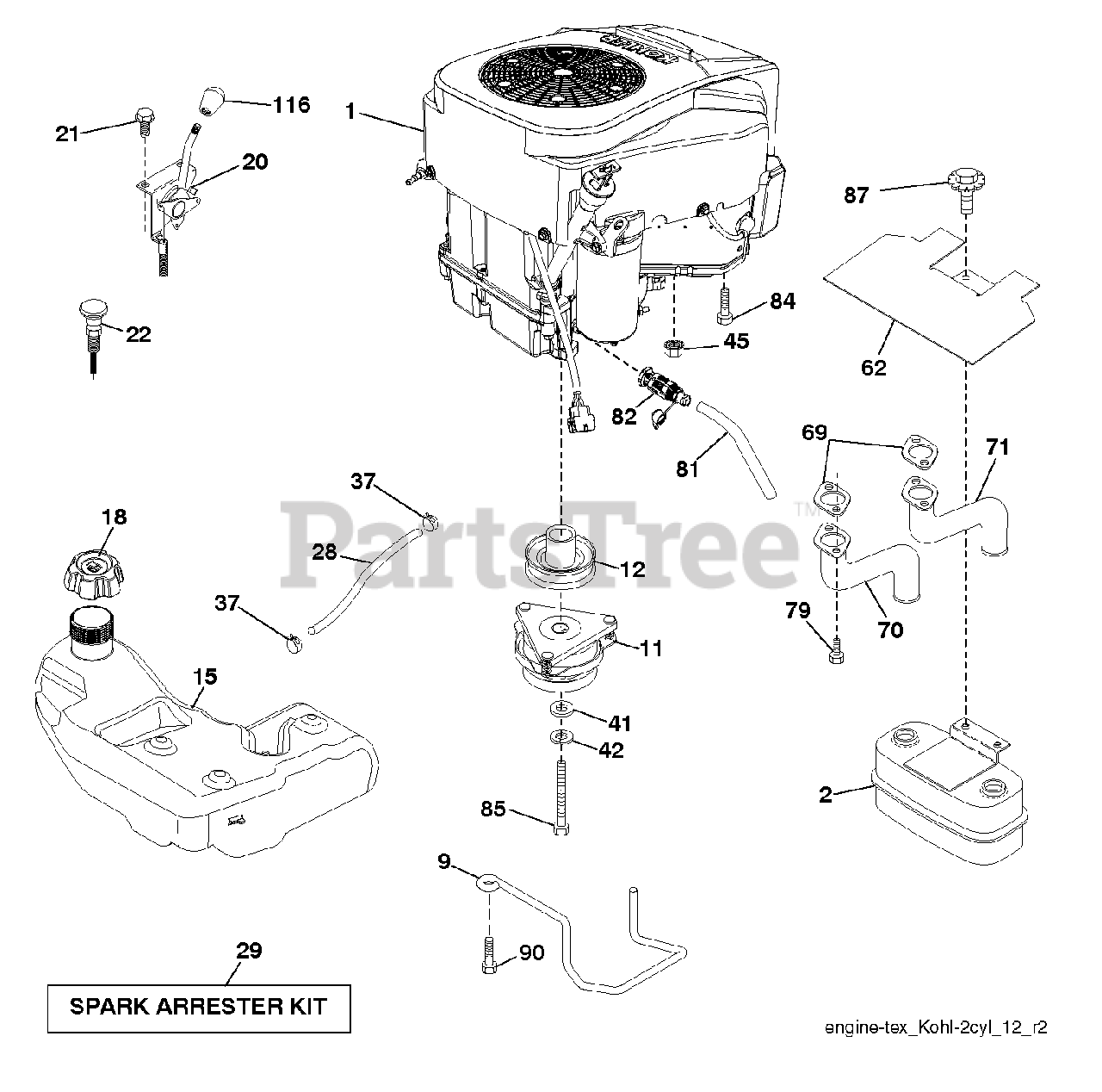

ENGINE Parts Diagram

  • Title
1

Dixon 000000000

No Description Available

Note: ENGINE KOHLER MODEL KT740-3014 (585445901)

$

$

Not available

2

Dixon 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Dixon 584908001

KEEPER BELT ENGINE
(Superseded to 501832602)

$

$

Not available

11

Dixon 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

12

Dixon 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

15

Dixon 532438080

TANK.ASSY.3.GAL.EPA
(Superseded to 532438031)

$206.99

$

Usually ships in 3-10 days

0

18

Dixon 532430214

CAP ASM.FL.RTCHT.3"GRY.E10

$40.99

$

Usually ships in 3-10 days

0

20

Dixon 532426184

CONTROL.THROTTLE.PRO.KOHLER

$93.99

$

Usually ships in 3-10 days

0

21

Dixon 532416358

SCREW.#10 X 0.750.BOS (2 2)

$

$

Not available

22

Dixon 532191596

CONTROL CHOKE

$40.99

$

Usually ships in 3-10 days

0

28

Dixon 532142158

No Description Available
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

29

Dixon 532137180

KIT.SPARK ARRESTOR(392390 B&S)

$182.99

$

In Stock, only 1 left!

0

37

Dixon 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

41

$8.99

$

In Stock, only 3 left!

0

42

Dixon 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Dixon 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

62

Dixon 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Dixon TBD

No Description Available

Note: Gasket (Order From Engine Mfgr )

$

$

Not available

70

Dixon 583954501

PIPE.EXHAUST.LH.CV18/20

$22.99

$

In Stock, only 1 left!

0

71

Dixon 583954801

PIPE.EXHAUST.RH.CV18/20

$20.99

$

In Stock, only 1 left!

0

79

Dixon 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

81

Dixon 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

82

Dixon 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Dixon 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

85

Dixon 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Dixon 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

90

Dixon 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

116

Dixon 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0
