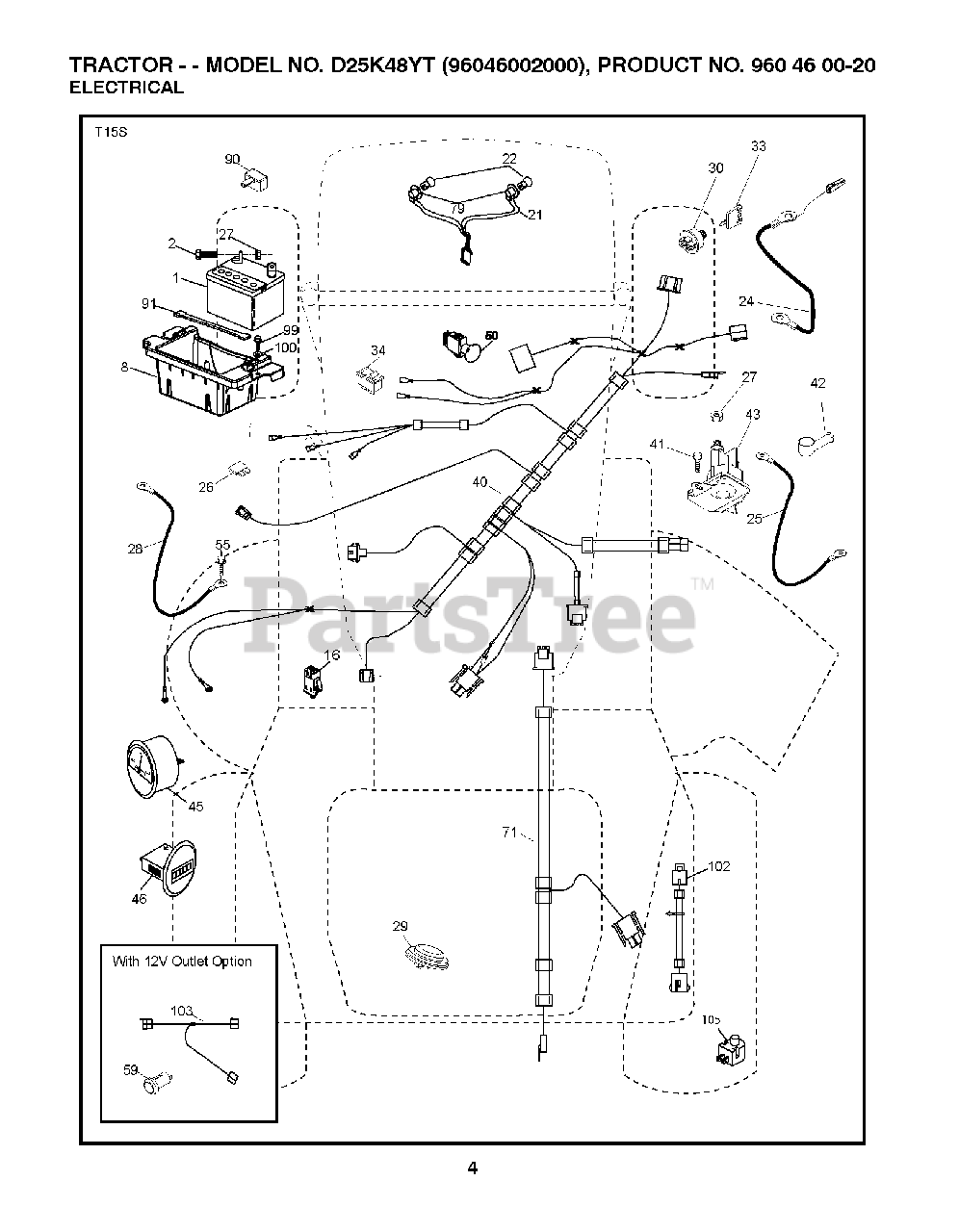

D25K48YT (960460020-00) - Dixon 48" Lawn Tractor, 25hp Kohler (2010-02) ELECTRICAL Parts Diagram

48" Lawn Tractor, 25hp Kohler

ELECTRICAL Parts Diagram

  • Title

1

Dixon 532163465

REPL BY 532 12 38-99
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Dixon 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

8

Dixon 532186491

BOX.BATTERY.MOUNT.FRONT.LT

$

$

Not available

16

Dixon 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

21

Dixon 532175688

HARNESS.W/LIGHT SOCKET

$44.99

$

Usually ships in 3-10 days

0

22

Dixon 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

24

Dixon 532400253

CABLE.BATT.POS.WIRE.TG.DA SOL
(Superseded to 585555601)

$9.49

$

In Stock, only 2 left!

0

25

Dixon 532412894

CABLE.STARTER.6GA.BL/RED.14.

$15.99

$

Usually ships in 3-10 days

0

26

Dixon 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

27

Dixon 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

28

Dixon 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

29

Dixon 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

30

Dixon 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

In Stock, only 1 left!

0

33

Dixon 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

34

Dixon 532110712

SWITCH LT

$9.49

$

In Stock, only 4 left!

0

40

Dixon 532402167

HARNESS IGN. DASH

$133.99

$

Usually ships in 3-10 days

0

41

Dixon 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Dixon 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

45

Dixon 532434634

AMMETER.ROUND.SNAPIN

$136.99

$

Usually ships in 3-10 days

0

46

Dixon 532434635

HOURMETER.ROUND.SNAPIN
(Superseded to 587554002)

$

$

Not available

55

Dixon 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

71

Dixon 532194276

HARNESS-CHASSIS SUB

$40.99

$

Usually ships in 3-10 days

0

79

Dixon 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

90

Dixon 532400724

COVER.TERMINAL.BATTERY

$4.99

$

Usually ships in 3-10 days

0

91

Dixon 532190270

STRAP.BATTERY.MOUNT.FRONT

$9.99

$

In Stock, Qty 13

0

99

Dixon 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

100

Dixon 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

102

Dixon 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

105

Dixon 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0

50

Dixon 532174651

PTO SWITCH
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0
