D24KH54 (960460037-02) - Dixon 54" Lawn Tractor, 24hp Kohler (2013-08) SEAT Parts Diagram

54" Lawn Tractor, 24hp Kohler

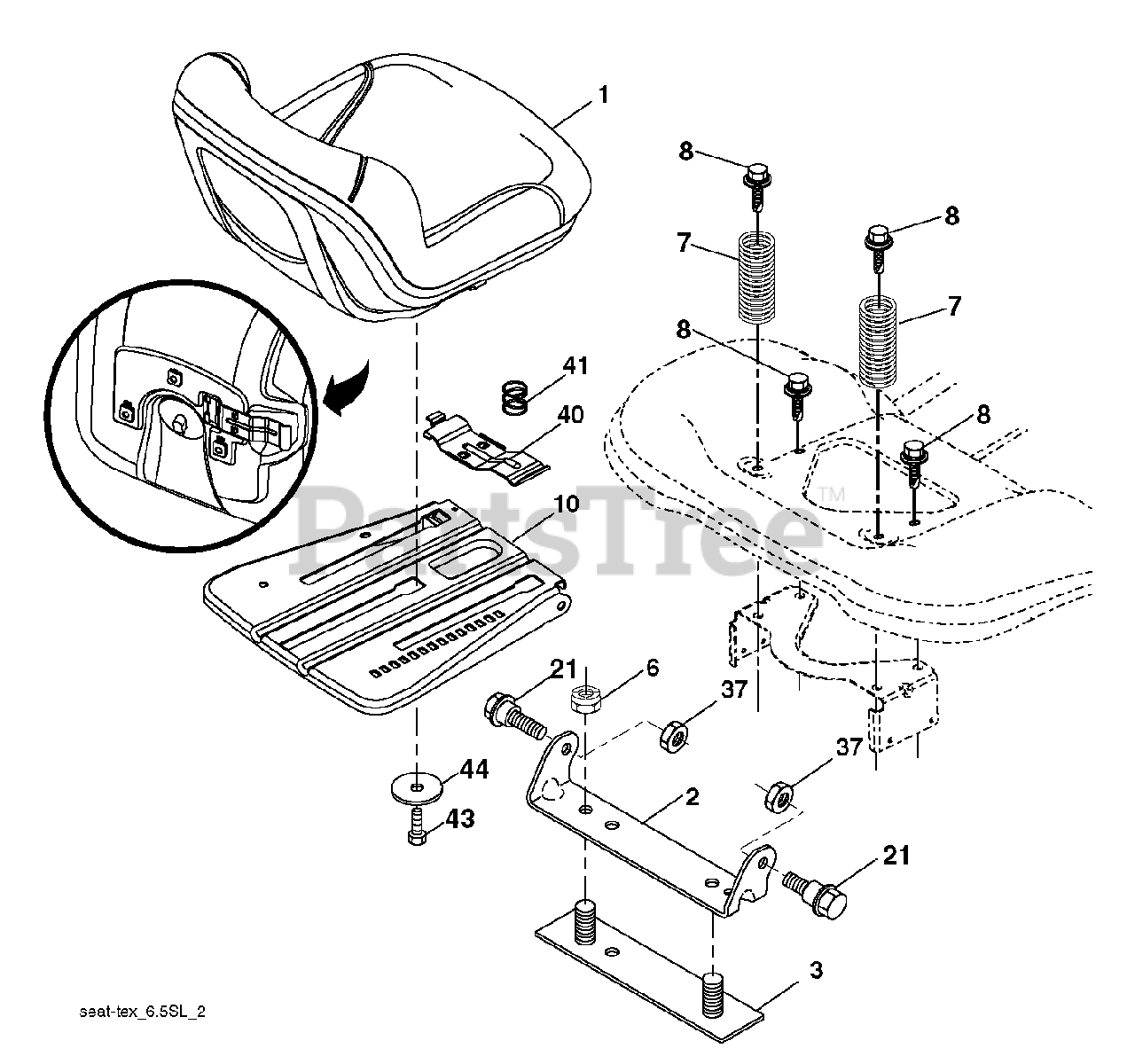

SEAT Parts Diagram

  • Title
1

Dixon 532431450

No Description Available
(Superseded to 588556601)

$

$

Not available

2

Dixon 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

3

$6.99

$

Usually ships in 3-10 days

0

6

Dixon 873800600

OBSOLETE - NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Dixon 532124181

OBSOLETE - SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Dixon 532171877

BOLT, 5/16-18 X 1 3/4

$7.49

$

In Stock, Qty 5

0

10

Dixon 532196977

PAN.ASM.SEAT.3PT
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

21

Dixon 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

37

Dixon 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

40

Dixon 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

41

Dixon 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

43

Dixon 874760612

OBSOLETE - BOLT

$4.99

$

In Stock, only 2 left!

0

44

Dixon 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available
