D22KH42 (960410183-02) - Dixon 42" Lawn Tractor, 22hp Kohler (2012-07) STEERING Parts Diagram

42" Lawn Tractor, 22hp Kohler

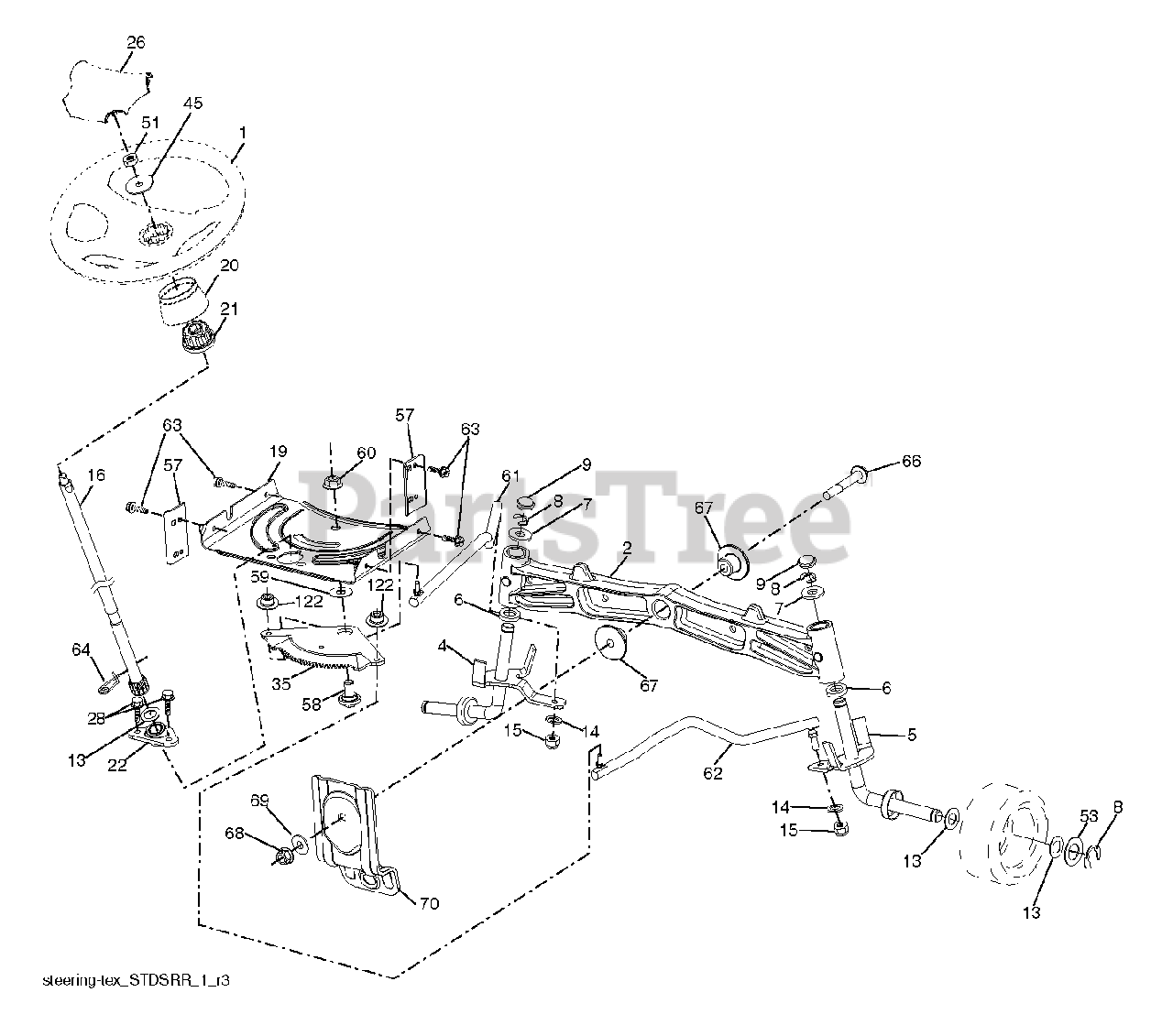

STEERING Parts Diagram

  • Title

1

Dixon 532424146

WHEEL, STEERING

$93.99

$

In Stock, only 1 left!

0

2

Dixon 532195968

OBSOLETE - AXLE.CAST.IRON
(Superseded to 532413591)

$145.99

$

In Stock, only 2 left!

0

4

Dixon 532403087

SPINDLE.WELDED.LH.15"T
(Superseded to 596873601)

$17.99

$

In Stock, Qty 12

0

5

Dixon 532403088

SPINDLE.WELDED.RH.15"T
(Superseded to 538691201)

$22.99

$

In Stock, only 2 left!

0

6

Dixon 532124931

BRNG T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

7

Dixon 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

8

Dixon 812000029

RING

$4.99

$

Usually ships in 3-10 days

0

9

Dixon 532121232

CAP

$4.99

$

In Stock, Qty 9

0

13

Dixon 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

14

Dixon 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 17

0

15

Dixon 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0

16

Dixon 532194746

No Description Available
(Superseded to 587738904)

$40.99

$

In Stock, Qty 14

0

19

Dixon 532194729

PLATE.STEER.DDL.NLT/NG

$18.99

$

Usually ships in 3-10 days

0

20

Dixon 532411425

BOOT.STEERING.

$6.49

$

Usually ships in 3-10 days

0

21

Dixon 532186737

ADAPTER, WHEEL STNG
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

22

Dixon 532420537

STEERING.SUPT.LOWER.
(Superseded to 587738901)

$17.99

$

In Stock, only 4 left!

0

26

Dixon 532424691

INSERT, WHEEL STEERING

$7.99

$

In Stock, only 1 left!

0

28

Dixon 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

35

Dixon 532194732

GEAR.SECTOR.PLATE.DDL.

$31.99

$

In Stock, Qty 20+

0

45

Dixon 819113812

WASHER

$6.49

$

Usually ships in 3-10 days

0

51

Dixon 873940800

NUT

$7.49

$

In Stock, only 4 left!

0

53

Dixon 532188967

WASHER

$4.99

$

In Stock, Qty 20+

0

57

Dixon 532407465

OBSOLETE - BRACKET UPSTOP

$6.99

$

In Stock, only 1 left!

0

58

Dixon 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, only 3 left!

0

59

Dixon 532194748

WASHER.THURST.SECTOR.S

$7.49

$

In Stock, only 3 left!

0

60

Dixon 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$7.49

$

In Stock, only 1 left!

0

61

Dixon 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047801)

$12.99

$

Usually ships in 3-10 days

0

62

Dixon 532194741

DRAGLINK.RH.BALLSTUD.D

$

$

Not available

63

Dixon 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

64

Dixon 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

66

Dixon 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$6.49

$

In Stock, only 4 left!

0

67

Dixon 532194737

BUSHING.PM.FRONT AXLE

$

$

Not available

68

Dixon 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 13

0

69

Dixon 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 1 left!

0

70

Dixon 532196197

BRKT.DECK.SUSPENSION.F
(Superseded to 585338801)

$9.99

$

Usually ships in 3-10 days

0

122

Dixon 532444962

No Description Available
(Superseded to 583576601)

$6.49

$

In Stock, Qty 6

0
